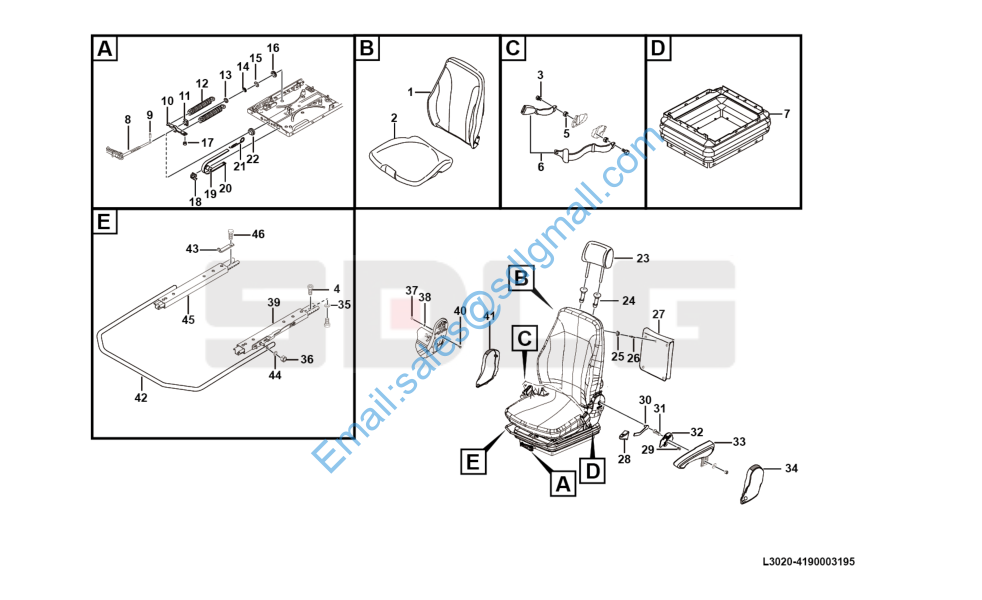

LG968N 座椅LG06A(350201) Driver seat L3020-4190003195

1 4190003195003 靠背缓冲2049326 Backrest N 1
2 4190003195004 座位缓冲2048597 Seat cushion N 1
3 4190003195005 螺栓113771 Screw N 2
4 4190003392040 螺栓122949 Screw Y 2
5 4190003195006 螺母115419 Nut N 2
6 4190003094 安全带（902210） Seatbelt Y 1
7 4190003392002 波纹套1175706 Bellows Y 1
8 4190003195007 调节杆1257471 Adjusting bar Y 1
9 4190003392004 销10151 Pin N 1
10 4190003392005 弹簧支架107652 Bracket N 1
11 4190003392006 螺母107752 Nut N 1
12 4190003392007 弹簧2048098 Spring N 2
13 4190003392008 垫圈107657 Washer N 1
14 4190003392009 限位块107656 Block N 1
15 4190003392010 垫圈107754 Washer N 1
16 4190003392011 垫圈107659 Washer N 1
17 4190003392012 调节塞107731 Plug N 1
18 4190003392013 盖104377 Cover N 1
19 4190003392014 滚轴107660 Roller N 1
20 4190003195008 支架2048699 Bracket N 1
21 4190003392016 弹簧108260 Spring N 1
22 4190003392017 轴衬117949 Bushing N 1
23 4190003195001 头枕1103658 Head restraint Y 1
24 4190003392018 轴衬138691 Bushing N 2
25 4190000165003 铆钉106408 Rivet N 5
26 4190000165002 铆钉135786 Rivet N 5
27 4190003392019 文件袋1281569 Bag N 1
28 4190003392020 调节手柄140694 Adjusting bar Y 1
29 4190003392021 螺栓136122 Screw N 3
30 4190003392022 支架140695 Bracket Y 1

31 4190003392023 螺栓1129786 Screw N 1
32 4190003392024 调节板1216288 Adjusting plate N 1
33 4190003195002 左扶手2048836 Arm rest Y 1
34 4190003392025 盖板2048884 Cover N 1
35 4190003392036 垫圈110489 Washer Y 5
36 4190003392037 螺母86601130 Nut N 2
37 4190003392028 帽1054166 Cap N 1
38 4190003392029 螺母86601322 Nut N 1
39 4190003392030 滑轨2048134 Slide rail Y 1
40 4190003392031 螺栓123052 Screw N 1
41 4190003392032 盖板2048885 Cover N 1
42 4190003392033 拉杆136614 Control rail N 1
43 4190003392034 支架135305 Bracket N 2
44 4190003392038 垫圈2048509 Washer N 2
45 4190003392035 滑轨2048135 Slide rail Y 1
46 4190003392039 螺栓122937 Screw N 6
