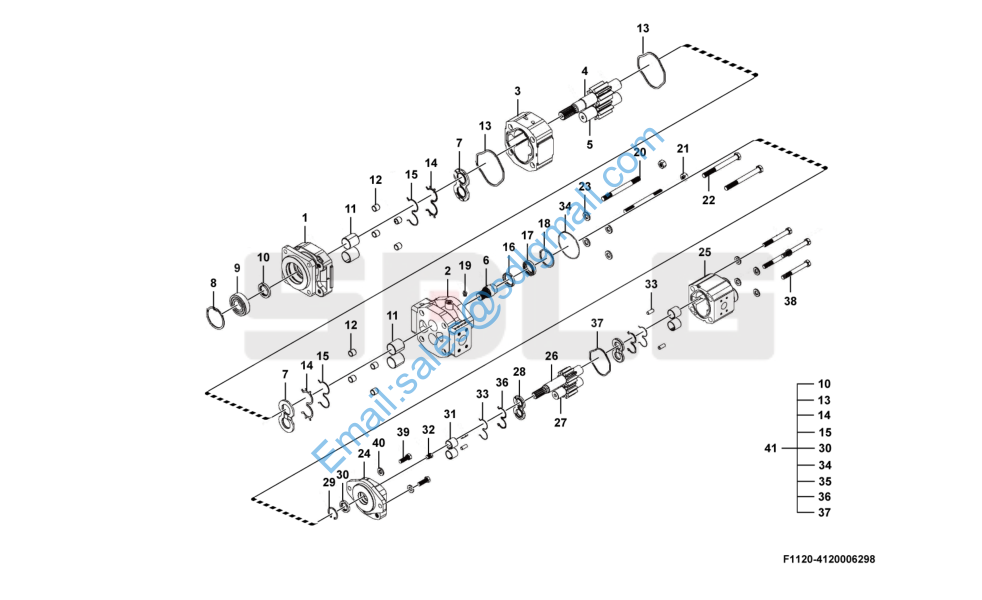

LG968N 工作泵总成(120104) Working hydraulic pump assembly F1120-4120006298

1 4120006298201 前盖574C-H0038 Cover N 1

2 4120006298202 后盖592-0143702B582 Cover N 1

3 4120006298203 一级泵体577C-H0028-25 Pump body N 1

4 4120006298204 一级主齿024-01394-25DR Drive shaft N 1

5 4120006298205 一级从齿996-01375-25ID Shaft N 1

6 4120006298206 接轴022-01438 Shaft N 1

7 4120006298235 侧板947-01377 Side board N 2

8 4120006298207 孔用弹性挡圈W85-315 Retaining ring N 1

9 4120005082211 外置轴承W58-48 Beaing N 1

10 4120001058204 油封W62-26-10 Sealing ring Y 1

11 4120006298208 滑动轴承921-01380 Plain bearing N 4

12 4120006298209 销套280-1971-062 Bushing N 8

13 4120006298210 方形密封圈TA-2995-250 Sealing ring N 2

14 4120006298211 E形密封圈947-01378 Sealing ring N 2

15 4120006298212 E形挡圈947-01379 Retaining ring N 2

16 4120004423210 油封W62-26-17 Sealing ring Y 1

17 4120006298213 外置轴承921-01281 Bearing N 1

18 4120006298214 孔用弹性挡圈565C-00013 Retaining ring N 1

19 4120006298215 堵塞565-01194 Plug N 1

20 4120006298216 双头螺柱ZD-0391-7 Stud N 2

21 4120004423216 螺母W3-65 Nut N 2

22 4120006298217 螺栓W1-093 Screw N 2

23 4120005082221 垫圈W033-2 Washer N 8

24 4120006298218 前盖162A0004 Cover N 1

25 4120006298219 B类泵体162B0110 Pump body N 1

26 4120006298220 二级主齿162F0043 Drive shaft N 1

27 4120006298221 二级从齿162G0019 Shaft N 1

28 4120006298222 侧板162J001 Side board N 2

29 4120006298223 孔用弹性挡圈007A0006 Retaining ring N 1

30 4120006298224 油封W62-26-18 Sealing ring N 1

31 4120006298225 滑动轴承002B0001 Plain bearing N 4

32 4120005082214 堵油螺钉S-0280 Screw N 1

33 4120006298226 圆柱销008A0001 Pin N 2

34 4120006298227 O形密封圈001E0009 O-ring N 1

35 4120006298228 E形密封圈006E0002 Sealing ring N 2

36 4120006298229 E形挡圈007E0001 Retaining ring N 2

37 4120006298230 O形密封圈2995C-00003 O-ring N 1

38 4120006298231 螺栓001A0008 Screw N 4

39 4120006298232 螺栓W1-29 Screw N 2

40 4120006298233 垫圈W2-0 Washer N 2

41 4120006298234 密封件包 Sealing ring kit Y 1
