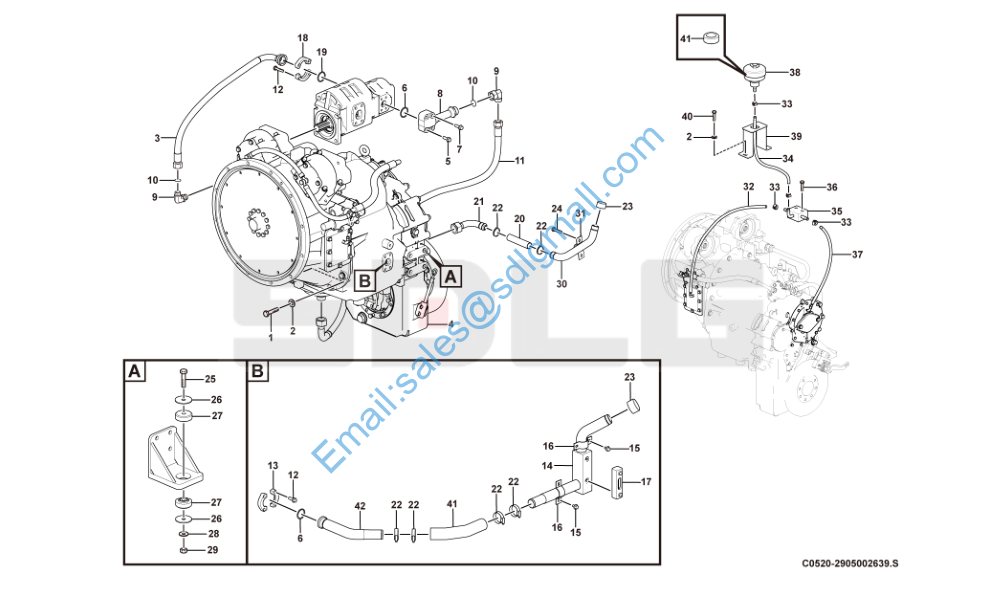

LG968N 变速箱总成 Transmission assembly C0520-2905002639

1 4011000184 螺栓GB5783-M10*40EpZn-8.8 Bolt Y 12

2 4015000162 垫圈GB97.1-10EpZn-300HV Washer Y 14

3 29050026221 变速泵出油管 Hose assembly Y 1

4 29050021702 VRT200变速箱总成 Transmission N 1

5 4011000163 螺栓GB16674-M10*40EpZn-8.8 Bolt Y 2

6 4030000029 O形圈GB3452.1-37.5*3.55G O-ring Y 2

7 4011000307 螺栓GB16674-M10*45EpZn-8.8 Bolt Y 2

8 29050026421 弯管总成 Tube Y 1

9 4041001211 组合接头LGB143-03625 Nipple Y 2

10 4030000817 O形圈GB3452.1-25.8*1.80G-FPM O-ring Y 2

11 29050021251 变速泵进油管 Hose Y 1

12 4011000475 螺栓GB16674-M10*30EpZn-8.8 Bolt Y 8

13 4041000056 分体法兰LGB117-312550 Flange half Y 1

14 29050021941 加油管总成 Hose assembly N 1

15 4011000461 螺栓GB16674-M8*16EpZn-8.8 Bolt Y 4

16 29050000091 管夹 Clamp Y 2

17 4120005173 液位计YWZ-100 Water level gauge Y 1

18 4041000043 分体法兰LGB117-310490 Flange half Y 1

19 4030000026 O形圈GB3452.1-32.5*3.55G O-ring Y 1

20 4030001056 胶管JB8406-B38*100 Hose Y 1

21 29050019951 分动箱加油管 Oil pipe Y 1

22 4017000007 喉箍JB8870-d60 Clamp Y 2

23 29050000261 加油管盖 Oil filler cap Y 1

24 4011000137 螺栓GB16674-M12*20EpZn-8.8 Bolt Y 2

25 4011000378 螺栓GB5785-M24*2*160EpZn-8.8 Bolt Y 2

26 29050019331 垫圈 Washer Y 4

27 4110001527 减震器CBB114 Absorber Y 4

28 4015000167 垫圈GB97.1-24EpZn-300HV Washer Y 2

29 4013000157 螺母GB889.2-M24*2EpZn-8 Lock nut Y 2

30 29050019931 钢管 Pipe Y 1

31 4041001562 管夹LGB122-4280 Clamp Y 1

32 4030000973 胶管JB8406-B10*300 Hose Y 1

33 4190000343 喉箍JB8870-d16 Clamp Y 6

34 4030000974 胶管JB8406-B10*1900 Hose Y 1

35 29050017381 三通块总成 Connection block Y 1

36 4011000309 螺栓GB16674-M10*50EpZn-8.8 Bolt Y 2

37 4120000388 胶管JB8406-B10*800 Hose assembly Y 1

38 4110000852 空气滤清器C-M33×2 Air cleaner Y 1

39 29050017341 空气滤清器支架 Bracket Y 1

40 4011000081 螺栓GB5783-M10*20EpZn-8.8 Bolt Y 2

41 4120005390 空滤滤芯C-X-32 Filter insert Y 1
