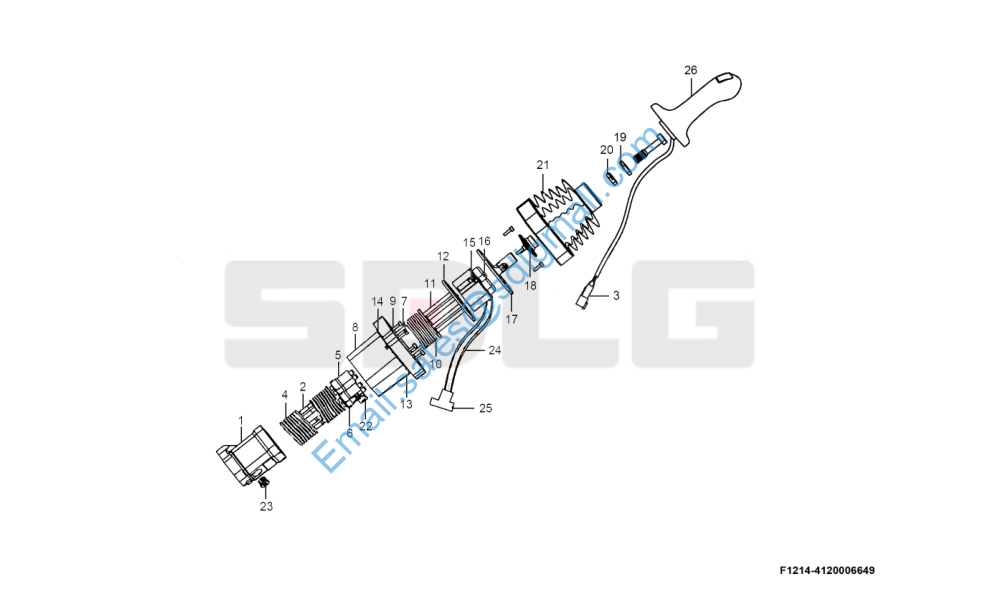

LG968N 先导阀总成(310004) Control lever assembly F1214-4120006649

1 4120003693001 阀体CL91224032-04 Valve body N 1

2 4120003693002 阀杆总成CL3619100185 Valve rod N 4

3 4120003693003 连接器总成CN221400011 Tool N 1

4 4120003693004 弹簧CL91283768 Spring N 4

5 4120003693005 柱塞总成CL3619100175 Piston N 3

6 4120003693006 柱塞总成CL3619100174 Piston N 1

7 4120003693007 螺杆CL3961401022 Screw rod N 2

8 4120003693008 上阀体CL3613100901 Valve body N 1

9 4120003693009 螺栓CL3961401023 Screw N 8

10 4120003693010 弹簧CL3963582027 Spring N 4

11 4120003693011 顶杆总成CL3619100176 Control lever N 4

12 4120003693012 线圈盖板CL3962183023 Plate N 1

13 4120003693013 螺线管线圈用锁环CL3961203015 Lock ring N 3

14 4120003693014 手柄电线用锁环CL3961203014 Lock ring N 1

15 4120003693015 线圈总成CL3619100181 Coil N 3

16 4120003693016 空螺线管总成CL3619100178 Solenoid N 1

17 4120003693017 U 型接头总成CL3619100179 Nipple N 1

18 4120003693018 压盘CL3962183027 Plate N 1

19 4120003693019 螺母M20CL91247986 Nut N 1

20 4120003693020 螺母CL91257729 Nut N 1

21 4120003693021 保护套CL3964041014 Protecting casing N 1

22 4120003693022 标牌CN221200047 Name plate N 1

23 4120003693023 螺堵VST14X1.5ORCF Plug Y 1

24 4120003693024 透明PVC管CL3914101193 Hose N 3

25 4120003693025 连接器总成CL3619100170 Tool N 1

26 4120003693026 手柄总成CL9121717994 Handle N 1
