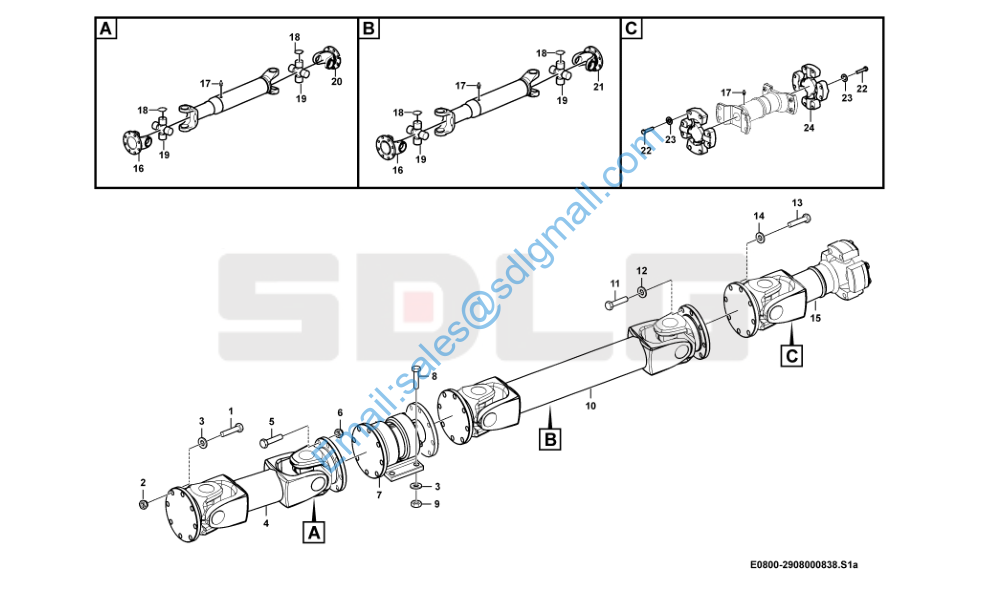

LG968N 传动轴总成 Propeller shaft assembly E0800-2908000838

1 4011000701 螺栓GB5786-M14*1.5*45EpZn-10.9 Bolt Y 8

2 4013000148 螺母GB889.2-M14*1.5EpZn-10 Lock nut Y 8

3 4015000177 垫圈GB97.1-14EpZn-300HV Washer Y 12

4 4110002097 前传动轴CDZP-702 Propeller shaft Y 1

5 4011000568 螺栓GB5786-M12*1.25*40EpZn-10.9 Bolt Y 16

6 4013000072 螺母GB889.2-M12*1.25EpZn-10 Lock nut Y 16

7 4110000487 中间支承 Bearing Y 1

8 4011000341 螺栓GB5785-M14*1.5*60EpZn-8.8 Screw Y 4

9 4013000073 螺母GB889.2-M14*1.5EpZn-8 Lock nut Y 4

10 4110001757 中间传动轴CDZP-722 Propeller shaft Y 1

11 4011000957 螺栓GB5786-M14*1.5*35EpZn-10.9 Screw Y 8

12 4015000358 垫圈GB1230-14EpZn-45 Plain washer Y 8

13 4011000431 螺栓GB5785-M12*1.25*50EpZn-8.8 Bolt Y 8

14 4015000168 垫圈GB97.1-12EpZn-300HV Washer Y 8

15 29080000021 前传动轴 Propeller shaft Y 1

16 4110002066001 突缘叉1491.707-2201062-I Link yoke Y 2

17 4110002086003 油杯M6 JB/T7940.1-1995 Grease cup N 3

18 4110002515002 卡簧1491.707-2201063 Lock ring Y 16

19 4110002097001 万向节十字轴0125-52133 Spider N 4

20 4110002329001 突缘叉1491.707-2201062-A20 Link yoke Y 1

21 4110000850001 突缘叉1491.707-2201062-A30 Link yoke Y 1

22 4110001950008 螺栓 1/2″20UNF Screw Y 16

23 4120001054234 垫圈GB93-87 12 Washer Y 16

24 2908000753001 万向节十字轴总成G5-7126 Spider Y 2
