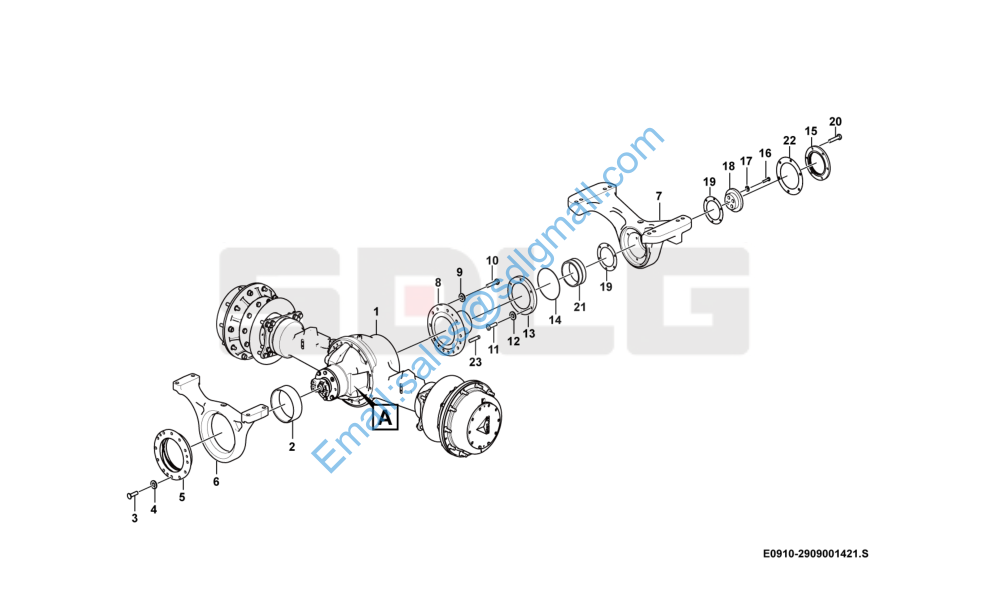

L959F ZFAP-409/DK摆动型驱动桥总成 Rear axle E0910-2909001421

1 4110000045 后桥ZFAP-409/DK Rear axle Y 1

2 29090007601 套 Sleeve Y 1

3 4011001323 螺栓GB5785-M16*1.5*50flZnyc-8.8-480 Screw Y 12

4 29070009511 垫圈 Washer Y 12

5 29090007572 衬套 Sleeve Y 1

6 29090100051 前摆动支架 Bracket Y 1

7 29090100061 后摆动支架 Bracket Y 1

8 29090007591 支承轴 Support shaft Y 1

9 4011001413 螺栓GB5782-M14*50flZnyc-10.9-480 Bolt Y 14

10 29090007961 垫圈 Washer Y 14

11 4011001243 螺栓GB5783-M12*35flZnyc-8.8-480 Screw Y 6

12 29070010131 垫圈 Washer Y 6

13 29090000101 密封盖 Sealing cover Y 1

14 4030000021 O形圈GB3452.1-160*5.30G O-ring Y 1

15 29090000141 端盖 End plate Y 1

16 4011000113 螺栓GB5785-M20*1.5*90EpZn-8.8 Bolt Y 4

17 29070011121 垫圈 Washer Y 4

18 29090000131 垫块 Block Y 1

19 29090000121 衬垫 Shim Y 2

20 4011001317 螺栓GB5782-M12*50flZnyc-8.8-480 Screw Y 6

21 29090000112 轴套 Sleeve Y 1

22 29090000161 垫片 Shim Y 1

23 4016000065 销GB119.2-18*50 Pin Y 2
