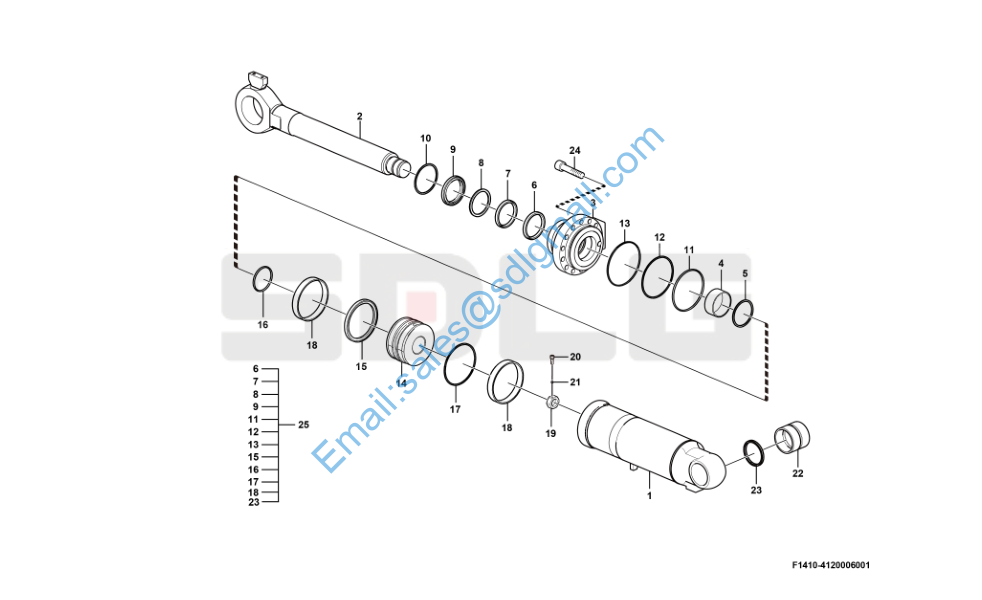

L959F 转斗油缸(3731CH) Tilt cylinder F1410-4120006001

1 4120006001001 缸筒总成24A139180 Cylinder tube Y 1

2 4120006001002 活塞杆总成24A114190 Piston rod Y 1

3 4120006001003 缸盖24C101200 Cover Y 1

4 4120006001004 衬套24S2A5601 Bushing Y 1

5 4120006001005 钢丝挡圈-孔用24C090250 Retaining ring Y 1

6 4120006001006 密封件-缓冲24H010504 Sealing ring N 1

7 4120006001007 密封件-活塞杆24F210503 Sealing ring N 1

8 4120006001008 挡圈-U形圈24E010515 Retaining ring N 1

9 4120006001009 密封件-防尘24D210502 Sealing ring N 1

10 4120006560009 钢丝挡圈-孔用24C090280 Retaining ring Y 1

11 4120006001010 O形圈24K11900A O-ring N 1

12 4120006001011 挡圈-O形圈24M12000D O-ring N 1

13 4120006001012 O形圈 24K320001 O-ring N 1

14 4120006001013 活塞24C102140 Piston Y 1

15 4120006001014 密封件-活塞24P220002 Sealing ring N 1

16 4120006001015 O形圈 24K11050A O-ring N 1

17 4120006001016 挡圈-O形圈24M11100D O-ring N 1

18 4120006001017 支承环24G220027 Sealing ring N 2

19 4120006001018 活塞背母24C103080 Nut Y 1

20 4120006560007 螺钉-内六角凹端紧定24T910161 Screw Y 1

21 4120006560006 钢球24U006501 Ball N 1

22 4120006001019 轴套24C116140 Bushing Y 1

23 4120006001020 销边防尘24R308030 Sealing ring N 2

24 4120005997017 螺钉-内六角圆柱头 24T522905 Screw Y 12

25 4120006001021 密封件包24A103160S Sealing kit Y 1
