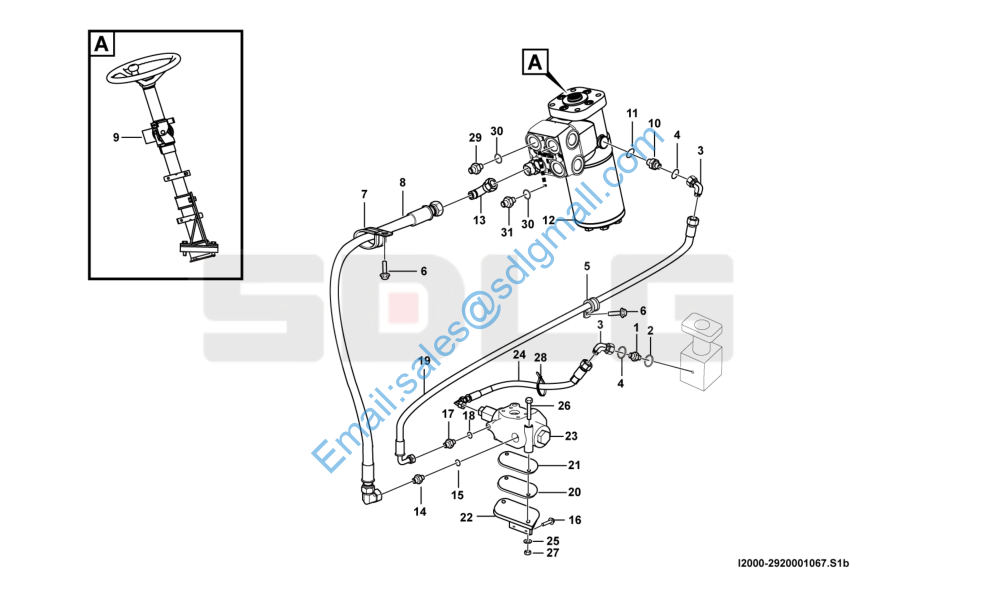

L959F 转向器总成 Steering gear system I2000-2920001067

1 4041000133 直接头LGB120-01414 Nipple Y 1

2 4041000767 O形圈LGB168-11124 O-ring Y 1

3 4041001047 组合接头LGB143-01406 Nipple Y 2

4 4030000530 O形圈GB3452.1-6.00*1.80G O-ring Y 2

5 26370001921 管夹 Clamp N 1

6 4011001302 螺栓GB16674.1-M10*16flZnyc-8.8-480 Screw Y 2

7 26370002941 管夹30*40 Clamp Y 1

8 4041000989 软管LGB128-410140 Hose assembly Y 1

9 29200010591 转向柱总成 Steering column N 1

10 4041000131 直接头LGB120-01412 Nipple Y 1

11 4041000784 O形圈LGB168-10924 O-ring Y 1

12 4120005052 转向器BZZ6-1000 Control valve Y 1

13 29200010171 组合接头M26-20° Elbow nipple Y 2

14 4041000088 直接头LGB155-23326 Nipple Y 1

15 4030000276 O形圈GB3452.1-32.5*2.65G O-ring Y 1

16 4011001299 螺栓GB16674.1-M10*25flZnyc-8.8-480 Screw Y 2

17 4041000084 直接头LGB155-01214 Nipple Y 2

18 4030000285 O形圈GB3452.1-12.5*2.65G O-ring Y 2

19 4041001949 软管LGB128-403135 Hose assembly Y 1

20 29200009871 橡胶板 Rubber plate Y 1

21 29200009981 板 Plate Y 1

22 29200010241 板 Plate Y 1

23 4120005054 优先阀VLH-240S-16 Priority valve Y 1

24 4041001290 软管LGB125-003110 Hose assembly Y 1

25 4015000428 垫圈GB97.1-12flZnyc-300HV-480 Washer Y 2

26 4011001335 螺栓GB5782-M12*130flZnyc-8.8-480 Screw Y 2

27 4013000368 螺母GB6170-M12flZnyc-8-480 Nut Y 4

28 4190000019 扎丝LG13-ZS3*150 Cable tie Y 4

29 4041000564 直接头LGB120-02620 Nipple Y 2

30 4041000783 O形圈LGB168-11724 O-ring Y 4

31 4041000132 直接头LGB120-02220 Nipple Y 2
