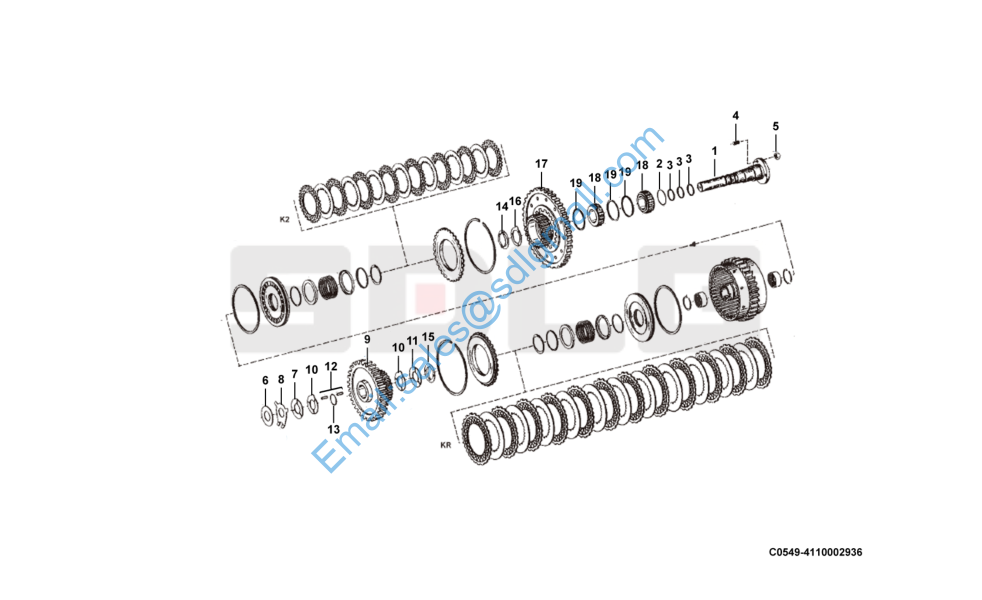

L959F 离合器KR+K2 Clutch C0549-4110002936

1 7200001575 轴4644352062 Shaft Y 1
2 7200001533 O形圈(49*3)0634313536 O-ring Y 1
3 7200001534 活塞环0734401106 Piston ring Y 3
4 7200001674 螺柱0636610014 Stud Y 2
5 7200001675 六角螺母(M8)0637006018 Nut Y 2
6 4110003064010 调整垫4644 298 491 Tab washer N 1
7 7200001539 止推垫圈0730150759 Thrust washer Y 1
8 7200001540 止推垫圈4644303529 Thrust washer Y 1
9 7200001583 齿轮(Z=63)4644308625 Gear Y 1
10 7200001542 止推垫圈4644308265 Thrust washer Y 2
11 7200001543 止推垫圈0730150773 Thrust washer Y 1
12 7200001544 滚柱轴承组件0750119100 Bearing Y 1
13 7200001545 垫圈4644308266 Washer Y 1
14 7200001549 止推垫圈4644351094 Thrust washer Y 1
15 7200001550 止推垫圈4642308555 Thrust washer Y 1
16 7200001561 止推垫圈0730150779 Thrust washer Y 1
17 4110000042011 齿轮4644 252 097 Gear Y 1
18 7200001606 球轴承0750115211 Ball bearing Y 1
19 7200001566 角环0501308830 Spacer Y 3
