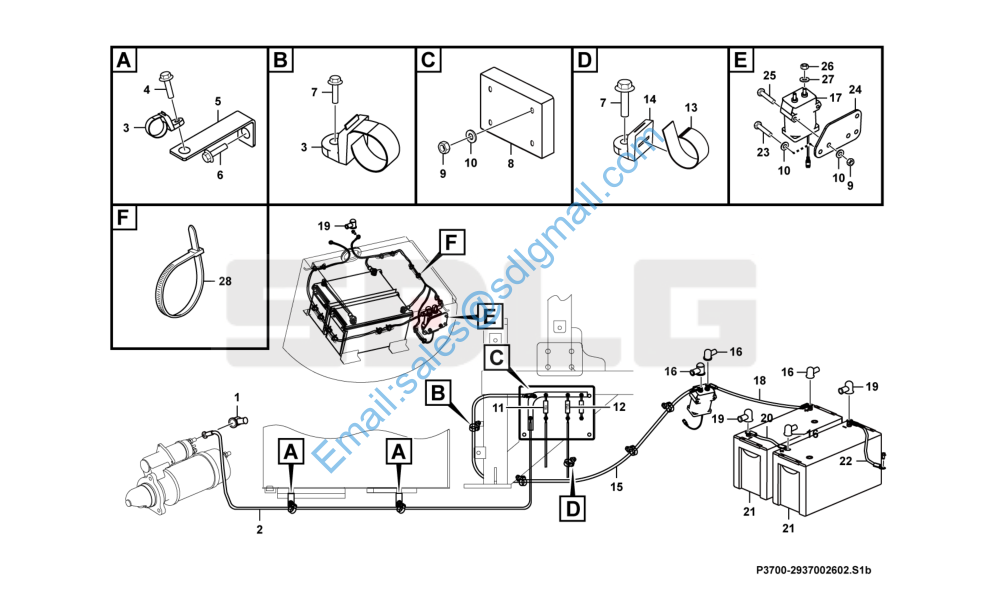

L959F 电源电气总成 Power electric system P3700-2937002602
L959F 电源电气总成 Power electric system P3700-2937002602

1 11219857 绝缘帽 Cable sleeve Y 1
2 29370026101 UL电瓶线A50*1400 Battery cable Y 1
3 14400342 扎带 Strip clamp Y 3
4 4011001294 螺栓GB16674.1-M10*20flZnyc-8.8-480 Screw Y 2
5 26370001072 支架 Bracket Y 2
6 4011001313 螺栓GB16674.1-M8*12flZnyc-8.8-480 Screw Y 2
7 4011001297 螺栓GB16674.1-M8*16flZnyc-8.8-480 Screw Y 2
8 11219856 保险盒 Fuse box Y 1
9 4013000373 螺母GB6170-M8flZnyc-8-480 Nut Y 6
10 4015000430 垫圈GB97.1-8flZnyc-300HV-480 Washer Y 9
11 4130002396 保险片 MEGA80A(UL) Fuse Y 1
12 4130002397 保险片 MEGA175A (UL) Fuse Y 1
13 14400341 扎带 Strip clamp Y 1
14 14400340 扎带座 Strip clamp Y 1
15 29370026651 UL电瓶线P70*4000 Battery cable Y 1
16 26370002451 红电瓶线护套 Cable sleeve Y 4
17 11220338 主开关 Main switch Y 1
18 29370026081 电瓶线P70*600 Battery cable Y 1
19 26370002441 黑电瓶线护套 Cable sleeve Y 3
20 29370026111 UL电瓶线P70*300 Battery cable Y 1
21 4130000057 蓄电池6-QW-120B Wet battery N 2
22 29370026621 UL电瓶线P70*1000 Battery cable Y 1
23 4011001247 螺栓GB5783-M8*20flZnyc-8.8-480 Screw Y 3
24 29370026051 固定板 Bracket Y 1
25 4011001344 螺栓GB5783-M8*60flZnyc-8.8-480 Screw Y 2
26 4013000370 螺母GB6170-M10flZnyc-8-480 Nut Y 2
27 4015000433 垫圈GB97.1-10flZnyc-300HV-480 Washer Y 2
28 4190001839 扎丝LG13-ZS4*160 Cable tie Y 16
