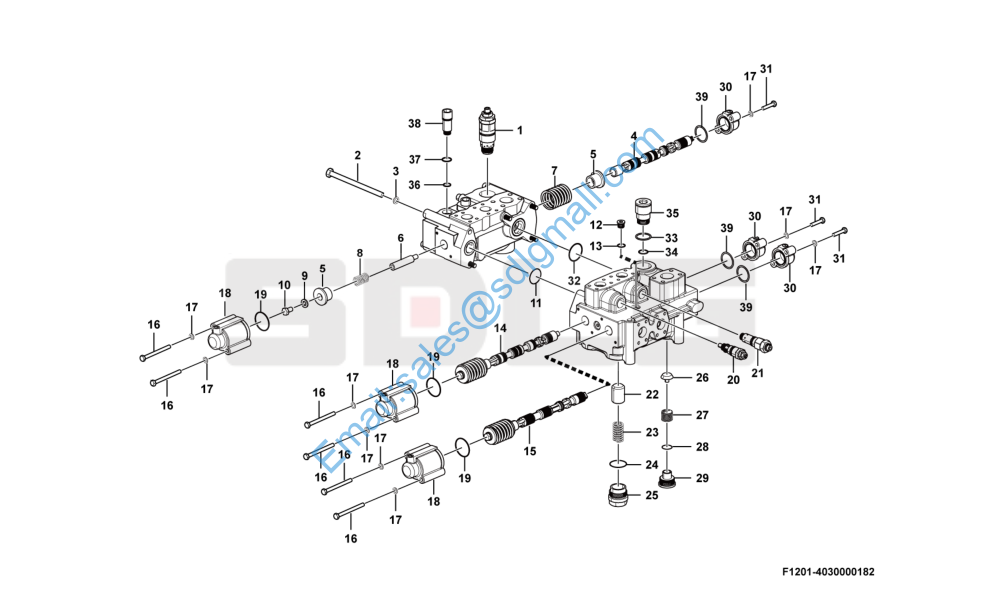

L959F 多路阀(331005) Control valve assembly F1201-4030000182

1 4120000413008 安全阀XDY32G01-00A-18 Valve N 1

2 4120001054231 螺栓D32A-21 Screw Y 5

3 4120001054234 垫圈GB93-87 12 Washer Y 5

4 4120001054224 辅助阀杆D32A-11a-00 Valve rod Y 1

5 4120001054214 弹簧座D32-6 Spring seat Y 6

6 4120005199015 阀杆接头D32-21 Joint Y 3

7 4120001054215 弹簧D32-7 Spring Y 3

8 4120001054216 弹簧D32-8 Spring Y 3

9 4015000313 垫圈GB97.1-12-300HV Washer Y 3

10 4120005199017 螺栓M12×20 GB30-76 Screw Y 3

11 4120001054232 O型圈GB1235-76 45X3.1 O-ring Y 1

12 4120001054222 螺塞D32-3 Plug Y 6

13 4030000011 O形圈GB1235-20*2.4 O-ring Y 6

14 4120001054221 转斗阀杆D32-12W-00 Valve rod Y 1

15 4120001054213 动臂阀杆D32-2W-00 Valve rod Y 1

16 4011000933 螺栓GB5782-M10*100-8.8 Screw Y 6

17 4015000322 垫圈GB97.1-10-300HV Washer N 12

18 4120001054219 端盖D32-5 Valve cover Y 3

19 4030000638 O形圈GB1235-60*3.1 O-ring Y 3

20 4120001133028 低压过载阀Y20G01-00A-12 Valve Y 1

21 4120002059003 高压过载阀D32A.1-00b-20 Valve Y 1

22 4120001054016 补油阀D32-15 Valve Y 1

23 4120001054209 弹簧D32-14 Spring Y 1

24 4030000760 O形圈GB1235-50*3.1 O-ring Y 1

25 4120001054207 补油阀盖D32-13 Valve cover Y 1

26 4120001054203 单向阀D32-17 Check valve Y 4

27 4120001054204 弹簧D32-16 Spring Y 4

28 4030000706 O形圈GB1235-44*3.5 O-ring Y 4

29 4120001054206 单向阀盖D32-19 Valve cover Y 4

30 4120001054238 端盖D32-1W Valve cover Y 3

31 2835000007030 螺栓M10*25(GB5782) Screw Y 6

32 4030000707 O形圈GB1235-55*3.1 O-ring Y 1

33 4030000149 O形圈GB1235-35*3.5 O-ring Y 1

34 4120001054232 O型圈GB1235-76 45X3.1 O-ring Y 1

35 4120001054226 堵头D32A-20 Plug Y 1

36 4030000012 O形圈GB1235-22*2.4 O-ring Y 2

37 4030000981 O形圈GB1235-28*3.1 O-ring Y 2

38 4120001054229 堵头D32A-23 Plug Y 2

39 4120001054237 O型圈GB1235-76 50X3.5 O-ring Y 3
