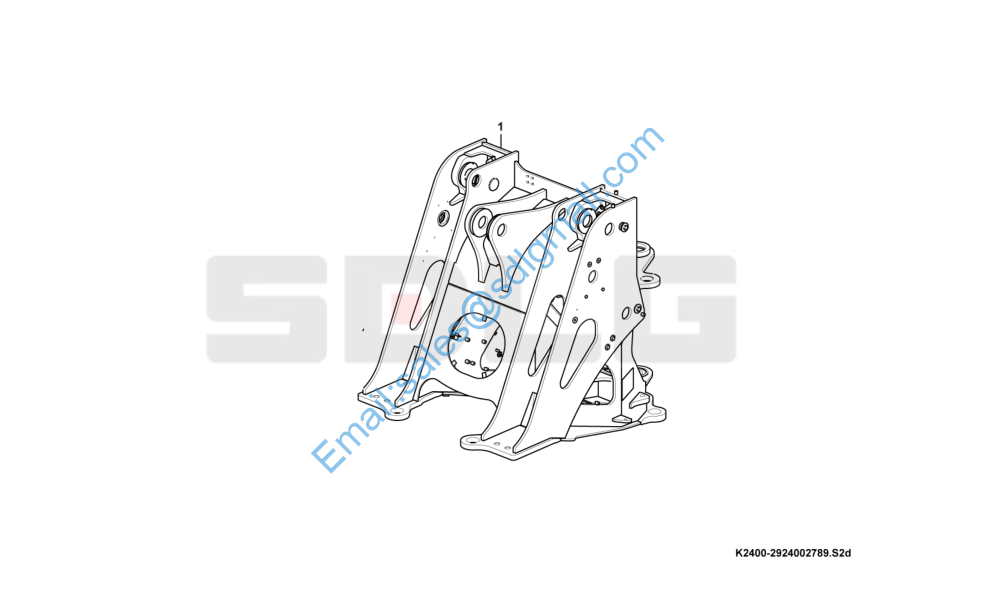

L959F 前车架 Front frame system K2400-2924002789

1 29240027893 前车架 Front frame Y 1

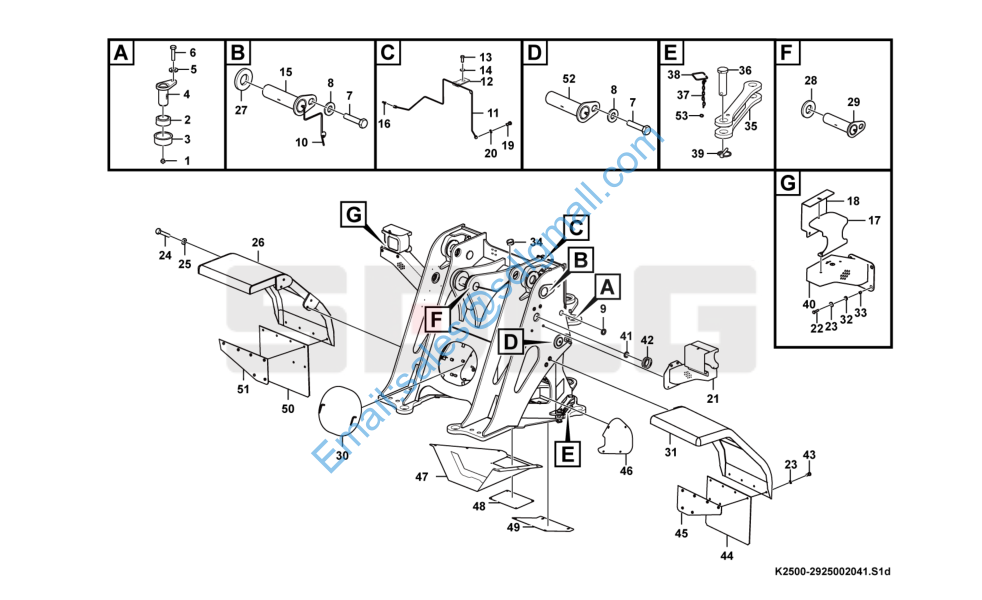

前车架附件 Accessories K2500-2925002041

1 4030000065 油杯JB7940.1-M10*1 Lubricating nipple Y 7

2 4021000199 轴承GB9163-GE40ES Spherical plain bearing Y 2

3 29250010191 转向轴套 Sleeve Y 2

4 29250010171 转向销轴 Pin Y 2

5 4015000428 垫圈GB97.1-12flZnyc-300HV-480 Washer Y 2

6 4011001241 螺栓GB5783-M12*25flZnyc-8.8-480 Screw Y 12

7 4011001261 螺栓GB5783-M16*30flZnyc-8.8-480 Screw Y 5

8 4040000051 垫圈LGB001-16flZnyc-480 Washer Y 5

9 29250007841 走线胶套 Rubber sleeve Y 2

10 29250014081 动臂销轴润滑油管 Lubricating pipe Y 2

11 29250014701 转斗销轴润滑油管 Lubricating pipe Y 1

12 29250010261 压板 Plate Y 2

13 4011001247 螺栓GB5783-M8*20flZnyc-8.8-480 Screw Y 23

14 4015000425 垫圈GB96.1-8flZnyc-300HV-480 Washer Y 23

15 4043003983 销轴LGB301-95*170N*320-2200G Weld pin Y 2

16 29250014121 接头 Nipple Y 3

17 29250012661 照灯护板 Protecting plate Y 2

18 29250011021 照灯网板 Protecting plate Y 2

19 29250000291 通油螺栓 Bolt Y 3

20 29250000301 垫片 Shim Y 9

21 29250018221 左灯架 Lamp bracket Y 1

22 4011001280 螺栓GB5783-M10*40flZnyc-8.8-480 Screw Y 8

23 4015000426 垫圈GB96.1-10flZnyc-300HV-480 Washer Y 20

24 4011001243 螺栓GB5783-M12*35flZnyc-8.8-480 Screw Y 8

25 4015000427 垫圈GB96.1-12flZnyc-300HV-480 Washer Y 18

26 29250013241 挡泥瓦 Front fender N 1

27 4043000516 垫片LGB303-80*160*1 Shim Y 4

28 4043000533 垫片LGB303-80*180*1 Shim Y 2

29 4043001455 销轴LGB301-80*140NR*260-1000G Weld pin Y 1

30 29250010281 前盖板总成 Cover plate Y 1

31 29250013221 挡泥瓦 Front fender N 1
32 11220538 减震垫 Damper mat Y 16
33 11220539 钢管 Steel pipe Y 8
34 29250013711 走线胶套 Rubber sleeve Y 1
35 29250010091 锁定杆 Rod Y 1
36 29250010121 锁定销轴 Pin Y 2
37 29250020601 链条 Chain Y 1
38 29280010021 挂钩 Tensioning hook Y 1
39 29270000081 卡环 Lock ring Y 2
40 29250018241 右灯架 Lamp bracket Y 1
41 29250012911 走线胶套 Rubber sleeve Y 2
42 29250013211 走线胶套 Rubber sleeve Y 2
43 4011001248 螺栓GB5783-M1025flZnyc-8.8-480 Screw Y 12 44 29250017361 橡胶板 Plate Y 1 45 29250013231 衬板 Nut plate Y 1 46 29250016071 侧盖板 Cover plate Y 2 47 29250016091 护板 Protecting plate Y 1 48 29250016101 盖板 Cover plate Y 1 49 29250016081 盖板 Cover plate Y 1 50 29250017371 橡胶板 Plate Y 1 51 29250013251 衬板 Nut plate Y 1 52 4043002663 销轴LGB301-80170*320-2A10G Weld pin Y 2
53 29250020611 链条环 Ring Y 2
