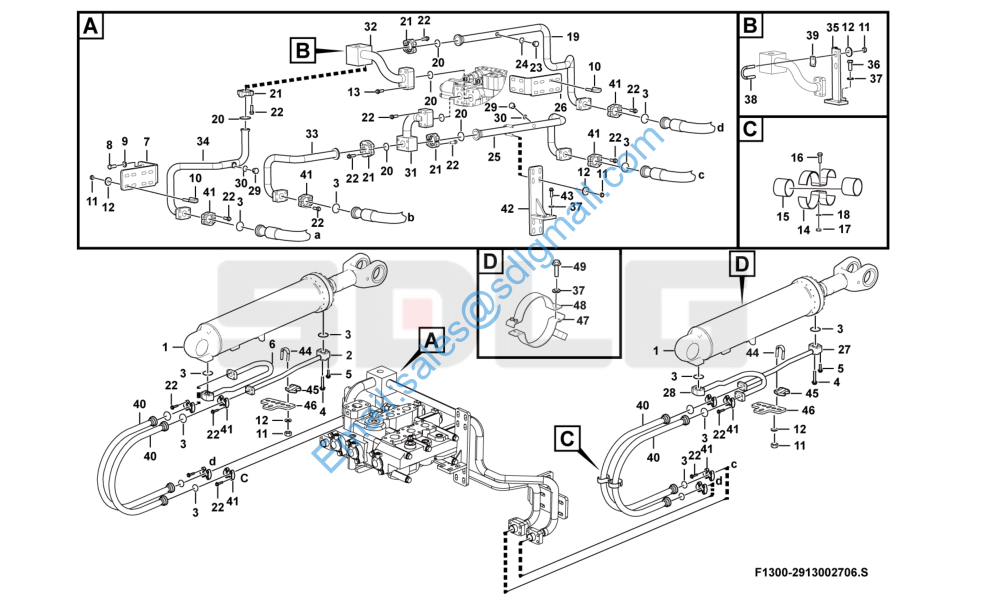

L959F 举升缸总成 Lifting cylinder system F1300-2913002706

1 4120005999 动臂油缸HSGF-170*90*757-1378 Boom cylinder N 2

2 29130021771 左动臂缸小腔钢管 Pipe Y 1

3 4030000026 O形圈GB3452.1-32.5*3.55G O-ring Y 12

4 4011001298 螺栓GB16674.1-M10*55flZnyc-8.8-480 Screw Y 10

5 4011001288 螺栓GB16674.1-M10*50flZnyc-8.8-480 Screw Y 10

6 29130013671 左动臂缸大腔钢管 Pipe Y 1

7 29130016191 左支架 Bracket Y 1

8 4011001250 螺栓GB5783-M12*30flZnyc-8.8-480 Screw Y 8

9 4015000428 垫圈GB97.1-12flZnyc-300HV-480 Washer Y 8

10 4041000958 U形螺栓LGB159-03040 U-bolt Y 12

11 4013000370 螺母GB6170-M10flZnyc-8-480 Nut Y 38

12 4015000426 垫圈GB96.1-10flZnyc-300HV-480 Washer Y 38

13 4014000525 螺钉GB70.1-M10*30flZnyc-8.8-480 Screw Y 4

14 29130010821 管夹 Clamp Y 4

15 4041000869 缓冲套LGB123-0740 Rubber sleeve Y 4

16 4011001296 螺栓GB16674.1-M8*20flZnyc-8.8-480 Screw Y 2

17 4013000373 螺母GB6170-M8flZnyc-8-480 Nut Y 2

18 4015000430 垫圈GB97.1-8flZnyc-300HV-480 Washer Y 2

19 29130019561 至右动臂缸大腔钢管 Pipe Y 1

20 4030000029 O形圈GB3452.1-37.5*3.55G O-ring Y 6

21 4041000056 分体法兰LGB117-312550 Flange half Y 4

22 4011001300 螺栓GB16674.1-M10*30flZnyc-8.8-480 Screw Y 48

23 4041000774 螺塞LGB135-01422 Plug Y 1

24 4041000767 O形圈LGB168-11124 O-ring Y 1

25 29130019581 至右动臂缸小腔钢管 Pipe Y 1

26 29130016211 右支架 Bracket Y 1

27 29130021711 右动臂缸小腔钢管 Pipe Y 1

28 29130013751 右动臂缸大腔钢管 Pipe Y 1

29 4041000680 堵塞LGB142-03016 Plug Y 2

30 4030000241 O形圈GB3452.1-20.0*1.80G O-ring Y 2

31 29130016061 阀至小腔钢管 Pipe Y 1

32 29130016031 阀至大腔钢管 Pipe Y 1

33 29130019521 至左动臂缸小腔钢管 Pipe Y 1

34 29130019541 至左动臂缸大腔钢管 Pipe Y 1

35 29130016091 钢管支架 Bracket Y 1

36 4011001248 螺栓GB5783-M10*25flZnyc-8.8-480 Screw Y 7

37 4015000433 垫圈GB97.1-10flZnyc-300HV-480 Washer Y 15

38 4041001141 U形螺栓LGB159-03646 U-bolt Y 1

39 4041001142 底板LGB160-3646 Bracket Y 1

40 29130015291 举升缸胶管 Hose Y 4

41 4041000026 分体法兰LGB117-310491 Flange half Y 8

42 29130016251 支架 Bracket Y 1

43 4011001278 螺栓GB16674.1-M10*40flZnyc-8.8-480 Screw Y 4

44 4041001017 U形螺栓LGB159-13040 U-bolt Y 4

45 4041001018 底板LGB160-3040 Bracket Y 4

46 29130013141 固定板 Anchor plate Y 2

47 29130021801 管夹 Clamp Y 2

48 29130022171 管夹 Clamp Y 2

49 4011001280 螺栓GB5783-M10*40flZnyc-8.8-480 Screw Y 8
