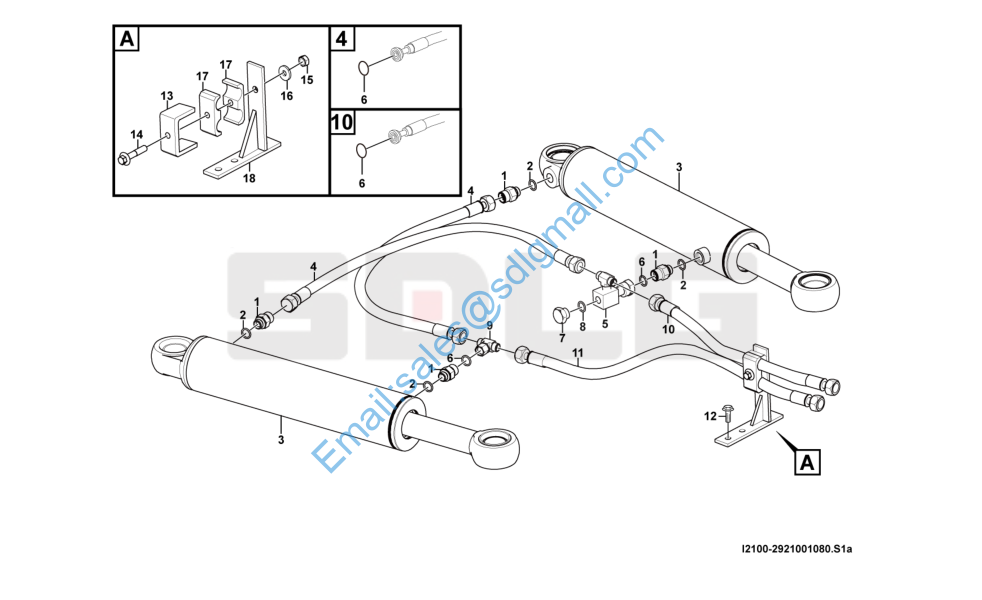

L952D 转向缸总成 Steering cylinder I2100-2921001080

1 4041000095 直接头LGB120-02218 Nipple Y 4

2 4030000020 O形圈GB3452.1-16.0*2.65G O-ring Y 4

3 4120006612 转向油缸HSGL-90*45*360-597A Steering cylinder Y 2

4 4041001045 软管LGB127-406085 Hose assembly Y 2

5 29210007781 接头 Nipple Y 1

6 4030000242 O形圈GB3452.1-12.5*1.80G O-ring Y 2

7 4041000774 螺塞LGB135-01422 Plug Y 1

8 4041000767 O形圈LGB168-11124 O-ring Y 1

9 29210007811 接头 Nipple Y 1

10 29210010481 转向器R口至转向缸胶管 Hose assembly Y 1

11 29210010961 转向器L口至转向缸胶管 Hose assembly Y 1

12 4011001294 螺栓GB16674.1-M10*20flZnyc-8.8-480 Screw Y 2

13 29210010461 压板 Plate Y 1

14 4011001463 螺栓GB16674.1-M10*75flZnyc-8.8-480 Bolt Y 1

15 4013000370 螺母GB6170-M10flZnyc-8-480 Nut Y 2

16 4015000433 垫圈GB97.1-10flZnyc-300HV-480 Washer Y 1

17 29210010471 橡胶管夹 Clamp Y 1

18 29210010491 弯板 Plate Y 1
