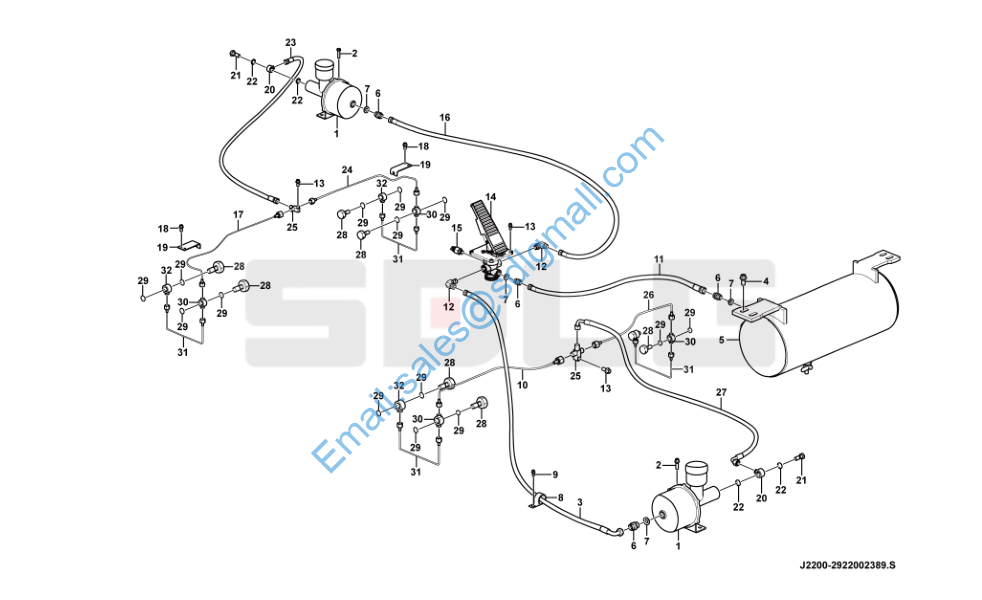

L952D 行车制动总成 Travel brake J2200-2922002389

1 4120006350 加力泵LG22-JLB-A Air cylinder N 2

2 4011001294 螺栓GB16674.1-M10*20flZnyc-8.8-480 Screw Y 4

3 4041002494 软管LGB145-206330 Hose assembly Y 1

4 4011001337 螺栓GB16674.1-M12*20flZnyc-8.8-480 Screw Y 4

5 29220020851 储气罐 Air tank N 1

6 29220017601 直接头 Nipple Y 4

7 29220000811 垫圈 Washer Y 4

8 29220009911 管夹 Clamp Y 2

9 4011000807 螺栓GB16674-M8*12EpZn-8.8 Bolt Y 2

10 29220001301 后桥左油管 Brake pipe Y 1

11 4041002204 软管LGB145-206263 Hose Y 1

12 29220016531 弯接头总成 Nipple Y 2

13 4011001295 螺栓GB16674.1-M8*25flZnyc-8.8-480 Screw Y 6

14 4120001795 气制动阀LY60F Brake valve Y 1

15 4120003757 制动灯开关YK209KLA Pressure switch Y 1

16 4041002282 软管LGB144-106180 Hose assembly Y 1

17 29220001281 前桥左油管 Brake pipe Y 1

18 4011001297 螺栓GB16674.1-M8*16flZnyc-8.8-480 Screw Y 4

19 29220001121 前桥油管防护板 Protecting plate Y 2

20 29220001241 加力泵接头块 Nipple Y 2

21 29220001231 加力泵管接头 Bolt Y 2

22 4030000551 O形圈 O-ring Y 4

23 4041001027 软管LGB153-202046 Hose assembly Y 1

24 29220001291 前桥右油管 Brake pipe Y 1

25 29220000131 三通接头 Three-way nipple Y 2

26 29220001311 后桥右油管 Brake pipe Y 1

27 4041001195 软管LGB154-202200 Hose assembly Y 1

28 29220001251 制动器管接头 Nipple Y 8

29 4030000552 O形圈 O-ring Y 16

30 29220001271 制动器三通块 Block Y 4

31 29220001321 桥油管 Brake pipe Y 4
32 29220001261 制动器接头块 Block Y 4
