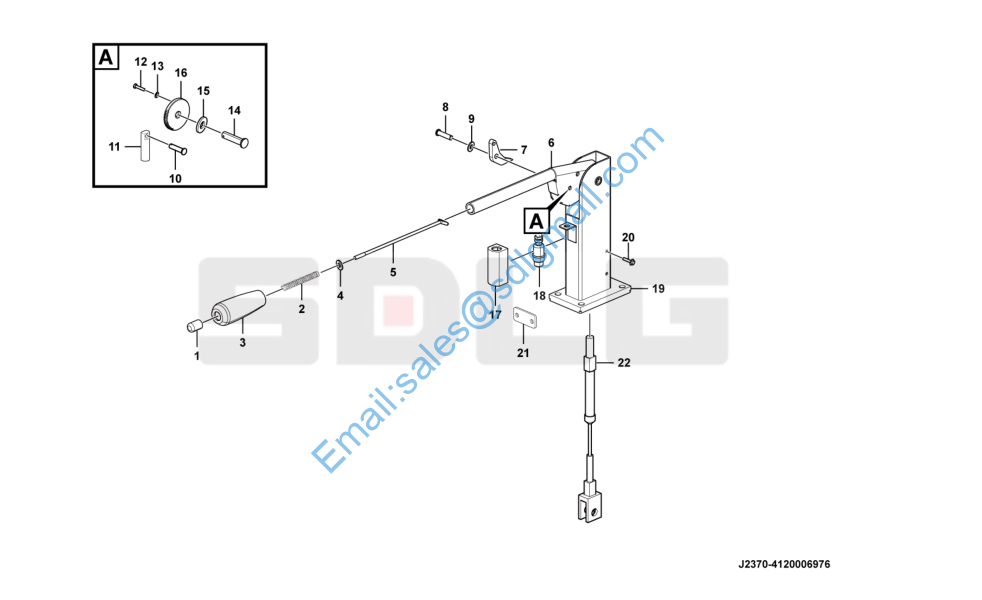

L952D 操纵机构总成 Control mechanism J2370-4120006976

1 4110002042001 镀铬头LGS9530001 Release button Y 1
2 4110002042002 弹簧LGS9530004 Spring Y 1
3 4120002616001 手柄套LGS9530007 Sleeve Y 1
4 4110002042004 平垫Φ8Φ171.5 PD-002-1 Washer Y 1
5 4120003754003 钢丝钩LGS9530009 Hook Y 1
6 4120003754002 手柄焊合件LGS9530000b Handle Y 1
7 4110002042008 棘钩LGS9530008 Hanger Y 1
8 4110002042007 销子Φ833 LGS9530006 Pin Y 1 9 4110002042019 平垫Φ8 PD-002 Washer Y 2 10 4110002042009 销子Φ828 LGS9530003 Pin Y 1
11 4110002042010 内接头LGS9530013 Nipple Y 1
12 4110002042014 螺栓M8-15 LGS9530011 Screw Y 1
13 4110002042020 弹垫Φ8 TD-002 Washer Y 1
14 4110002042012 销子Φ12-51 LGS9530005 Pin Y 1
15 4110002042013 平垫Φ12 PD-004 Washer Y 1
16 4110002042011 棘轮LGS9530002 Ratchet Y 1
17 4110002042016 开关罩LGS9530010 Switch box Y 1
18 4110002042017 开关总成LGS9530012-001 Switch kit Y 1
19 4120003754001 手刹盒焊合件LGS9530000c Brake chamber Y 1
20 4120005364001 螺栓M6-12 LGC9530014 Screw Y 2
21 4120003754005 压线片LGS9530014 Clamping plate Y 1
22 4120006976001 拉索总成4120006976-01 Brake wire Y 1
