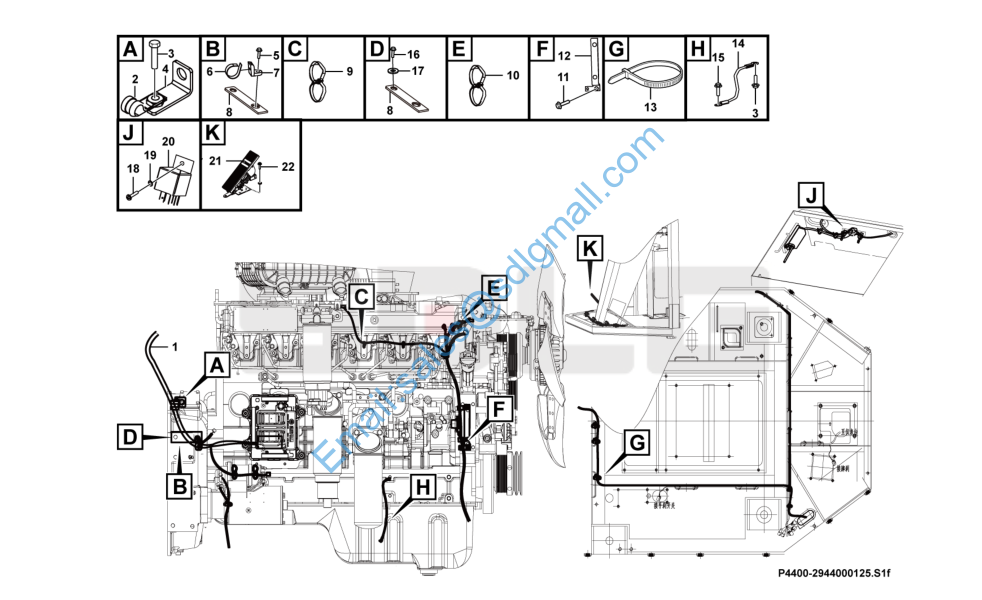

L952D 发动机电气总成 Engine electric system P4400-2944000125

1 29440001653 ECU线束 Cable harness Y 1

2 14400342 扎带 Strip clamp Y 4

3 4011000488 螺栓GB16674-M10*16EpZn-8.8 Bolt Y 2

4 26370001172 支架 Bracket Y 1

5 4011000461 螺栓GB16674-M8*16EpZn-8.8 Bolt Y 4

6 14400341 扎带 Strip clamp Y 1

7 14400340 扎带座 Strip clamp Y 1

8 29440000391 支板 Bracket Y 1

9 4190001832 扎丝RTGB-200ST Cable tie Y 2

10 4190001835 扎丝RTGB-370ST Cable tie Y 4

11 4011000137 螺栓GB16674-M12*20EpZn-8.8 Bolt Y 2

12 29440000731 支架 Bracket Y 1

13 4190001839 扎丝LG13-ZS4*160 Cable tie Y 12

14 29440000111 接地线P50*500 Battery cable Y 1

15 4011000807 螺栓GB16674-M8*12EpZn-8.8 Bolt Y 1

16 4011000664 螺栓GB5783-M14*20EpZn-8.8 Screw Y 1

17 4015000177 垫圈GB97.1-14EpZn-300HV Washer Y 1

18 4011000194 螺钉GB818-M6*12EpZn-4.8 Screw Y 2

19 4015000207 垫圈GB97.1-6EpZn-300HV Washer Y 2

20 4130000869 中间继电器024-1Z6GD2 Relay Y 2

21 4130002745 电子油门踏板403269 Accelerator pedal Y 1

22 4011000458 螺栓GB16674-M8*20EpZn-8.8 Bolt Y 3
