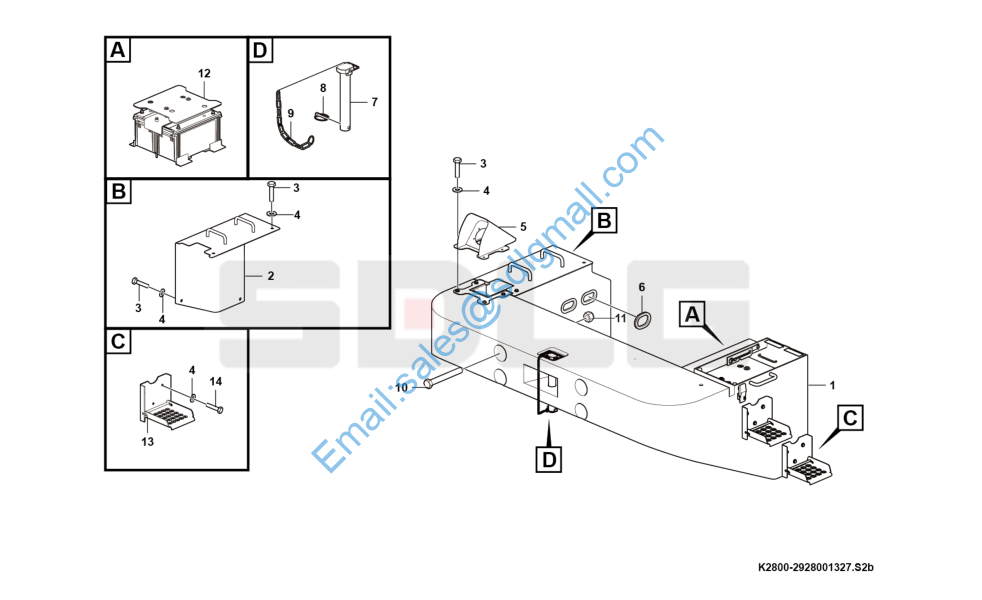

L948F 配重 Counterweight K2800-2928001327

1 29280013282 平衡铁 Counterweight Y 1

2 29280013292 盖板 Plate Y 1

3 4011001247 螺栓GB5783-M8*20flZnyc-8.8-480 Screw Y 13

4 4015000430 垫圈GB97.1-8flZnyc-300HV-480 Washer Y 19

5 29280011881 支架 Bracket Y 1

6 29340011901 走线胶套 Rubber sleeve Y 4

7 29280010721 牵引销 Pin Y 1

8 29270000081 卡环 Lock ring Y 1

9 29280012291 连接链 Chain Y 1

10 4011000426 螺栓GB5785-M30*2*280EpZn-8.8 Bolt Y 4

11 4013000064 螺母GB889.2-M30*2EpZn-8 Lock nut Y 4

12 29280010821 蓄电池固定总成 Battery retainer N 1

13 28290007411 梯子 Foot step Y 4

14 4011001247 螺栓GB5783-M8*20flZnyc-8.8-480 Screw Y 6
