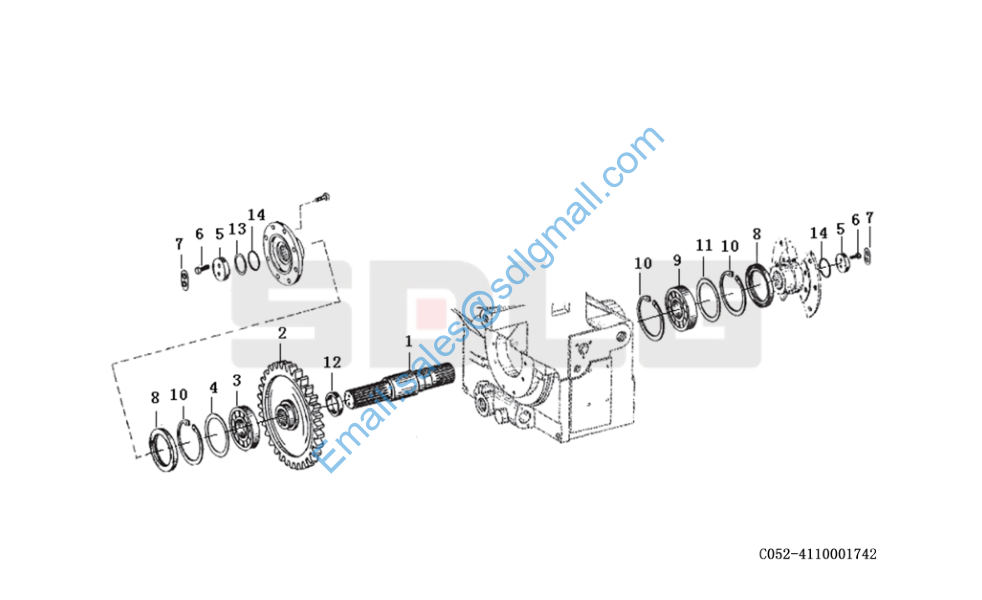

L948F 输出装置4644 103 107 Output shaft C0552-4110001742

1 4110000367034 输出轴4644303216 Shaft Y 1

2 7200002248 输出齿轮4644303279 Gear Y 1

3 7200001501 滚柱轴承0635416285 Bearing Y 1

4 4110000076309 调整垫片 1204 308 062 Shim Y 1

5 4110000076170 压板4620303247 Anchor plate Y 2

6 7200001504 六角螺钉(M10*30)0636015127 Screw Y 4

7 4110000076369 螺栓锁片 1269 302 164 Washer Y 2

8 4110000076366 轴用密封圈0750 111 116 WTB,90*120*13 Sealing ring Y 2

9 7200001507 球轴承0750116134 Ball bearing Y 1

10 4110000076213 孔用挡圈0630 502 048 120*4 Retaining ring Y 3

11 4110001742019 调整垫圈 Trim washer N 1

12 4110000076245 轴套 0730 062 296 L=20 Bushing Y 1

13 7200001513 定距垫圈4644303500 A=0.6 Washer Y 1

14 4110000042097 间隔垫圈A=1.1 4644 303 501 Spacer ring Y 1

15 7200001514 O形圈0634303466 O-ring Y 2
