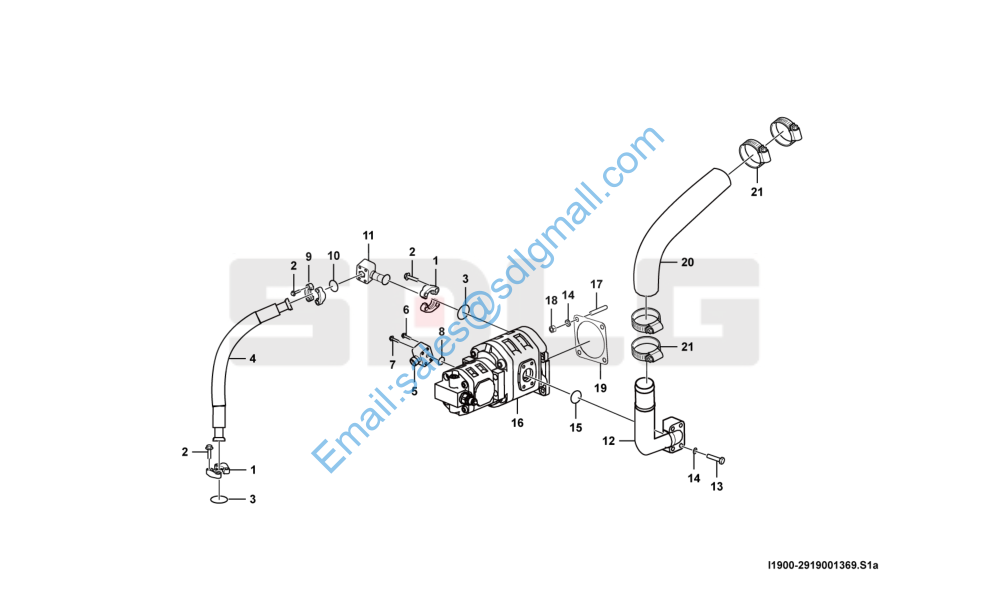

L948F 转向泵总成 Steering pump system I1900-2919001369

1 4041000027 分体法兰LGB117-312551 Flange half Y 2

2 4011001300 螺栓GB16674.1-M10*30flZnyc-8.8-480 Screw Y 12

3 4030000029 O形圈GB3452.1-37.5*3.55G O-ring Y 2

4 29190012131 出油胶管 Hose Y 1

5 29190012151 接头 Nipple Y 1

6 4011001277 螺栓GB16674.1-M8*35flZnyc-8.8-480 Screw Y 2

7 4011000172 螺栓GB16674-M8*50EpZn-8.8 Bolt Y 2

8 4011001279 螺栓GB16674.1-M8*50flZnyc-8.8-480 Screw Y 1

9 4041000043 分体法兰LGB117-310490 Flange half Y 1

10 4030000026 O形圈GB3452.1-32.5*3.55G O-ring Y 1

11 29200005051 优先阀进油钢管 Pipe Y 1

12 29110011141 吸油钢管 Pipe Y 1

13 4011001252 螺栓GB5783-M12*60flZnyc-8.8-480 Bolt Y 4

14 4015000428 垫圈GB97.1-12flZnyc-300HV-480 Washer Y 8

15 4030000133 O形圈GB3452.1-56.0*3.55G O-ring Y 1

16 4120006910 齿轮泵HPT3-125/P124-16 Gear pump Y 1

17 4012000082 螺柱GB898-M12*35flZnyc-8.8-480 Stud Y 4

18 4013000368 螺母GB6170-M12flZnyc-8-480 Nut Y 4

19 29110007541 泵用密封垫 Gasket Y 1

20 29190013741 吸油胶管Φ64-290*760 Hose assembly Y 1

21 4017000013 喉箍JB8870-d90 Clamp Y 4
