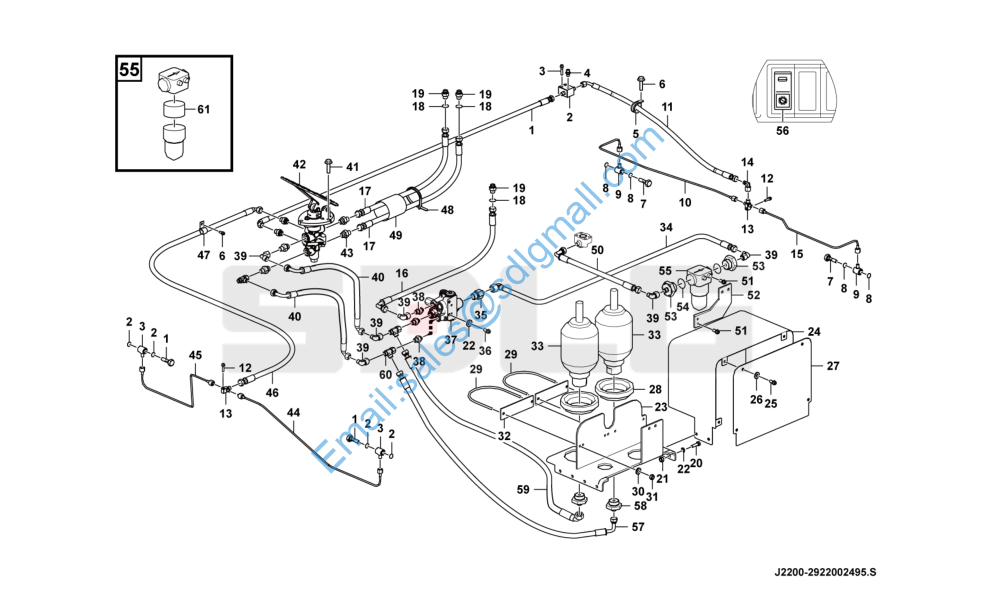

L948F 行车制动总成 Travel brake system J2200-2922002495

1 29220013961 至后桥油管 Hose assembly Y 1

2 29220009221 接头块 Block Y 1

3 4011001305 螺栓GB16674.1-M8*45flZnyc-8.8-480 Screw Y 2

4 4120004340 制动尾灯压力开关 Switch Y 1

5 4041002412 管夹LGB169-A20*10 Clamp Y 1

6 4011001297 螺栓GB16674.1-M8*16flZnyc-8.8-480 Screw Y 2

7 29220001251 制动器管接头 Nipple Y 4

8 4030000552 O形圈 O-ring Y 8

9 29220001261 制动器接头块 Block Y 4

10 29220019761 后桥右油管 Brake pipe Y 1

11 4041001835 软管LGB129-404090 Hose assembly Y 1

12 4011001295 螺栓GB16674.1-M8*25flZnyc-8.8-480 Screw Y 2

13 29220010161 三通接头 Three-way nipple Y 2

14 4190000176 过渡接头EW10LOMDA3C Nipple Y 1

15 29220019781 后桥左油管 Brake pipe Y 1

16 4041000650 软管LGB124-005113 Hose assembly Y 1

17 4041002249 软管LGB124-005150 Hose assembly Y 2

18 4041000768 O形圈LGB168-11524 O-ring Y 3

19 4041000766 直接头LGB120-01818 Nipple Y 3

20 4011001249 螺栓GB5783-M10*30flZnyc-8.8-480 Screw Y 8

21 4013000370 螺母GB6170-M10flZnyc-8-480 Nut Y 8

22 4015000433 垫圈GB97.1-10flZnyc-300HV-480 Washer Y 22

23 29220024961 蓄能器支架 Bracket Y 1

24 29220013251 护罩弯板总成 Plate Y 1

25 4011001314 螺栓GB5783-M8*12flZnyc-8.8-480 Screw Y 4

26 4015000425 垫圈GB96.1-8flZnyc-300HV-480 Washer Y 4

27 29220013271 护罩直板 Plate Y 1

28 29220010311 缓冲套 Rubber sleeve Y 2

29 29220010301 U形螺栓 U-bolt Y 2

30 4015000430 垫圈GB97.1-8flZnyc-300HV-480 Washer Y 4

31 4013000384 螺母GB889.1-M8flZnyc-8-480 Nut Y 4

32 28180003171 橡胶垫 Rubber mat Y 2

33 4120004659 蓄能器NXQ-A-1.6/31.5-L-Y Accumulator Y 2

34 4041001989 软管LGB128-005033 Hose Y 1

35 29220017621 直接头1-1/16-12UN-M18 Nipple Y 1

36 29220018821 螺栓3/8-16UNC Screw Y 2

37 4120002767 双路充液阀06-463-424 Check valve Y 1

38 4190000149 接头GE12L3/4UNFOMDA3C Nipple Y 3

39 4190000141 接头EW12LOMDA3C Nipple Y 7

40 4041002250 软管LGB128-005108 Hose assembly Y 2

41 4011001277 螺栓GB16674.1-M8*35flZnyc-8.8-480 Screw Y 3

42 4120005158 串联踏板阀06-466-435 Control valve Y 1

43 4190000147 接头GE12L9/16UNFOMDA3C Nipple Y 6

44 29220016681 前桥左油管 Brake pipe Y 1

45 29220016701 前桥右油管 Brake pipe Y 1

46 29220016251 至前桥制动油管 Hose assembly Y 1

47 26030001911 管夹D32 Hose clamp Y 1

48 4190000020 扎丝LG13-ZS4*250 Cable tie Y 4

49 29010035891 自扎帆布套 Tarpaulin cover Y 1

50 4041001828 软管LGB128-405085 Hose Y 1

51 4011001294 螺栓GB16674.1-M10*20flZnyc-8.8-480 Screw Y 4

52 29120016021 固定板 Anchor plate Y 1

53 29220012581 变径接头 Nipple Y 2

54 4030000894 O形圈GB3452.1-43.7*2.65G O-ring Y 2

55 4120004417 压力油过滤器PLF-H110*10 Hydraulic fluid filter Y 1

56 4130000504 动力切断开关JK931-01DL Rocker switch Y 1

57 4041002709 软管LGB128-005055 Hose assembly Y 1

58 29220010271 直接头 Nipple Y 2

59 4041000844 软管LGB128-005060 Hose Y 1

60 4190000143 三通接头EL12LOMDA3C Three-way nipple Y 2

61 4120004417001 压力油过滤器滤芯LH0110D010BN/HC Filter insert Y 1
