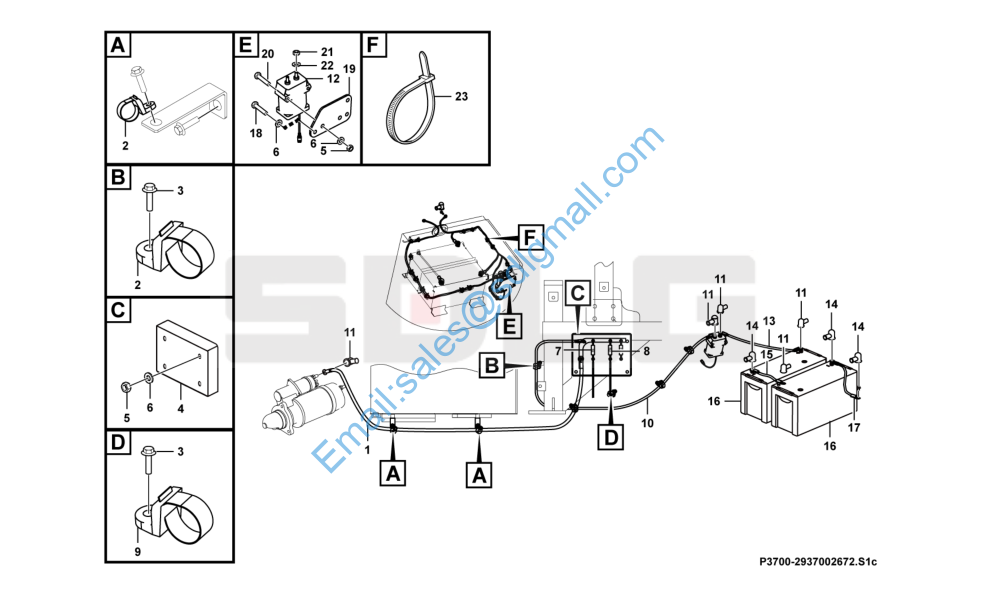

L948F 电源电气总成 Electrical source assembly P3700-2937002672

1 29370027011 UL 电瓶线A50*800 Battery cable Y 1

2 14400342 扎带 Strip clamp Y 6

3 4011001297 螺栓GB16674.1-M8*16flZnyc-8.8-480 Screw Y 6

4 11219856 保险盒 Fuse box Y 1

5 4013000373 螺母GB6170-M8flZnyc-8-480 Nut Y 6

6 4015000430 垫圈GB97.1-8flZnyc-300HV-480 Washer Y 9

7 4130002396 保险片 MEGA80A(UL) Fuse Y 1

8 4130002397 保险片 MEGA175A (UL) Fuse Y 1

9 29370017321 管夹φ30 Clamp Y 1

10 29370027241 UL电瓶线P70*2400 Battery cable Y 1

11 26370002451 红电瓶线护套 Cable sleeve Y 5

12 11220338 主开关 Main switch Y 1

13 29370027571 UL电瓶线P70*250 Battery cable Y 1

14 26370002441 黑电瓶线护套 Cable sleeve Y 3

15 29370026111 UL电瓶线P70*300 Battery cable Y 1

16 4130000057 蓄电池6-QW-120B Wet battery N 2

17 29370027561 UL电瓶线A70*650 Battery cable Y 1

18 4011001247 螺栓GB5783-M8*20flZnyc-8.8-480 Screw Y 3

19 29370026051 固定板 Bracket Y 1

20 4011001344 螺栓GB5783-M8*60flZnyc-8.8-480 Screw Y 2

21 4013000370 螺母GB6170-M10flZnyc-8-480 Nut Y 2

22 4015000433 垫圈GB97.1-10flZnyc-300HV-480 Washer Y 2

23 4190001839 扎丝LG13-ZS4*160 Cable tie Y 20
