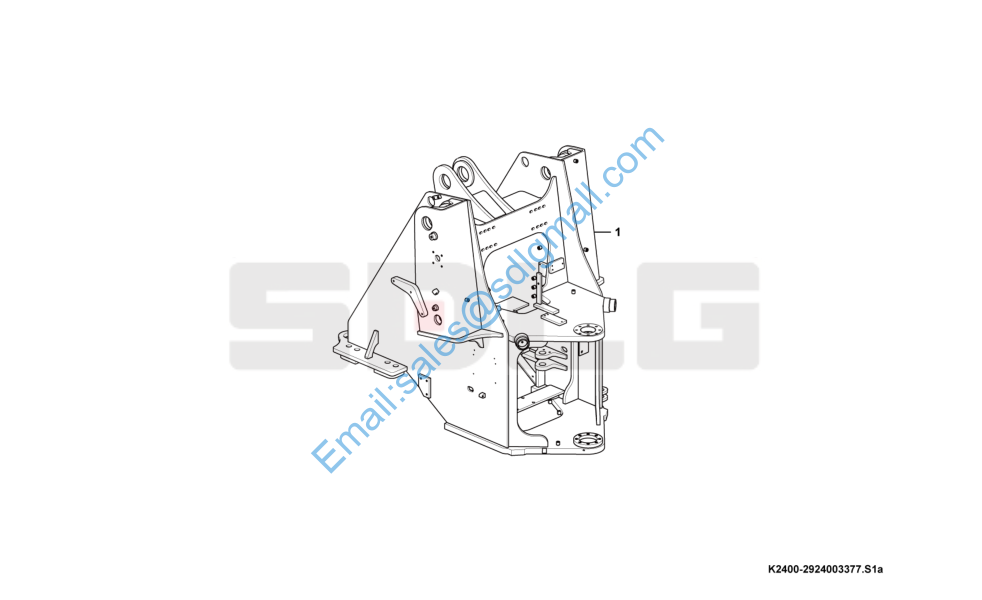

L948F 前车架 Front frame K2400-2924003377

1 29240033771 前车架 Front frame Y 1

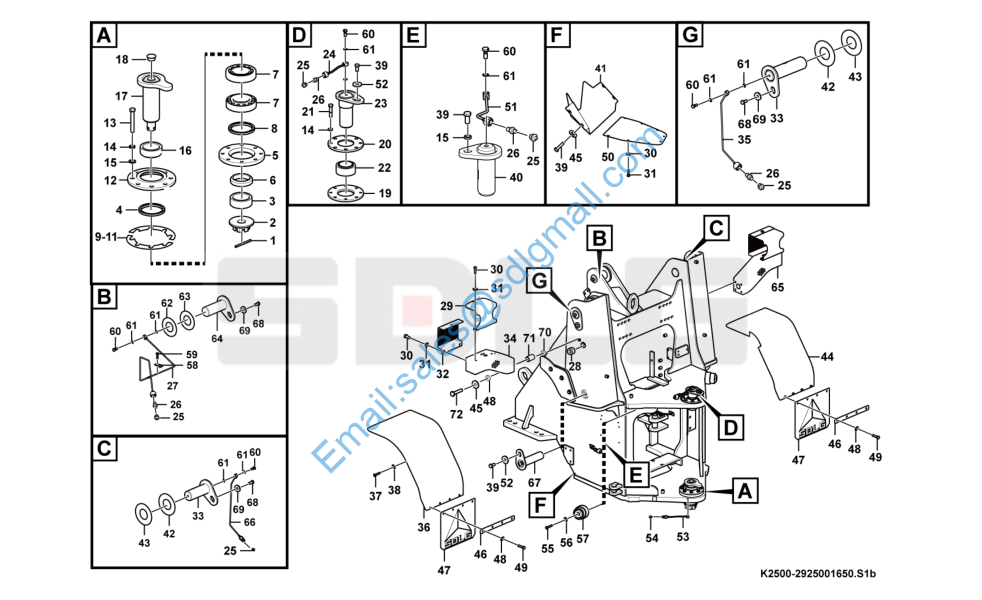

L948F 前车架附件 Fore carriage K2500-2925001650

1 4016000043 开口销GB91-8*80EpZn-Q235A Split pin Y 1

2 29250008711 开槽螺母 Nut Y 1

3 29250011291 套 Sleeve Y 1

4 4043000055 防尘圈LGB307-80 Sealing ring Y 2

5 29250011261 盘 Flange Y 1

6 29250011281 套 Sleeve Y 1

7 4021000134 滚动轴承GB297-32212 Roller bearing Y 2

8 29250011761 间隔套 Sleeve Y 1

9 4043002527 开口垫片LGB338-4*13*115*0.5 Shim Y 2

10 4043002526 开口垫片LGB338-4*13*115*0.2 Shim Y 2

11 4043002525 开口垫片LGB338-4*13*115*0.1 Shim Y 2

12 29250011301 盘 Flange Y 1

13 4011001426 螺栓GB5782-M12*85flZnyc-8.8-480 Bolt Y 8

14 4015000026 垫圈GB93-12-65Mn Spring washer Y 16

15 4015000428 垫圈GB97.1-12flZnyc-300HV-480 Washer Y 10

16 29250011271 套 Sleeve Y 1

17 29250015711 下铰接销 Pin Y 1

18 29270009421 塑料塞 Plastic plug Y 1

19 29250004021 盘 Flange Y 1

20 29250004011 盘 Flange Y 1

21 4011001281 螺栓GB5782-M12*55flZnyc-8.8-480 Screw Y 8

22 4021000042 关节轴承GB9163-GE60ES-2RS Spherical plain bearing Y 1

23 29250004041 上铰接销 Pin Y 1

24 29250014591 上铰接销润滑油管 Lubricating pipe Y 1

25 4030000065 油杯JB7940.1-M10*1 Lubricating nipple Y 8

26 29250014121 接头 Nipple Y 7

27 29250014621 转斗缸油管 Lubricating pipe Y 1

28 4043001362 护套LGB313-20*32 Rubber sleeve Y 5

29 29250012661 照灯护板 Protecting plate Y 2

30 4011001247 螺栓GB5783-M8*20flZnyc-8.8-480 Screw Y 18

31 4015000425 垫圈GB96.1-8flZnyc-300HV-480 Washer Y 18

32 29250011021 照灯网板 Protecting plate Y 2

33 4043000734 销轴LGB301-85*135N*250G-40Cr Weld pin Y 2

34 29250020361 左灯架 Lantern bracket Y 1

35 29250014541 动臂后端润滑油管-左 Lubricating pipe Y 1

36 29250013801 左挡泥瓦 Fender Y 1

37 4011001250 螺栓GB5783-M12*30flZnyc-8.8-480 Screw Y 6

38 29330059111 垫圈12 Washer Y 6

39 4011001241 螺栓GB5783-M12*25flZnyc-8.8-480 Screw Y 9

40 29250019721 转向销轴 Weld pin Y 2

41 29250016521 防护罩 Cover plate Y 1

42 4043000340 垫片LGB303-85*140*2 Shim Y 2

43 4043000339 垫片LGB303-85*140*1 Shim Y 2

44 29250013851 右挡泥瓦 Front fender Y 1

45 4015000427 垫圈GB96.1-12flZnyc-300HV-480 Washer Y 4

46 29250013831 衬板 Plate Y 2

47 29250020241 橡胶板 Rubber cushion Y 2

48 4015000426 垫圈GB96.1-10flZnyc-300HV-480 Washer Y 16

49 4011001248 螺栓GB5783-M10*25flZnyc-8.8-480 Screw Y 8

50 29250016511 护板 Cover plate Y 1

51 29250014641 转向缸油管 Lubricating pipe Y 2

52 4040000050 垫圈LGB001-12flZnyc-480 Washer Y 3

53 29250014601 下铰接油管 Lubricating pipe Y 1

54 4030000101 油杯JB7940.2-45°M10*1 Lubricating nipple Y 1

55 4011001381 螺栓GB16674.1-M10*35flZnyc-8.8-480 Screw Y 2

56 4015000433 垫圈GB97.1-10flZnyc-300HV-480 Washer Y 2

57 4190002437 减震器 Rubber damper Y 2

58 29250013741 压板 Plate Y 2

59 4011001313 螺栓GB16674.1-M8*12flZnyc-8.8-480 Screw Y 1

60 29250000291 通油螺栓 Bolt Y 7

61 29250000301 垫片 Shim Y 21

62 4043000041 垫片LGB303-95*160*2 Shim Y 1

63 4043000040 垫片LGB303-95*160*1 Shim Y 1

64 4043002524 销轴LGB301-95*115NR*220-1600G Weld pin Y 1

65 29250020391 右灯架 Lantern bracket Y 1

66 29250014551 动臂后端油管总成-右 Lubricating pipe Y 1

67 4043000424 销轴LGB301-60*133*250G-40Cr Weld pin Y 2

68 4011001271 螺栓GB5783-M16*25flZnyc-8.8-480 Bolt Y 3

69 4040000051 垫圈LGB001-16flZnyc-480 Washer Y 3

70 11220538 减震垫 Damper mat Y 16

71 11220539 钢管 Steel pipe Y 8

72 4011001270 螺栓GB5783-M10*35flZnyc-8.8-480 Screw Y 8
