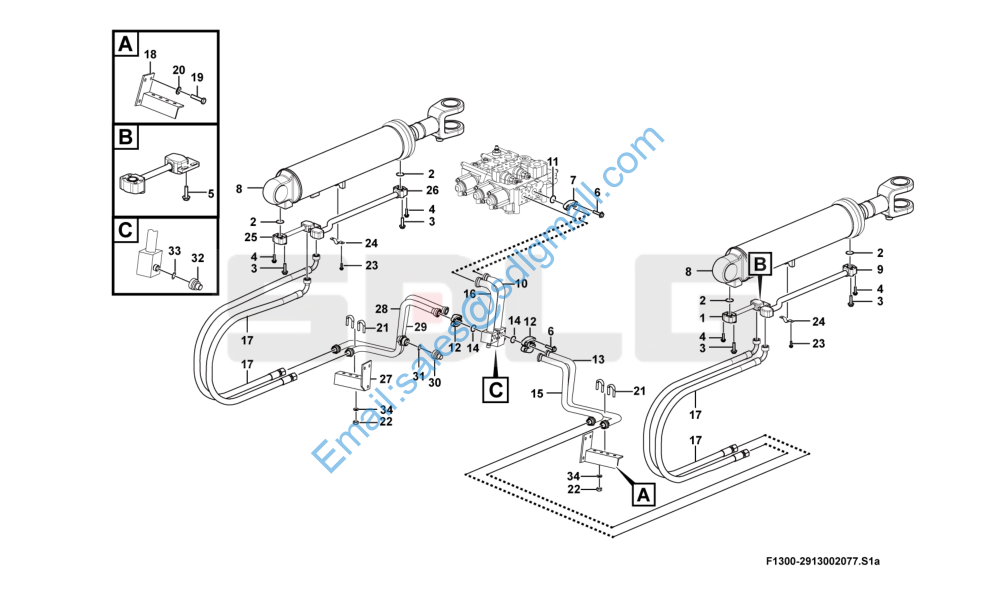

L948F 举升缸总成 Lifting cylinder assembly F1300-2913002077

1 29130018911 右动臂缸大腔钢管 Pipe Y 1

2 4030000279 O形圈GB3452.1-25.0*3.55G O-ring Y 4

3 4011001288 螺栓GB16674.1-M10*50flZnyc-8.8-480 Screw Y 8

4 4011001381 螺栓GB16674.1-M10*35flZnyc-8.8-480 Screw Y 8

5 4011001294 螺栓GB16674.1-M10*20flZnyc-8.8-480 Screw Y 2

6 4011001300 螺栓GB16674.1-M10*30flZnyc-8.8-480 Screw Y 24

7 4041000027 分体法兰LGB117-312551 Flange half Y 2

8 4120006030 动臂油缸HSGF-140*80*779-1234 Boom cylinder Y 2

9 29130018921 右动臂缸小腔钢管 Pipe Y 1

10 29130018661 动臂联小腔钢管 Pipe Y 1

11 4030000029 O形圈GB3452.1-37.5*3.55G O-ring Y 2

12 4041000043 分体法兰LGB117-310490 Flange half Y 4

13 29130019011 阀至左动臂缸小腔钢管 Pipe Y 1

14 4030000026 O形圈GB3452.1-32.5*3.55G O-ring Y 4

15 29130019031 阀至左动臂缸大腔钢管 Pipe Y 1

16 29130020861 动臂联大腔钢管 Pipe Y 1

17 29130018941 动臂缸胶管 Rubber tube Y 4

18 29130017991 固定支架A Bracket Y 1

19 4011001268 螺栓GB5783-M10*16flZnyc-8.8-480 Screw Y 6

20 4015000426 垫圈GB96.1-10flZnyc-300HV-480 Washer Y 6

21 4041000958 U形螺栓LGB159-03040 U-bolt Y 4

22 4013000370 螺母GB6170-M10flZnyc-8-480 Nut Y 8

23 4011001296 螺栓GB16674.1-M8*20flZnyc-8.8-480 Screw Y 4

24 29130000111 管夹 Clamp Y 2

25 29130018871 左动臂缸大腔钢管 Pipe Y 1

26 29130018891 左动臂缸小腔钢管 Pipe Y 1

27 29130018001 固定支架B Bracket Y 1

28 29130020881 阀至右动臂缸大腔钢管 Pipe Y 1

29 29130018971 阀至右动臂缸小腔钢管 Pipe Y 1

30 4041000774 螺塞LGB135-01422 Plug Y 2

31 4041000767 O形圈LGB168-11124 O-ring Y 2
32 4041000708 堵塞LGB142-03620 Plug Y 2
33 4030000504 O形圈GB3452.1-25.8*1.80G O-ring Y 2
34 4015000433 垫圈GB97.1-10flZnyc-300HV-480 Washer Y 8
