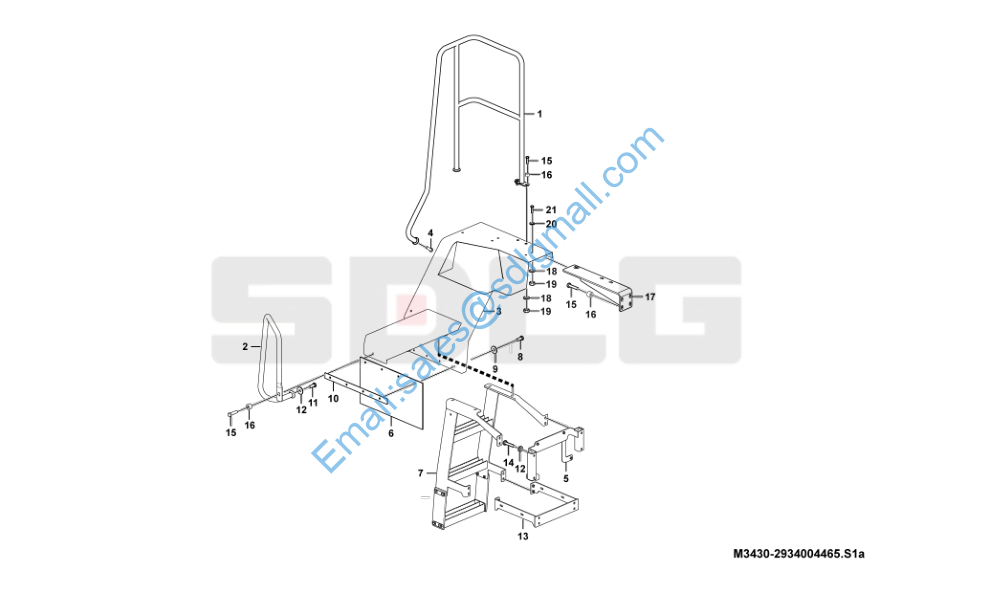

L956FH Platform M3430-2934004465

1 29340044821 右后扶手 Hand rail Y 1

2 29340046232 右前扶手 Hand rail Y 1

3 29340044661 右台架 Platform Y 1

4 4011001508 螺栓GB5783-M12*40flZnyc-8.8-480 Bolt Y 2

5 29340044751 空调支架 Bracket Y 1

6 29340044921 挡泥板 Rubber plate Y 1

7 29340044771 右梯总成 Ladder Y 1

8 4011001249 螺栓GB5783-M10*30flZnyc-8.8-480 Screw Y 8

9 4015000426 垫圈GB96.1-10flZnyc-300HV-480 Washer Y 8

10 29340044931 压板 Plate Y 1

11 4011001241 螺栓GB5783-M12*25flZnyc-8.8-480 Screw Y 1

12 4015000427 垫圈GB96.1-12flZnyc-300HV-480 Washer Y 5

13 29340044881 支架 Bracket Y 1

14 4011001516 螺栓GB5783-M12*75flZnyc-8.8-480 Bolt Y 4

15 4011001251 螺栓GB5783-M12*45flZnyc-8.8-480 Screw Y 19

16 4043001970 防松套LGB331-12*24*16flZnyc-45 Attaching sleeve Y 21

17 29340044861 支撑架 Bracket Y 1

18 4015000428 垫圈GB97.1-12flZnyc-300HV-480 Washer Y 6

19 4013000368 螺母GB6170-M12flZnyc-8-480 Nut Y 6

20 4015000186 垫圈GB96.1-12EpZn-300HV Washer Y 4

21 4011001243 螺栓GB5783-M12*35flZnyc-8.8-480 Screw Y 4
