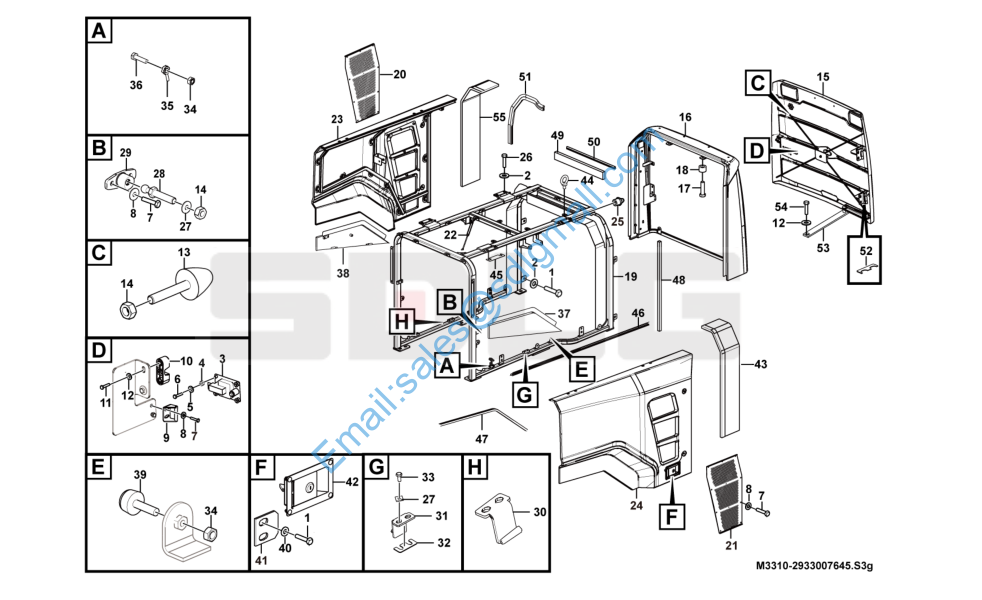

L956FH Bonnet M3310-2933007645

1 4011001241 螺栓GB5783-M12*25flZnyc-8.8-480 Screw Y 12

2 4015000427 垫圈GB96.1-12flZnyc-300HV-480 Washer Y 16

3 4190002281 锁NBS182 Door lock Y 1

4 4190002284 垫圈 Washer Y 4

5 4015000438 垫圈GB96.1-5flZnyc-300HV-480 Washer Y 4

6 4011001336 螺栓GB5783-M5*10flZnyc-8.8-480 Screw Y 4

7 4011001285 螺栓GB5783-M6*16flZnyc-8.8-480 Screw Y 28

8 4015000437 垫圈GB96.1-6flZnyc-300HV-480 Washer Y 28

9 4190002434 卡板 Catch Y 1

10 11211010 挡块 Bump stop Y 2

11 4011001247 螺栓GB5783-M8*20flZnyc-8.8-480 Screw Y 4

12 4015000425 垫圈GB96.1-8flZnyc-300HV-480 Washer Y 5

13 11210576 缓冲器 Bolt Y 2

14 4013000370 螺母GB6170-M10flZnyc-8-480 Nut Y 6

15 29330068752 后窗棂 Grille N 1

16 29330068742 后罩 Bonnet Y 1

17 4011001251 螺栓GB5783-M12*45flZnyc-8.8-480 Screw Y 2

18 4043001970 防松套LGB331-12*24*16flZnyc-45 Attaching sleeve Y 2

19 29330086221 L956F机罩框架（二阶段） Frame N 1

20 29330077451 右衬网 Protecting grating Y 1

21 29330077421 左衬网 Protecting grating Y 1

22 4041002547 气弹簧LGB171-12-80-370(B-B)1000 Gas spring Y 4

23 29330068731 右侧门总成 Cover Y 1

24 29330068721 左侧门总成 Cover Y 1

25 4030000535 油杯JB7940.1-M6 Lubricating nipple Y 10

26 4011001243 螺栓GB5783-M12*35flZnyc-8.8-480 Screw Y 8

27 4015000426 垫圈GB96.1-10flZnyc-300HV-480 Washer Y 12

28 29330074891 球头螺栓 Ball stud Y 2

29 29340036401 橡胶座 Rubber frame Y 2

30 29330086691 铰接座 Rotor shaft N 2

31 29330086671 铰接座 Rotor shaft N 2

32 29330085431 开口垫片-2*13*70*30*2 Spacer Y 4

33 4011001238 螺栓GB5783-M10*20flZnyc-8.8-480 Screw Y 8

34 4013000373 螺母GB6170-M8flZnyc-8-480 Nut Y 10

35 29330085261 钢丝绳限位带 Lock strip N 2

36 4011001500 螺栓GB5783-M8*30flZnyc-8.8-480 Screw Y 4

37 29330073352 左下挡板总成 Cover N 1

38 29330073372 右下挡板总成 Cover N 1

39 4043002807 缓冲块LGB345-A8*31 Rubber block Y 8

40 4015000428 垫圈GB97.1-12flZnyc-300HV-480 Washer Y 4

41 29330086731 门锁卡板 Lock plate Y 2

42 4190003748 机罩门锁总成NBS504LG-1 Lock Y 2

43 29330074682 海绵 Sponge Y 1

44 4014000139 螺钉GB825-M12EpZn-20 Screw Y 4

45 29330075891 垫片 Spacer Y 8

46 29330077461 卡子胶条 Sealing strip Y 2

47 4043000956 卡子胶条LGB320-S930 Sealing strip Y 2

48 29330073611 海绵930*25*25 Sponge Y 2

49 29330076401 海绵 Sponge Y 1

50 4043002572 卡子胶条LGB320-S640 Sealing strip Y 1

51 29330077471 卡子胶条 Sealing strip Y 4

52 29330085421 开口垫片-2*14*100*30*2 Spacer Y 2

53 29330070631 拉杆 Pull rod Y 1

54 4011001291 螺栓GB5783-M6*12flZnyc-8.8-480 Bolt Y 1

55 29330087241 海绵 Sponge Y 1
