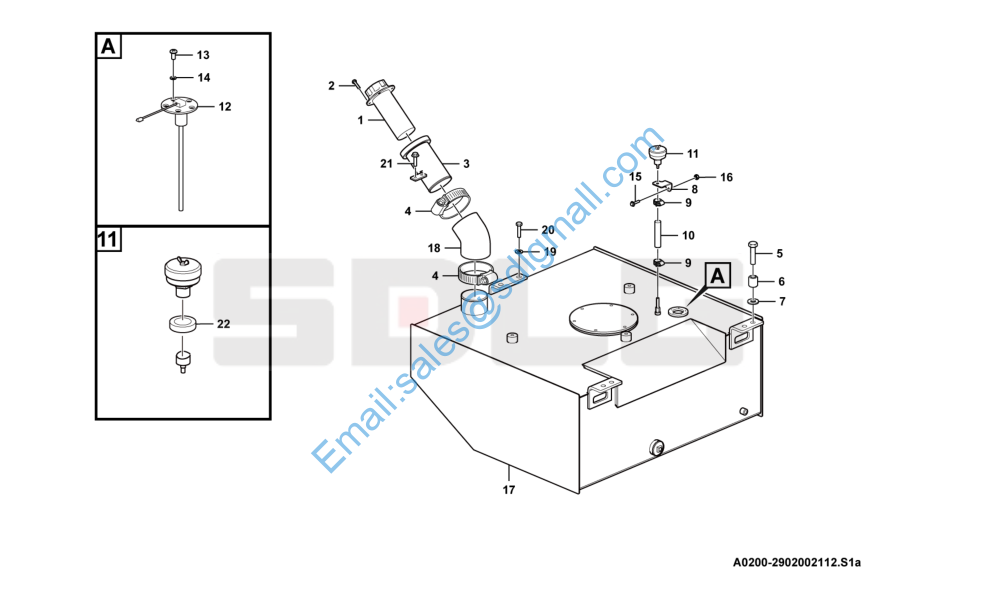

L956FH 燃油箱总成 Fuel tank assembly A0200-2902002112

1 4110000613 带锁加油滤清器QL8 Fuel filter Y 1

2 4011000102 螺栓GB5783-M8*16EpZn-8.8 Bolt Y 4

3 29020010221 加油管总成 Fuel pipe Y 1

4 4017000005 喉箍JB8870-d120 Clamp Y 2

5 4011001204 螺栓GB5782-M16*100flZnyc-10.9-480 Screw Y 4

6 4043002121 防松套LGB331-16*30*30EpZn-45 Attaching sleeve Y 4

7 4015000439 垫圈GB96.1-16flZnyc-300HV-480 Washer Y 4

8 29020009491 滤清器支架 Bracket Y 1

9 4017000010 喉箍JB8870-d20 Clamp Y 2

10 29020010251 透气胶管 Hose Y 1

11 4110000852 空气滤清器C-M33×2 Air cleaner Y 1

12 4130001309 油位传感器RG2266型-M76 Fuel level sensor Y 1

13 4014000048 螺钉GB818-M5*12EpZn-4.8 Screw Y 5

14 4015000110 垫圈GB97.1-5EpZn-300HV Washer Y 5

15 4011000447 螺栓GB16674-M10*20EpZn-8.8 Bolt Y 1

16 4013000007 螺母GB6170-M10EpZn-8 Nut Y 1

17 29020017921 燃油箱总成 Fuel tank Y 1

18 29020010241 连接胶管 Hose Y 1

19 4015000181 垫圈GB97.1-16EpZn-300HV Washer Y 2

20 4011000564 螺栓GB5783-M16*45EpZn-10.9 Screw Y 2

21 4011000461 螺栓GB16674-M8*16EpZn-8.8 Bolt Y 2

22 4120005390 空滤滤芯C-X-32 Filter insert Y 1
