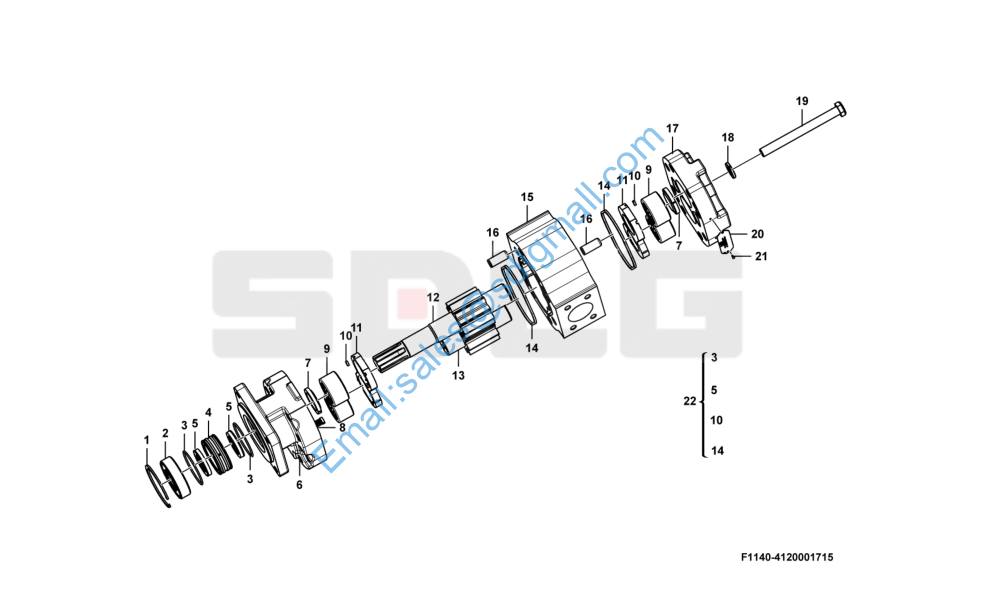

L956FH 齿轮泵(120101） Gear pump F1140-4120001715

1 4015000015 挡圈GB893.1-80-65Mn Retaining ring Y 1

2 4120001715401 轴承3910381078 Bearing N 1

3 4120001715402 O形圈3912881457 O-ring N 2

4 4120001715403 密封套3912584051 Sleeve N 1

5 4120001715404 油封3912883052 Sealing ring N 2

6 4120001715405 前盖3165037202c Cover N 1

7 4120001715406 密封环3912585011 Sealing ring N 2

8 4120001715407 螺堵3912286004 Plug N 1

9 4120001715408 轴承3910381060A Bearing N 4

10 4120001715409 密封件3912882052 Sealing ring N 12

11 4120001715410 侧板3912185026A Side board N 2

12 4120001715412 主动齿轮CN102000086 Drive shaft N 1

13 4120001715413 从动齿轮3162725000 Shaft N 2

14 4120001715411 密封圈3912884024 Sealing ring N 1

15 4120001715414 中间体P76-25-104-02 Centering block N 1

16 4120001715415 销3912082033 Pin N 4

17 4120001715416 后盖3163120100 Cover N 1

18 4120001715417 垫圈3913784028 Washer N 8

19 4120001715418 螺栓3911401363 Screw N 8

20 4120001715419 标牌3912181999A Decal N 1

21 4120003294019 铆钉3911432004 Rivet N 2

22 4120001715420 密封件包CN102000099 Sealing ring kit N 1
