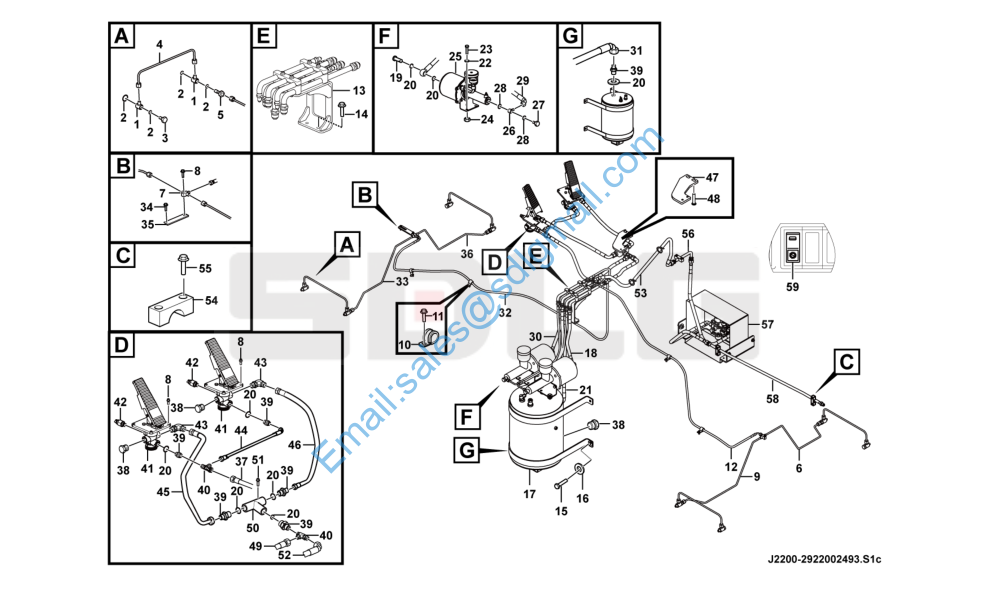

L956FH 行车制动总成 Travel brake system J2200-2922002493

1 29220009021 接头块 Block Y 8

2 4030000552 O形圈 O-ring Y 16

3 29220001251 制动器管接头 Nipple Y 4

4 29220020451 桥油管 Brake pipe Y 4

5 29220009011 管接头 Nipple Y 4

6 29220020171 后桥右油管 Brake pipe Y 1

7 29220009031 三通接头 Three-way nipple Y 2

8 4011001295 螺栓GB16674.1-M8*25flZnyc-8.8-480 Screw Y 10

9 29220020151 后桥左油管 Brake pipe Y 1

10 4041002412 管夹LGB169-A20*10 Clamp Y 4

11 4011001313 螺栓GB16674.1-M8*12flZnyc-8.8-480 Screw Y 4

12 29220022151 油管-1850 Hose Y 1

13 29220024741 管排模块 Pressure pipe connection N 1

14 4011001296 螺栓GB16674.1-M8*20flZnyc-8.8-480 Screw Y 2

15 4011001250 螺栓GB5783-M12*30flZnyc-8.8-480 Screw Y 4

16 4015000427 垫圈GB96.1-12flZnyc-300HV-480 Washer Y 4

17 29220019831 储气罐 Air reservoir Y 1

18 29220025661 进气胶管-380 Hose assembly Y 1

19 29010000041 螺栓 Screw Y 2

20 29220000811 垫圈 Washer Y 11

21 4041002784 软管LGB173-106066 Hose assembly Y 1

22 4015000426 垫圈GB96.1-10flZnyc-300HV-480 Washer Y 8

23 4011001249 螺栓GB5783-M10*30flZnyc-8.8-480 Screw Y 4

24 4013000370 螺母GB6170-M10flZnyc-8-480 Nut Y 4

25 4120006981 加力泵LG22-JLB-B Pneumatic cylinder Y 2

26 29220001241 加力泵接头块 Nipple Y 2

27 29220001231 加力泵管接头 Bolt Y 2

28 4030000551 O形圈 O-ring Y 4

29 29220024781 油管-730 Hose assembly Y 2

30 29220025671 进气胶管-365 Hose assembly Y 1

31 4041002783 软管LGB173-206057 Hose assembly Y 1

32 4041001183 软管LGB153-202310 Hose assembly Y 1

33 29220020111 前桥左油管 Brake pipe Y 1

34 4011001297 螺栓GB16674.1-M8*16flZnyc-8.8-480 Screw Y 1

35 29220025681 固定板 Plate Y 1

36 29220020131 前桥右油管 Brake pipe Y 1

37 4041002844 软管LGB173-106063 Hose assembly Y 1

38 4030000055 螺塞JB1000-M22*1.5EpZn-35 Plug Y 3

39 29220017601 直接头 Nipple Y 7

40 29220012381 三通接头 Three-way nipple Y 2

41 4120006889 气制动阀HP3514AD-1(LinG)35゜A Brake valve Y 2

42 4120003757 制动灯开关YK209KLA Pressure switch Y 2

43 29220016531 弯接头总成 Nipple Y 2

44 4041002788 软管LGB173-106035 Hose assembly Y 1

45 4041002844 软管LGB173-106063 Hose assembly Y 1

46 4041002802 软管LGB173-106057 Hose assembly Y 1

47 29220023261 梭阀支架 Bracket Y 1

48 4011001299 螺栓GB16674.1-M10*25flZnyc-8.8-480 Screw Y 2

49 4041002933 软管LGB173-006033 Hose assembly Y 1

50 4120002025 梭阀VS22 Shuttle valve Y 1

51 4011000281 螺栓GB16674-M6*40EpZn-8.8 Bolt Y 2

52 4041002934 软管LGB173-106033 Hose assembly Y 1

53 4041002935 软管LGB173-206076 Hose assembly Y 1

54 29220018641 压块 Block Y 3

55 4011001301 螺栓GB16674.1-M8*30flZnyc-8.8-480 Screw Y 6

56 29220021121 钢管总成G Brake pipe Y 1

57 29220026721 空气源管理器模块 Water separator N 1

58 29220017521 钢管 Brake pipe Y 1

59 4130000504 动力切断开关JK931-01DL Rocker switch Y 1
