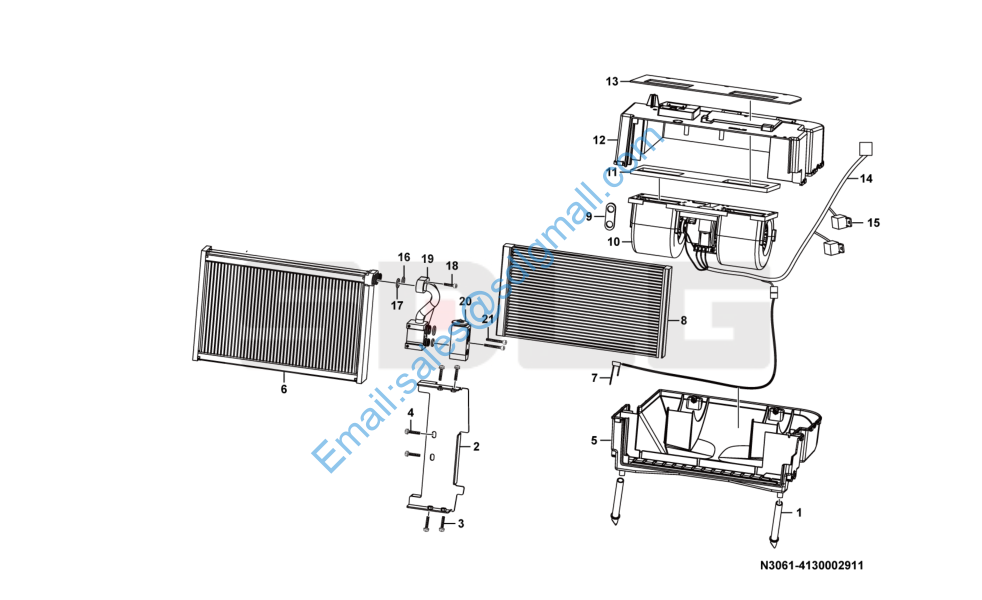

L956FH 蒸发器总成(330112) Evaporator N3061-4130002911

1 4130002911001 排水管组件GKZ33-5.0H-80 Water pipe Y 2

2 4130002699011 挡风板GKZ33-5.0H-60 Bracket Y 1

3 4130002699012 十字沉头螺栓GB819-85 M5*16 Screw Y 4

4 4130002911002 螺钉GB9074.8-88-M5*16 Screw Y 2

5 4130002699006 下壳总成GKZ33-5.0H-40 Closure Y 1

6 4190002827 蒸发器芯体 Cell core Y 1

7 4130002911003 感温探头TB6510 Temperature sensor Y 1

8 4190002826 换热器芯体组件 Cell core Y 1

9 4130002699002 护孔圈GKZ33-5.0H-05 Casing Y 1

10 4190002843 蒸发风机 Fan Y 1

11 4130002911004 密封垫GKZ33-5.0H-03 Sealing Y 1

12 4130002699007 上壳总成GKZ33-5.0H-50 Closure Y 1

13 4130002911005 密封垫GKZ33-5.0H-04 Sealing Y 1

14 4130002911006 蒸发器线束GKZ33-5.0H4-10 Wiring harness Y 1

15 4130000415004 继电器TB6301 Relay Y 2

16 4130002911007 密封圈T0001-10.8-2.4 Sealing ring Y 2

17 4130002911008 密封圈T0001-13.6-2.4 Sealing ring Y 2

18 4014000532 螺钉GB70.1-M5*25flZnyc-10.9-480 Screw Y 2

19 4130002911009 过度管组件GKZ33-5.0H-10-10 Hose Y 1

20 4190002822 膨胀阀 Expansion valve Y 1

21 4014000397 螺钉GB70.1-M5*40EpZn-8.8 Screw Y 2
