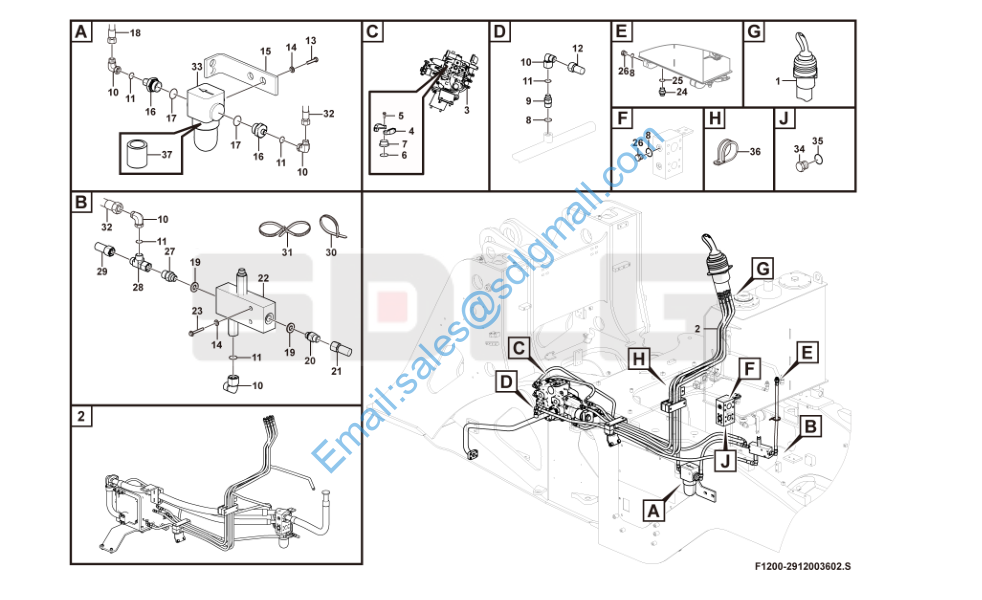

L956FH 液压操纵总成 Hydraulic control system F1200-2912003602

1 29120029501 先导阀PCL403-35-B部装总成 Control lever assembly N 1

2 29120034571 液压操纵主管路和先导管路 Hydraulic control N 1

3 29120029601 多路阀KM300-III-19A部装 Control valve N 1

4 4041000026 分体法兰LGB117-310491 Flange half Y 4

5 4011001300 螺栓GB16674.1-M10*30flZnyc-8.8-480 Screw Y 16

6 4030000026 O形圈GB3452.1-32.5*3.55G O-ring Y 4

7 4041000818 防尘盖LGB134-01049 Cover Y 4

8 4041000767 O形圈LGB168-11124 O-ring Y 5

9 4041000604 直接头LGB120-01614 Nipple Y 1

10 4041001023 组合接头LGB143-01608 Nipple Y 4

11 4030000240 O形圈GB3452.1-8.00*1.80G O-ring Y 4

12 4041002606 软管LGB127-004215 Hose assembly Y 1

13 4011001238 螺栓GB5783-M10*20flZnyc-8.8-480 Screw Y 4

14 4015000433 垫圈GB97.1-10flZnyc-300HV-480 Washer Y 6

15 29120029541 滤油器固定板 Plate Y 1

16 29120015081 接头 Nipple Y 2

17 4030000276 O形圈GB3452.1-32.5*2.65G O-ring Y 2

18 4041000602 软管LGB124-004170 Hose Y 1

19 29120014931 垫圈 Washer Y 2

20 29120007661 接头 Nipple Y 1

21 4041001552 软管LGB125-005168 Hose assembly Y 1

22 4120005063 压力选择阀SF8-D Valve Y 1

23 4011001262 螺栓GB5782-M10*55flZnyc-8.8-480 Bolt Y 2

24 4041000766 直接头LGB120-01818 Nipple Y 1

25 4041000768 O形圈LGB168-11524 O-ring Y 1

26 4041000774 螺塞LGB135-01422 Plug Y 4

27 29120007651 接头 Nipple Y 1

28 4120001100 三通接头EL10LOMDA3C Three-way nipple Y 1

29 4041002789 软管LGB124-004184 Hose assembly Y 1

30 4190000056 扎丝LG13-ZS3*200 Cable tie Y 3

31 4190001832 扎丝RTGB-200ST Cable tie Y 3
32 4041001537 软管LGB125-004030 Hose assembly Y 1
33 4120001954 滤油器PLF-C3010 Hydraulic fluid filter Y 1 34 4041000777 螺塞LGB135-02227 Plug Y 1 35 4041000771 O形圈LGB168-11924 O-ring Y 1 36 4041002417 管夹LGB169-B2012.5 Clamp Y 1
37 4120001954001 滤芯（先导滤清器滤芯)PLFX-30X10 Filter insert Y 1
