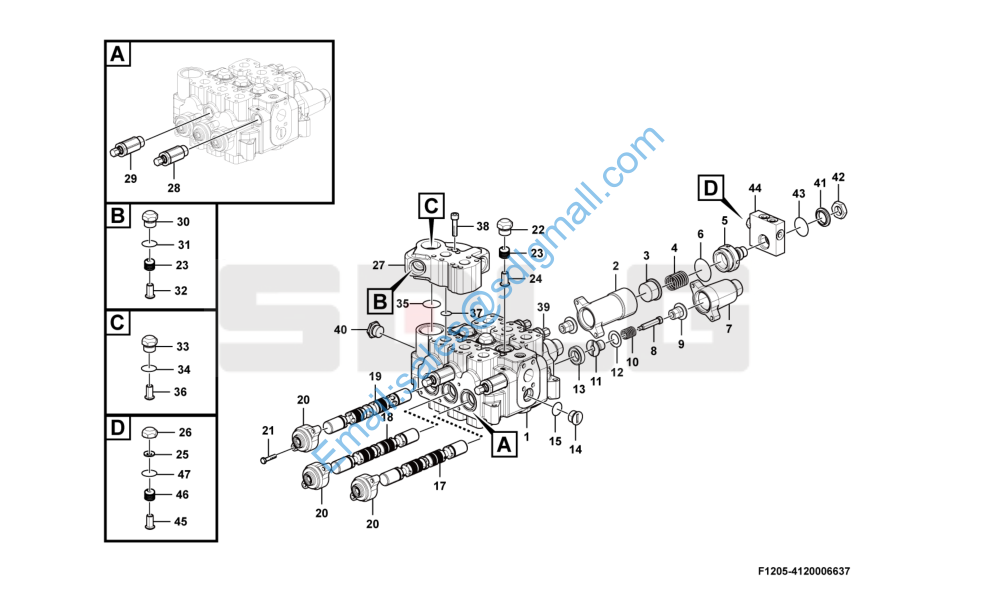

L956FH 多路阀KM300-III-19A Control valve F1205-4120006637

1 4120006637001 阀体2022000002 Valve body N 1

2 4120006566008 动臂联端盖2022000003 End cover N 1

3 4120006566013 活塞2022000004 Piston N 1

4 4120006566014 弹簧2022000005 Spring N 1

5 4120006566015 盖2022000006 End cover N 1

6 4120003142 O形圈Parker9-5048 O-ring parker9-5048 Y 1

7 4120006566012 转斗联端盖2022000007 End cover N 2

8 4120006637002 螺栓2022000008 Screw N 3

9 4120006637003 弹簧座2022000009 Spring seat N 3

10 4120006637004 弹簧2022000010 Spring N 3

11 4120006637005 弹簧座2022000011 Spring seat N 3

12 4120006637006 调整垫片2022000012 Shim N 3

13 4120006566011 隔套2022000013 Spacer sleeve N 3

14 4120006637007 螺塞2022000014 Plug N 1

15 4041000779 O形圈LGB168-12331 O-ring Y 5

16 4120003138 O形圈Parker2-135 O-ring parker2-135 Y 6

17 4120006637008 阀杆2022000017 Valve rod N 1

18 4120006566010 转斗联阀杆2022000016 Valve rod N 1

19 4120006566009 动臂联阀杆2022000015 Valve rod N 1

20 4120006566001 端盖2022000018 End cover N 3

21 4011000195 螺栓GB5783-M8*35EpZn-8.8 Bolt Y 12

22 4120006566007 阀座2022000019 Valve seat N 3

23 4120006637009 弹簧2022000020 Spring N 5

24 4120006637010 阀芯2022000021 Valve body N 3

25 4120006637021 调整垫片2022000055 Shim N 1

26 4120006637022 阀座2022000056 Valve seat N 1

27 4120006566005 阀体2022000022 Valve body N 1

28 4120006566018 过载阀2022000036 Valve N 1

29 4120006566002 过载阀2022000035 Valve N 1

30 4120006637013 阀座2022000037 Valve seat N 2

31 4041000685 O形圈LGB168-12631 O-ring Y 2

32 4120006637014 阀芯2022000038 Valve body N 2

33 4120006637015 阀座2022000039 Valve seat N 1

34 4120003137 O形圈Parker9-5505 O-ring parker9-5505 Y 1

35 4120003140 O形圈Parker2-325 O-ring parker2-325 Y 1

36 4120006566006 卸荷阀总成2022000047 Valve N 1

37 4120003141 O形圈Parker2-226 O-ring parker2-226 Y 1

38 4014000296 P-螺钉GB70.1-M8*70-12.9 Screw gb70.1-m8*70-12.9 N 2

39 4120006566019 过载阀2022000049 Valve N 2

40 4120006637018 螺塞2022000050 Plug N 1

41 4120006566017 挡圈2022000051 Retaining ring N 1

42 4013000260 P-螺母GB6173-M24*2-05 Nut gb6173-m24*2-05 Y 1

43 4041000765 O形圈LGB168-12931 O-ring Y 2

44 4120006566016 阀块2022000052 Valve block N 1

45 4120006637019 滑阀2022000053 Valve N 1

46 4120006637020 弹簧2022000054 Spring N 1

47 4041000768 O形圈LGB168-11524 O-ring Y 1
