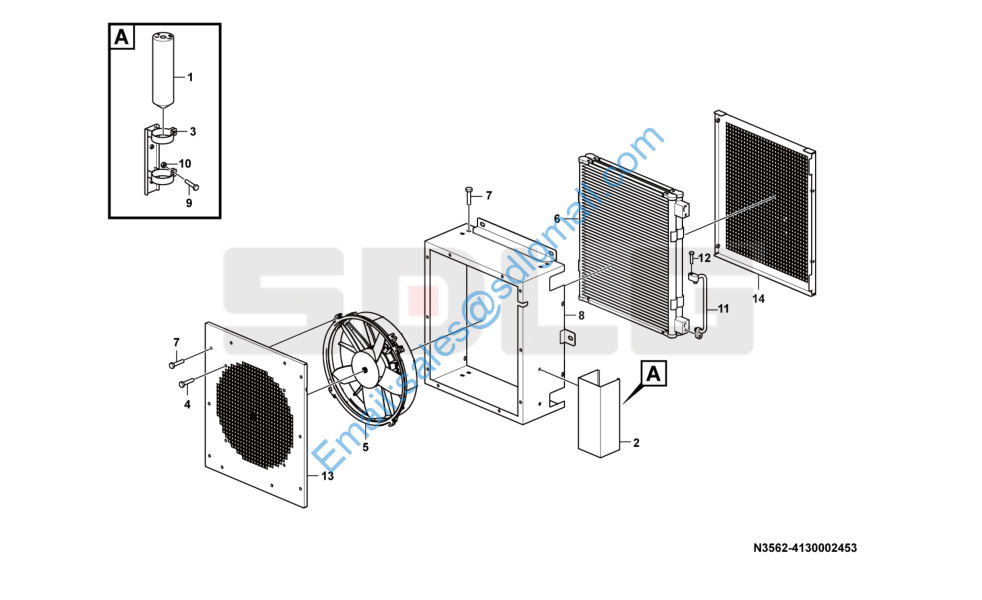

L956FH 冷凝器总成(330112) Condenser N3562-4130002453

1 4190002863 储液器 Reservoir Y 1

2 4130002453001 储液器保护架GKL33-5.0H1-20 Bracket Y 1

3 4190002907006 储液器卡箍GKL33-5.0H1-30 Clamp Y 1

4 4011000778 P-螺栓GB5783-M6*25-8.8 Screw Y 4

5 4190002907003 冷凝风机GKL33-5.0H-30 Fan Y 1

6 4130002453002 冷凝器GKL33-5.0H1-40 Condenser Y 1

7 4011000423 螺栓GB5783-M6*12EpZn-8.8 Screw Y 27

8 4130002453003 冷凝器壳体GKL33-5.0H5-20 Housing Y 1

9 4011000101 螺栓GB5783-M6*20EpZn-8.8 Bolt Y 2

10 4013000211 螺母GB889.1-M6EpZn-8 Nut Y 2

11 4130002453004 连接管组件GKL33-5.0H1-60 Pipe Y 1

12 4011000291 螺栓GB5783-M6*30EpZn-8.8 Screw Y 1

13 4130002453005 出风板GKL33-5.0H5-01 Plate Y 1

14 4130002453006 进风罩组件GKL33-5.0H1-70 Return strainer Y 1
