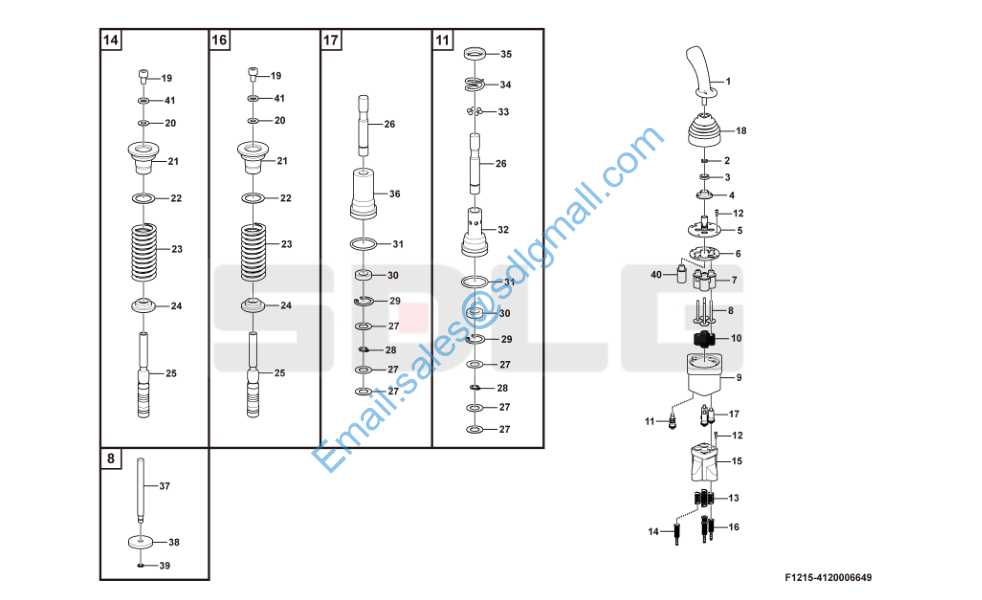

L956FH 先导阀总成PCL403-35-B（370142） Control lever assembly F1215-4120006649

1 4120006649001 手柄总成2022000203 Control handle N 1

2 4013000271 P-螺母GB6172.1-M14EpZn-05 Nut gb6172.1-m14epzn-05 Y 1

3 4120006649002 螺母M202022000209 Nua Y 1

4 4120006649003 压盘2022000205 Press plate Y 1

5 4120006649004 枢轴总成2022000210 Pivot attachment Y 1

6 4120006649005 托板2022000217 Plate Y 1

7 4120006649006 螺线管总成2022000218 Solenoid Y 3

8 4120006649007 顶杆总成2022000223 Roof member Y 4

9 4120006649008 上阀体2022000227 Valve body Y 1

10 4120006649009 复位弹簧Ⅰ2022000228 Spring Y 4

11 4120006649010 柱塞总成A2022000229 Tubular stay Y 1

12 4014000170 螺钉GB70.1-M5*16EpZn-8.8 Screw Y 8

13 4120006649011 复位弹簧Ⅱ2022000236 Spring Y 4

14 4120006649012 阀杆总成A2022000237 Valve spindle Y 1

15 4120006649013 下阀体2022000201 Valve body Y 1

16 4120006649014 阀杆总成BCD2022000202 Valve spindle Y 3

17 4120006649015 柱塞总成BCD2022000247 Tubular stay Y 3

18 4120006649016 防尘套2022000207 Casing N 1

19 4014000324 P-螺钉GB70.1-M3*5EpZn-10.9 Screw gb70.1-m3*5epzn-10.9 Y 4

20 4120006649017 调整垫圈2022000241 Adjusting washer Y 4

21 4120006649018 弹簧座2022000238 Spring seat Y 4

22 4120006649019 调整垫圈2022000239 Adjusting washer Y 4

23 4120006649020 调压弹簧2022000242 Spring Y 4

24 4120006649021 弹簧座2022000243 Spring seat Y 4

25 4120006649022 阀芯2022000244 Valve spindle Y 4

26 4120006649023 推杆2022000230 Push rod Y 4

27 4120006649024 调整垫片2022000235 Adjusting washer Y 4

28 4015000342 挡圈GB896-6-65Mn Retaining ring N 4

29 4015000341 P-挡圈GB893.1-15-65Mn Check ring gb893.1-15-65mn Y 4

30 4120003968 密封圈C1 0074 N3571 Lock ring c1 0074 n3571 N 4

31 4030000360 O形圈GB3452.1-19.0*1.80G O-ring Y 4

32 4120006649025 浮动联套筒2022000231 Valve housing Y 1

33 4021000242 钢球GB308-3.175-GCr15 Steel ball gb308-3.175-gcr15 Y 6

34 4120006649026 定位弹簧2022000233 Spring Y 4

35 4120006649027 卡环2022000232 Lock ring Y 4

36 4120006649028 套筒2022000248 Valve housing Y 3

37 4120006649029 滑杆2022000224 Push rod Y 4

38 4120006649030 衔铁2022000225 Round iron Y 4

39 4120006649031 轴用钢丝挡圈2022000226 Lock ring Y 4

40 4120006649032 螺线管2022000245 Solenoid Y 1

41 4120006649033 垫片2022000240 Washer Y 4
