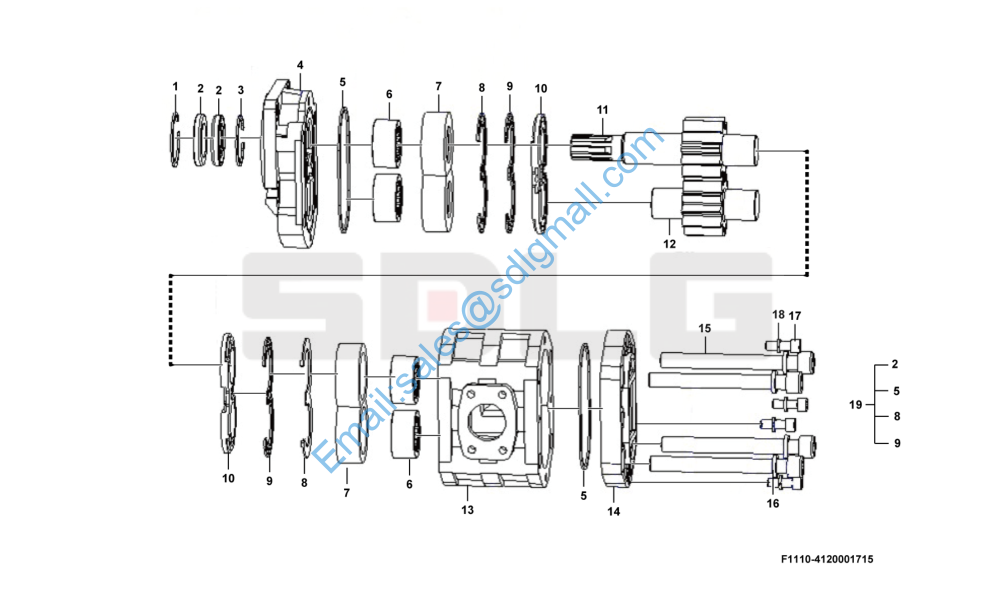

L953 齿轮泵(370142 ) Working hydraulic pump assembly F1110-4120001715

1 4120001715001 挡圈41060100400 Retaining ring Y 1

2 4120001715002 旋转轴唇形密封圈 43020200200 Sealing ring Y 2

3 4120001715003 挡圈41060100300 Retaining ring Y 1

4 4120001715004 前盖21050200110 Cover Y 1

5 4120005081002 环形密封圈44020100700 Sealing ring Y 2

6 4120001715006 滚针轴承 42010100200 Needle bearing Y 4

7 4120001715007 定位套21050900110 Spacer sleeve Y 4

8 4120001715008 耳形挡片21050800110 Retaining ring Y 2

9 4120001715009 耳形密封垫21050700110 Sealing washer Y 2

10 4120001715010 侧板21050600110 Side board Y 2

11 4120001715011 主动齿轮轴21050117010 Drive shaft Y 1

12 4120001715012 从动齿轮轴21050417010 Shaft Y 1

13 4120001715013 泵体21050317010 Pump body Y 1

14 4120001715014 后盖21050500110 Cover Y 1

15 4120001715015 螺钉44010103080 Screw Y 4

16 4120001715016 弹簧垫圈41050200700 Spring washer Y 4

17 4120001715017 螺钉41010101780 Screw Y 4

18 4120001715018 弹簧垫圈41050200500 Spring washer Y 4

19 4120001715019 密封件包 Sealing ring kit Y 1
