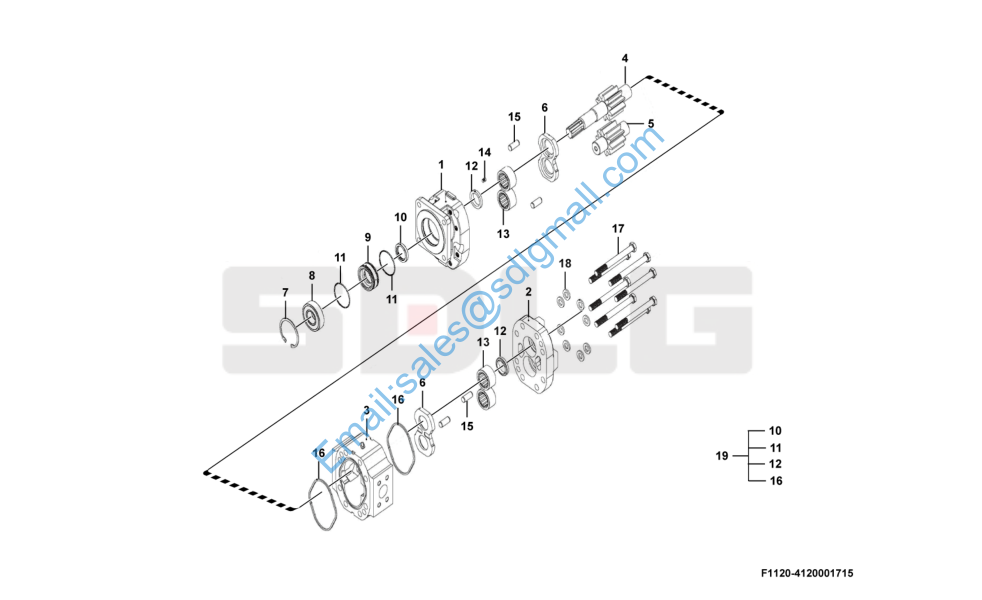

L953 齿轮泵(120104) Working hydraulic pump assembly F1120-4120001715

1 4120001715201 前盖574C-B0204 Cover N 1

2 4120001715202 后盖592C-B0027 Cover N 1

3 4120001715203 泵体577C-B007225005 Pump body N 1

4 4120001715204 主齿024C-B0087-25DR Drive shaft gear N 1

5 4120001715205 从齿996C-B0012-25ID Shaft N 1

6 4120001715206 侧板AZ-0947-TV Side board N 2

7 4120005082210 孔用弹性挡圈565C-00016 Retaining ring N 1

8 4120005082211 外置轴承W58-48 Beaing N 1

9 4120001715207 油封骨架QZ-0961 Sealing ring N 1

10 4120005082212 油封W62-26-10 Sealing ring N 1

11 4120001715208 Ｏ型圈K-2995-164 O-ring N 2

12 4120001715209 二次密封环VA-0558-1XS Sealing ring N 2

13 4120001715210 滚针轴承Q-0921 Needle bearing N 4

14 4120005082214 堵油螺钉S-0280 Screw N 1

15 4120001715211 圆柱销280C-00003 Pin N 4

16 4120001715212 方型密封环TA-2995-252 Sealing ring N 2

17 4120001715213 螺栓W1-89 Screw N 8

18 4120005082221 垫圈W033-2 Washer N 8

19 4120001715214 密封件包 Sealing ring kit N 1
