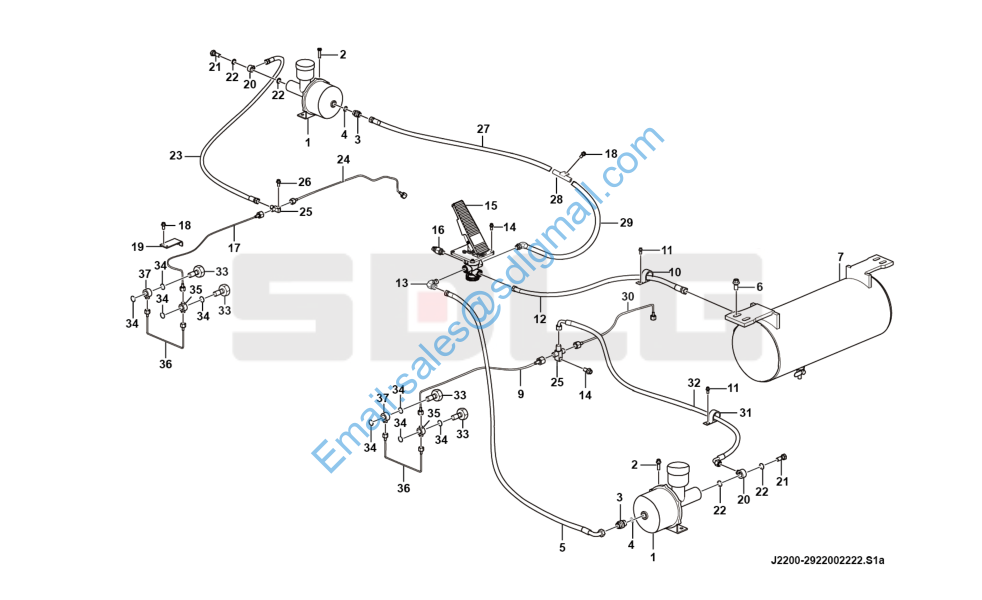

L953 行车制动总成 Travel brake assembly J2200-2922002222

1 4120006350 加力泵LG22-JLB-A Air cylinder N 2

2 4011001294 螺栓GB16674.1-M10*20flZnyc-8.8-480 Screw Y 4

3 29220017601 直接头 Nipple Y 5

4 29220000811 垫圈 Washer Y 5

5 4041002643 软管LGB173-106340 Hose assembly Y 1

6 4011001337 螺栓GB16674.1-M12*20flZnyc-8.8-480 Screw Y 4

7 29220020851 储气罐 Air tank N 1

8 4041002412 管夹LGB169-A20*10 Clamp Y 1

9 29220001301 后桥左油管 Brake pipe Y 1

10 4041002417 管夹LGB169-B20*12.5 Clamp Y 3

11 4011000807 螺栓GB16674-M8*12EpZn-8.8 Bolt Y 5

12 29220023281 软管-2850 Hose assembly Y 1

13 29220016531 弯接头总成 Nipple Y 1

14 4011001295 螺栓GB16674.1-M8*25flZnyc-8.8-480 Screw Y 4

15 4120001795 气制动阀LY60F Brake valve Y 1

16 4120003757 制动灯开关YK209KLA Pressure switch Y 1

17 29220001281 前桥左油管 Brake pipe Y 1

18 4011001297 螺栓GB16674.1-M8*16flZnyc-8.8-480 Screw Y 4

19 29220001121 前桥油管防护板 Protecting plate Y 2

20 29220001241 加力泵接头块 Nipple Y 2

21 29220001231 加力泵管接头 Bolt Y 2

22 4030000551 O形圈 O-ring Y 4

23 4041001027 软管LGB153-202046 Hose assembly Y 1

24 29220001291 前桥右油管 Brake pipe Y 1

25 29220000131 三通接头 Three-way nipple Y 2

26 4011001301 螺栓GB16674.1-M8*30flZnyc-8.8-480 Screw Y 2

27 4041002590 软管LGB173-006110 Hose Y 1

28 29220022371 连接块 Block Y 1

29 29220023081 软管-570 Hose assembly Y 1

30 29220001311 后桥右油管 Brake pipe Y 1

31 4041002409 管夹LGB169-A10*10 Clamp Y 1
32 4041001195 软管LGB154-202200 Hose assembly Y 1
33 29220001251 制动器管接头 Nipple Y 8
34 4030000552 O形圈 O-ring Y 16
35 29220001271 制动器三通块 Block Y 4
36 29220001321 桥油管 Brake pipe Y 4
37 29220001261 制动器接头块 Block Y 4
