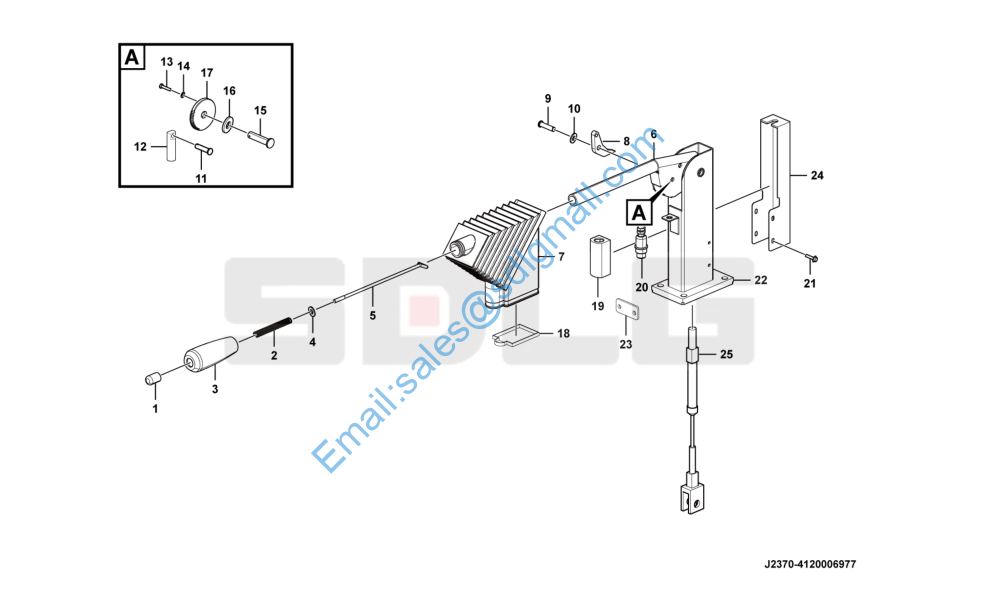

L953 操纵机构总成(130501) Control mechanism J2370-4120006977

1 4110002042001 镀铬头LGS9530001 Release button Y 1

2 4110002042002 弹簧LGS9530004 Spring Y 1

3 4120002616001 手柄套LGS9530007 Sleeve Y 1

4 4110002042004 平垫Φ8*Φ17*1.5 PD-002-1 Washer Y 1

5 4120003754003 钢丝钩LGS9530009 Hook Y 1

6 4120003754002 手柄焊合件LGS9530000b Handle Y 1

7 4120003755003 防尘套LGS9530015 Rubber cover Y 1

8 4110002042008 棘钩LGS9530008 Hanger Y 1

9 4110002042007 销子Φ8*33 LGS9530006 Pin Y 1

10 4110002042019 平垫Φ8 PD-002 Washer Y 2

11 4110002042009 销子Φ8*28 LGS9530003 Pin Y 1

12 4110002042010 内接头LGS9530013 Nipple Y 1

13 4110002042014 螺栓M8-15 LGS9530011 Screw Y 1

14 4110002042020 弹垫Φ8 TD-002 Washer Y 1

15 4110002042012 销子Φ12-51 LGS9530005 Pin Y 1

16 4110002042013 平垫Φ12 PD-004 Washer Y 1

17 4110002042011 棘轮LGS9530002 Ratchet Y 1

18 4120003755005 防尘套固定圈LGS9530017 Belt retainer Y 1

19 4110002042016 开关罩LGS9530010 Switch box Y 1

20 4110002042017 开关总成LGS9530012-001 Switch kit Y 1

21 4120005364001 螺栓M6-12 LGC9530014 Screw Y 6

22 4120003755002 手刹盒焊合件LGS9530000a Brake chamber N 1

23 4120003754005 压线片LGS9530014 Clamping plate Y 1

24 4120003755004 盒罩LGS9530016 Cover N 1

25 4120006977001 拉索总成4120006977-01 Control cable Y 1
