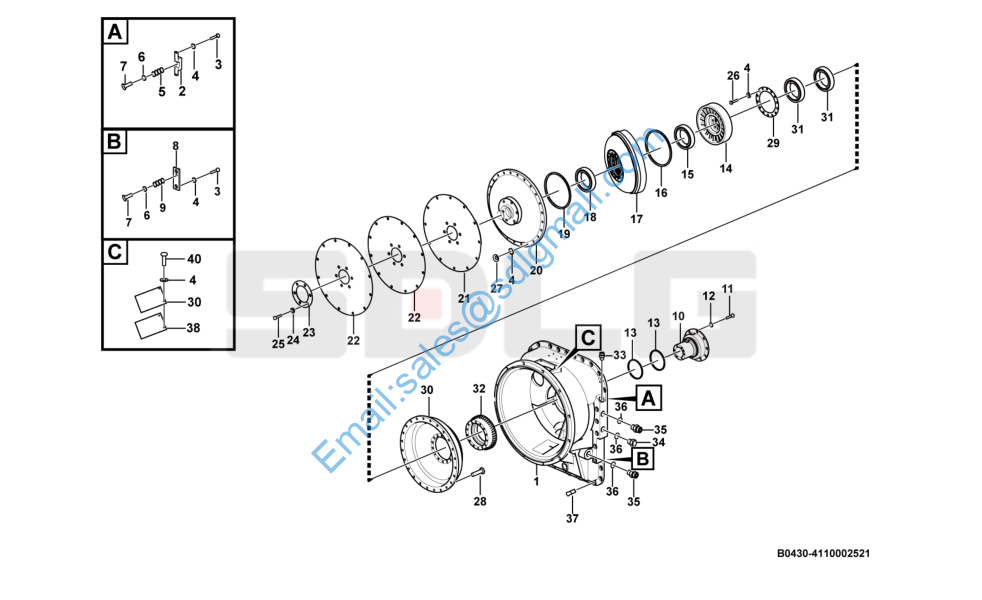

L953 变矩器(371344) Torque converter B0430-4110002521

1 4110002522007 壳体ZL50.2.1-7（定位销孔Ф15） Housing Y 1

2 4110000011237 阀盖ZL50.2.1-23 Valve cap Y 1

3 4011000723 螺栓GB5783-M8*20-8.8 Bolt Y 4

4 4015000036 垫圈GB93-8-65Mn Spring washer Y 40

5 4110000011243 进油阀弹簧ZL50.2.1-24 Spring Y 1

6 4110000011239 调压垫ZL50.2.1-21 Shim Y 1

7 4110000011240 进油阀杆ZL50.2.1-22 Valve rod Y 2

8 4110000011242 压板ZL50.2.1-26 Plate Y 1

9 4110000011238 回油阀弹簧ZL50.2.1-27 Spring Y 1

10 4110002521002 导轮座ZL50.2.1-14-6g Stator housing Y 1

11 4011000663 螺栓GB21-M10*25EpZn-8.8 Bolt Y 9

12 4015000025 垫圈GB93-10-65Mn Spring washer Y 9

13 4110000011222 密封环ZL50.2.1-12 Ring Y 2

14 4110002521003 导轮ZL50.2.1-8-6g Stator Y 1

15 4021000359 P-滚动轴承GB276-61914 Ball bearing Y 1

16 4015000010 挡圈GB893.1-100-65Mn Snap ring Y 1

17 4110002521005 涡轮组ZL50.2.1-6g(带卡簧槽) Turbine Y 1

18 4021000018 滚动轴承GB276-6210 Ball bearing Y 1

19 4110000011248 胶圈ZL50.2.1-4 O-ring Y 1

20 4110000011249 罩轮ZL50.2.1-2 Cover Y 1

21 4110000011251 压板ZL50.2.1.2-2 Cover plate N 1

22 4110000011253 弹性板ZL50.2.1.2-1 Plate Y 2

23 4110000011252 圆垫板ZL50.2.1-3 Gasket Y 1

24 4015000026 垫圈GB93-12-65Mn Spring washer Y 6

25 4011000197 螺栓GB5783-M12*25EpZn-8.8 Bolt Y 6

26 4014000113 螺钉GB70.1-M8*25EpZn-8.8 Screw Y 14

27 4013000354 螺母GB41-M8 Nut Y 24

28 4011000195 螺栓GB5783-M8*35EpZn-8.8 Bolt Y 24

29 4110000011230 垫片ZL50.2.1-16 Shim Y 1

30 4110000011228 泵轮ZL50.2.1-17 Impeller Y 1

31 4021000076 滚动轴承GB276-6017 Ball bearing Y 2
32 4110000011227 齿轮ZL50.2.1-10 Gear Y 1
33 4110000011236 油温表接头 ZL50.2.1-9 Nipple Y 1
34 4110000011241 螺塞ZL50.2.1-29 Plug Y 1
35 4110000011234 管接头ZL50.2.1-15 Nipple Y 2
36 4110000011235 O型密封圈30×3.1 GB1235-76 O-ring Y 3
37 4110000011244 接头ZL50.2.1-19 Nipple Y 1
38 4110000011226 胶垫ZL50.2.1-6 Gasket Y 1
39 4110000011225 垫板ZL50.2.1-5 Plate Y 1
40 4011000102 螺栓GB5783-M8*16EpZn-8.8 Bolt Y 4
