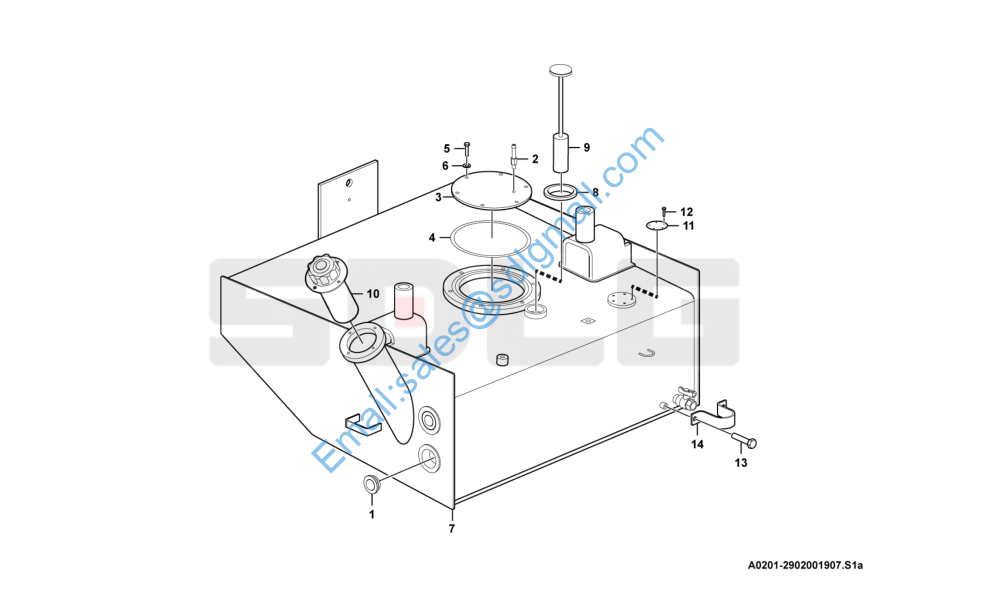

L948F 燃油箱总成 Fuel tank A0201-2902001907

1 4110000807 圆形油标YB-M42*1.5 Level gauge Y 2

2 29020006561 透气钢管 Tube Y 1

3 29020006571 盖板 Cover plate Y 1

4 4030000022 O形圈GB3452.1-200*7.00G O-ring Y 1

5 4011001270 螺栓GB5783-M10*35flZnyc-8.8-480 Screw Y 6

6 4015000433 垫圈GB97.1-10flZnyc-300HV-480 Washer Y 6

7 29020019061 燃油箱体 Fuel tank N 1

8 3010900068 垫圈 Washer Y 1

9 29020015521 滤油器总成 Fuel filter Y 1

10 4110002747 带锁加油滤清器 Oil filter N 1

11 29020006841 法兰盖 Cover plate Y 1

12 4014000047 螺钉GB818-M5*8EpZn-4.8 Screw Y 5

13 4011001295 螺栓GB16674.1-M8*25flZnyc-8.8-480 Screw Y 2

14 29020015431 护板 Protecting plate Y 1
