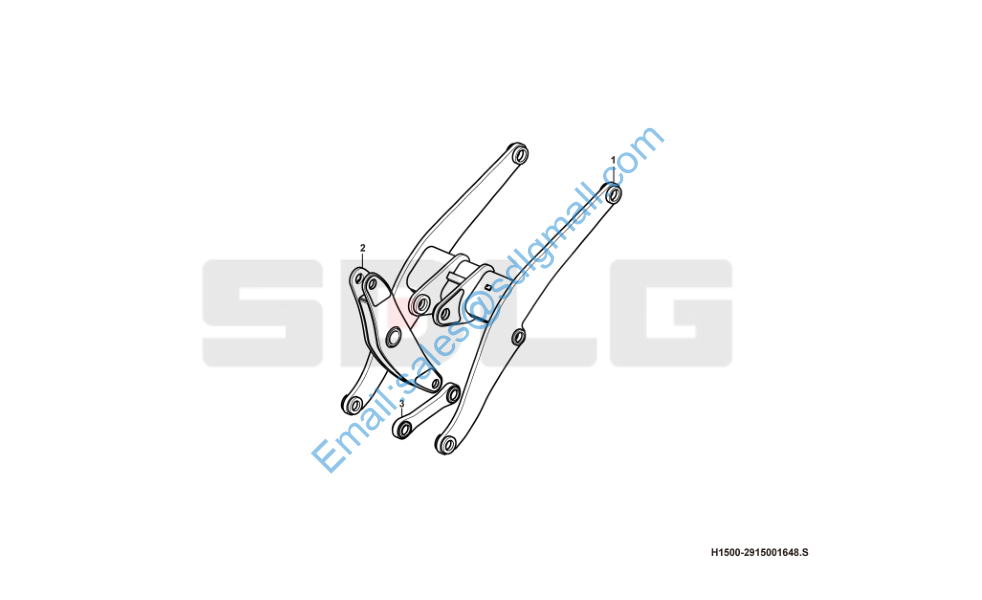

L946 连杆机构 Linkage system H1500-2915001648

1 29150016492 动臂 Lifting arm Y 1
2 29150010321 摇臂 Rocker arm Y 1
3 29150010371 连杆 Connecting rod Y 1

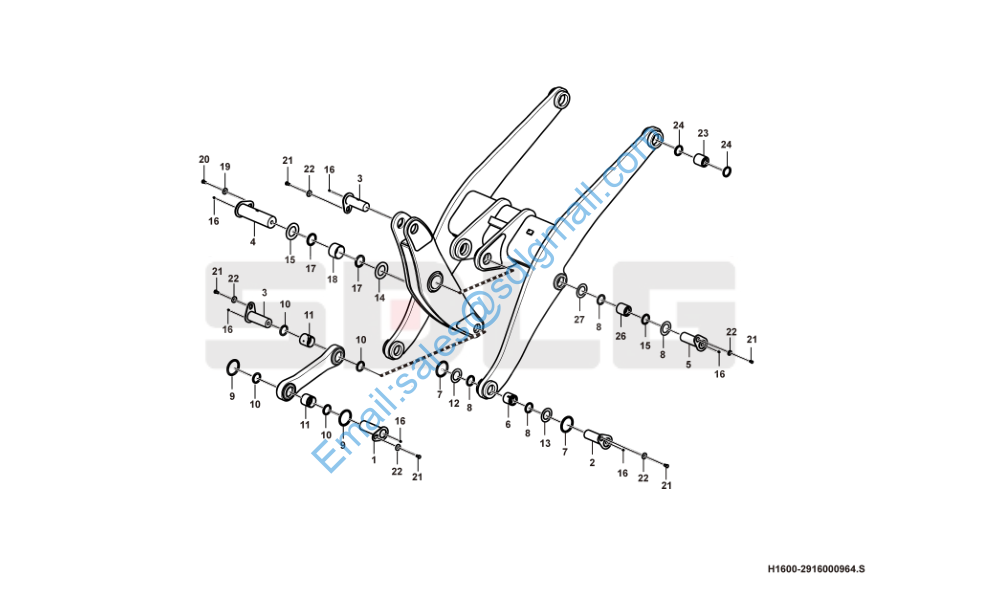

工作装置附件 Accessories H1600-2916000964

1 4043000346 销轴LGB301-70*95*170-40Cr Weld pin Y 1

2 4043000112 销轴LGB301-60*95*170-40Cr Weld pin Y 2

3 4043000418 销轴LGB301-70*100*185-40Cr Weld pin Y 2

4 4043000420 销轴LGB301-100*148*280/2-40Cr Weld pin Y 1

5 4043000725 销轴LGB301-60*85*150/2G-40Cr Weld pin Y 2

6 4043000122 轴套LGB302-60*60A2 Bushing Y 2

7 4043000129 O形圈LGB308-98*8 O-ring Y 4

8 4043000127 防尘圈LGB307-60 Sealing ring Y 8

9 4043000350 O型圈LGB308-108*8 O-ring Y 2

10 4043000349 防尘圈LGB307-70 Sealing ring Y 4

11 4043000421 轴套LGB302-70*60A2 Bushing Y 2

12 4043000126 垫片LGB303-60*100*2 Shim Y 2

13 4043000125 垫片LGB303-60*100*1 Shim Y 2

14 4043000353 垫片LGB303-100*180*1 Shim Y 1

15 4043000354 垫片LGB303-100*180*2 Shim Y 1

16 4030000065 油杯JB7940.1-M10*1 Lubricating nipple Y 8

17 4043000095 防尘圈LGB307-100 Sealing ring Y 2

18 4043000419 轴套LGB302-100*137A2 Bushing Y 1

19 4040000051 垫圈LGB001-16flZnyc-480 Washer Y 1

20 4011001261 螺栓GB5783-M16*30flZnyc-8.8-480 Screw Y 1

21 4011001241 螺栓GB5783-M12*25flZnyc-8.8-480 Screw Y 7

22 4040000050 垫圈LGB001-12flZnyc-480 Washer Y 7

23 4043000439 轴套LGB302-85*80C2 Bushing Y 2

24 4043000056 防尘圈LGB307-85 Sealing ring Y 4

25 4043000151 垫片LGB303-60*120*1 Shim Y 2

26 4043000121 轴套LGB302-60*50A2 Bushing Y 2

27 4043000141 垫片LGB303-60*120*2 Shim Y 2
