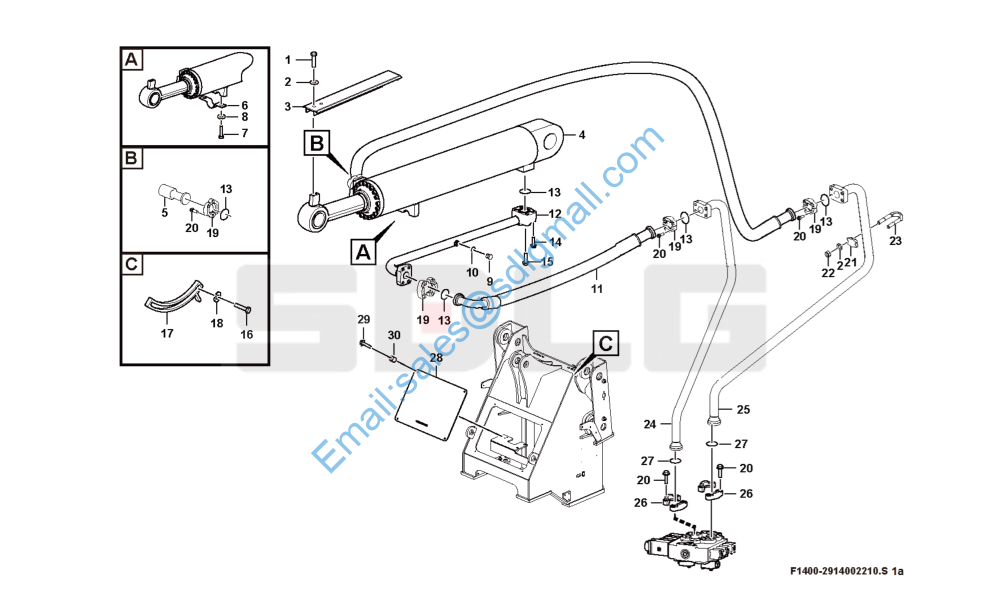

L946 转斗缸总成 Tilt cylinder assembly F1400-2914002210

1 4011001238 螺栓GB5783-M10*20flZnyc-8.8-480 Screw Y 2

2 4015000426 垫圈GB96.1-10flZnyc-300HV-480 Washer Y 10

3 29140014021 放平护板 Indicator plate Y 1

4 4120004250 转斗油缸HSGF-165*80*502-954A Tilt cylinder Y 1

5 29140017421 转斗缸大腔胶管 Hose assembly Y 1

6 29130000111 管夹 Clamp Y 1

7 4011001247 螺栓GB5783-M8*20flZnyc-8.8-480 Screw Y 2

8 4015000430 垫圈GB97.1-8flZnyc-300HV-480 Washer Y 2

9 4041000774 螺塞LGB135-01422 Plug Y 1

10 4041000767 O形圈LGB168-11124 O-ring Y 1

11 29140017431 转斗缸小腔胶管 Hose assembly Y 1

12 29140012011 转斗缸大腔钢管 Pipe Y 1

13 4030000026 O形圈GB3452.1-32.5*3.55G O-ring Y 5

14 4011001288 螺栓GB16674.1-M10*50flZnyc-8.8-480 Screw Y 2

15 4011001298 螺栓GB16674.1-M10*55flZnyc-8.8-480 Screw Y 2

16 4011001337 螺栓GB16674.1-M12*20flZnyc-8.8-480 Screw Y 2

17 29140007551 动臂指示板 Indicator plate Y 1

18 4015000427 垫圈GB96.1-12flZnyc-300HV-480 Washer Y 2

19 4041000043 分体法兰LGB117-310490 Flange half Y 4

20 4011001300 螺栓GB16674.1-M10*30flZnyc-8.8-480 Screw Y 24

21 4041001018 底板LGB160-3040 Bracket Y 4

22 4013000370 螺母GB6170-M10flZnyc-8-480 Nut Y 16

23 29130018011 U型螺栓 Screw Y 4

24 29140020821 转斗联大腔钢管 Pipe Y 1

25 29140020841 转斗联小腔钢管 Pipe Y 1

26 4041000027 分体法兰LGB117-312551 Flange half Y 2

27 4030000029 O形圈GB3452.1-37.5*3.55G O-ring Y 2

28 29140020801 前盖板 Plate Y 1

29 4011001301 螺栓GB16674.1-M8*30flZnyc-8.8-480 Screw Y 4
