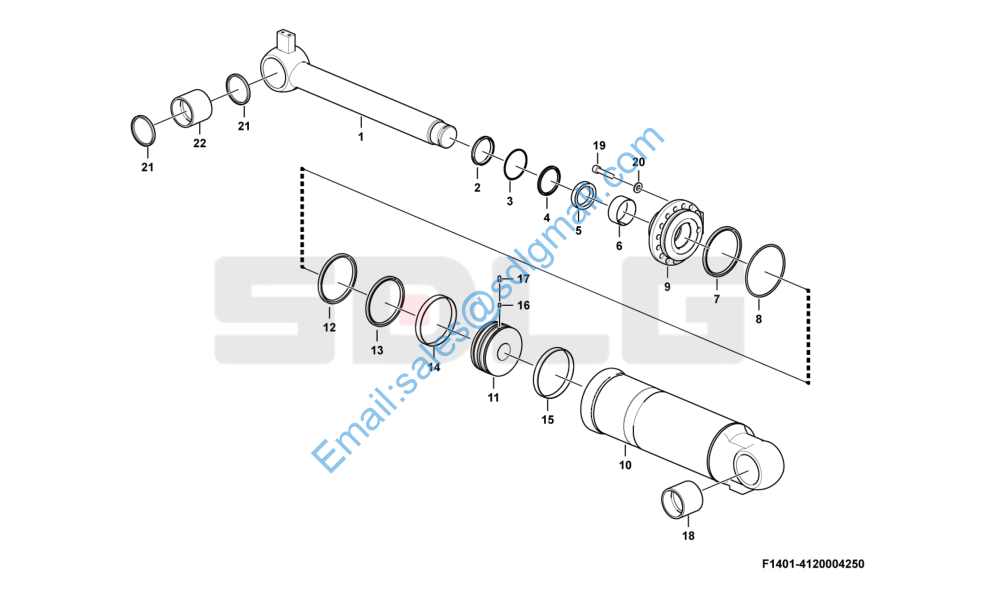

L946 转斗油缸（3713CH） Tilt cylinder F1401-4120004250

1 4120004250001 活塞杆 Piston rod Y 1

2 4120004250002 密封件包 Sealing ring kit Y 1

3 4120004250002 密封件包 Sealing ring kit Y 1

4 4120004250002 密封件包 Sealing ring kit Y 1

5 4120004250002 密封件包 Sealing ring kit Y 1

6 4120004250002 密封件包 Sealing ring kit Y 1

7 4120004250002 密封件包 Sealing ring kit Y 1

8 4120004250002 密封件包 Sealing ring kit Y 1

9 4120004250003 缸盖 Cover Y 1

10 4120004250004 缸体 Cylinder tube Y 1

11 4120004250005 活塞 Piston Y 1

12 4120004250002 密封件包 Sealing ring kit Y 1

13 4120004250002 密封件包 Sealing ring kit Y 1

14 4120004250002 密封件包 Sealing ring kit Y 1

15 4120004250002 密封件包 Sealing ring kit Y 2

16 4090000168 钢球GB308-5-GCr6 Ball Y 1

17 4014000113 螺钉GB70.1-M8*25EpZn-8.8 Screw Y 1

18 4120004250008 衬套 Bushing Y 1

19 4011000612 P-螺栓GB5783-M16*55EpZn-8.8 Screw Y 14

20 4015000098 垫圈GB93-16-65Mn Spring washer Y 14

21 4120004250012 挡块 Block Y 2

22 4021000043 关节轴承GB9163-GE70ES-2RS Spherical plain bearing Y 1
