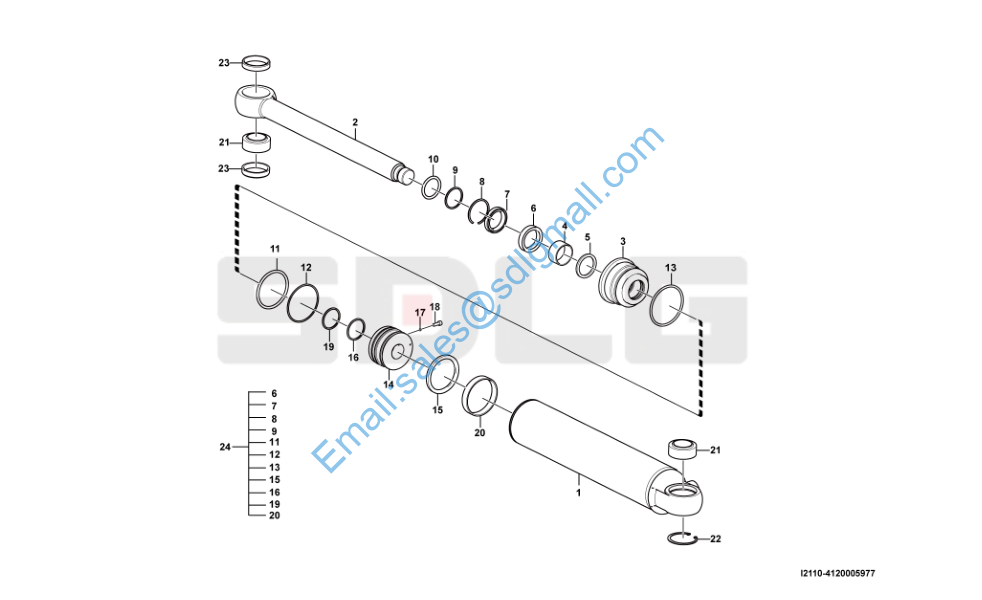

L946 转向油缸(3713CH) Steering cylinder I2110-4120005977

1 4120005977002 缸筒总成24A139010 Cylinder tube Y 1
2 4120005977003 活塞杆总成24A114080 Piston rod Y 1
3 4120007360003 缸盖24C105080 Cylinder head Y 1
4 4120006603004 衬套24S245201 Bushing Y 1
5 4120006612004 钢丝挡圈-孔用24C090080 Retaining ring Y 1
6 4120006612005 密封件-缓冲24H004514 O-ring N 1
7 4120006603007 密封件-活塞杆24F204503 Sealing ring kit N 1
8 4120008301003 挡圈-U形圈24E00451C Retaining ring N 1
9 4120006603009 密封件-防尘24D204502 Sealing ring kit N 1
10 4120006612006 钢丝挡圈-孔用24C090110 Piston Y 1
11 4120006310007 O形圈24K10750A O-ring N 1
12 4120008298008 挡圈-O形圈24M10800C Sealing ring N 1
13 4120006310009 O形圈24K308001 O-ring N 1
14 4120007360005 活塞24C106080 Piston Y 1
15 4120006310016 密封件-活塞24P208002 Sealing ring N 1
16 4120006603015 O形圈24K10450A O-ring N 1
17 4120006603018 钢球24U004001 Ball Y 1
18 4120006316010 螺钉-内六角凹端紧定24T906121 M6*12L Screw Y 1
19 4120007376007 挡圈-O形圈24M10500C O-ring N 1
20 4120007360006 支承环24G208031 Support ring N 2
21 4120006629011 关节轴承24U104001 Spherical plain bearing N 2
22 4120000560515 弹性挡圈-孔用-A型24T006201 Retaining ring Y 1
23 4120000560514 挡环24C014030 Retaining ring Y 1
24 4120005977001 密封件维修包24A103070S Sealing kit Y 1
