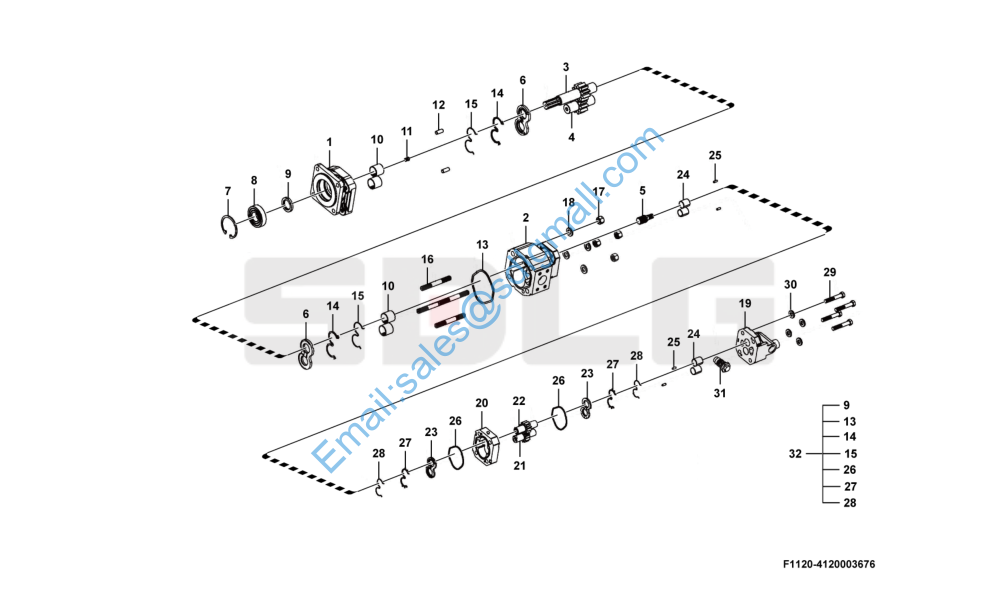

L946 工作泵总成(120104) Working hydraulic pump assembly F1120-4120003676

1 4120001058201 前盖163A008T Cover N 1

2 4120003676201 HPT3/124中间体163E491T Centering block N 1

3 4120003676202 一级主齿163F076T Drive shaft N 1

4 4120003676203 一级从齿163G031T Shaft N 1

5 4120005081204 接轴163H004T Shaft N 1

6 4120005082209 侧板163J002T Side board N 2

7 4120005082210 孔用弹性挡圈565C-00016 Retaining ring N 1

8 4120005082211 外置轴承W58-48 Beaing N 1

9 4120001058204 油封W62-26-10 Sealing ring Y 1

10 4120005082213 滑动轴承002B005T Plain bearing N 4

11 4120005082214 堵油螺钉S-0280 Screw N 1

12 4120005082215 圆柱销008A0006 Pin N 2

13 4120005082216 O型密封圈001E0006 O-ring N 1

14 4120005082217 E型密封圈006E003T Sealing ring N 2

15 4120005082218 E型挡圈007E002T Retaining ring N 2

16 4120003676204 双头螺柱002A0020 Stud N 4

17 4120005082220 螺母004A0004 Nut N 4

18 4120005082221 垫圈W033-2 Washer N 4

19 4120004423218 后盖592C-L0015-2063 Cover N 1

20 4120004423219 二级泵体577-01109-05 Pump body N 1

21 4120004423220 二级主齿996C-L0039-05DR Drive shaft N 1

22 4120004423221 二级从齿996-01103-05ID Shaft N 1

23 4120005081210 侧板947-01105 Side board N 2

24 4120005081211 滑动轴承921-01108 Plain bearing N 4

25 4120005081212 圆柱销280-1971-071 Pin N 4

26 4120005081213 方型密封圈TA-2995-152 Sealing ring N 2

27 4120005081214 Ｅ型密封圈947-01107 Sealing ring N 2

28 4120005081215 Ｅ型挡圈947-01106 Retaining ring N 2

29 4120004423222 螺栓W1-88 Screw N 4

30 4120005081217 垫圈W033-1 Washer N 4

31 4120004423223 溢流阀5514C-00001-035 Valve Y 1
32 4120001058206 密封件包 Sealing ring kit Y 1
