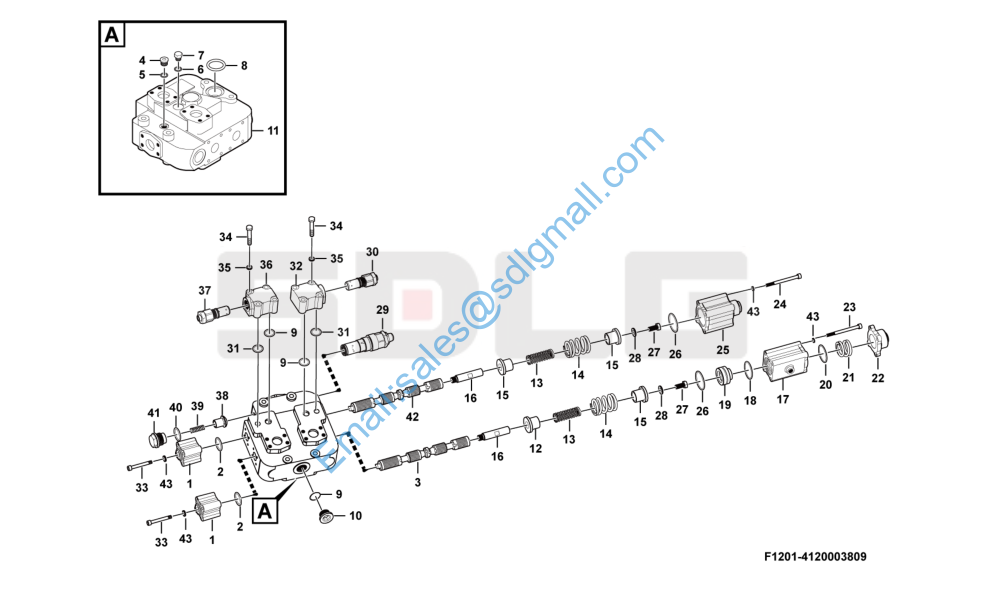

L946 多路阀(331005) Control valve assembly F1201-4120003809

1 4120005199003 小端盖YGDF-25-05 Cover Y 2

2 4030000223 O形圈GB3452.1-31.5*2.65G O-ring Y 2

3 4120005199002 动臂阀杆YGDF-32-03b Spool N 1

4 4120005199025 测压口堵头GDF-32-18 Plug Y 1

5 4030000986 O形圈GB3452.1-11.8*2.1G O-ring Y 1

6 4030000011 O形圈GB1235-20*2.4 O-ring Y 1

7 4120001054222 螺塞D32-3 Plug Y 1

8 4030000760 O形圈GB1235-50*3.1 O-ring Y 1

9 4030000013 O形圈GB1235-32*3.1 O-ring Y 3

10 4120005199028 螺塞DF-32-20A Plug Y 1

11 4120003809004 阀体YGDF-32-01B1 Valve body Y 1

12 4120005199024 弹簧座YGDF-32-04 Spring seat N 1

13 4120001054215 弹簧D32-7 Spring Y 2

14 4120005199012 弹簧YGDF-25-09 Spring N 2

15 4120005199014 弹簧座YGDF-25-11 Spring seat N 3

16 4120005199015 阀杆接头D32-21 Joint Y 2

17 4120005199023 端盖YGDF-25-03 Cover Y 1

18 7100002101 O形圈GB3452.1-54.5*2.65G O-ring Y 1

19 4120005199022 活塞YGDF-32-05 Piston N 1

20 4030000033 O形圈GB3452.1-46.2*3.55G O-ring Y 1

21 4120005199021 复位弹簧YGDF-25-10 Spring N 1

22 4120005199020 压盖YGDF-25-06 Plate N 1

23 4014000461 螺钉GB70.1-M8*140-8.8 Screw Y 4

24 4014000460 螺钉GB70.1-M8*100-8.8 Screw Y 4

25 4120005199011 端盖YGDF-32-12 Cover Y 1

26 4030000707 O形圈GB1235-55*3.1 O-ring Y 2

27 4120005199017 螺栓M12×20 GB30-76 Screw Y 2

28 4015000313 垫圈GB97.1-12-300HV Washer Y 2

29 4120008182001 安全阀XDY32G02-00A-16 Valve Y 1

30 4120001133027 高压过载阀D32A.1-00b-18 Valve Y 1

31 4030000981 O形圈GB1235-28*3.1 O-ring Y 2

32 4120002432430 过载阀阀体ZL50106C1-01A Valve Y 1

33 4014000459 螺钉GB70.1-M8*65-8.8 Screw Y 16

34 2808000112012 螺栓M10*60-8.8（GB5782-86） Screw Y 8

35 4015000025 垫圈GB93-10-65Mn Spring washer Y 8

36 4120002432431 过载补油阀阀体 ZL50106C1-01 Valve Y 1

37 4120002038161 低压过载阀XDYB20G01-00E-12 Valve Y 1

38 4120005199009 单向阀GDF-32-08 Direction valve Y 2

39 4120005199008 单向阀弹簧GDF-32-07 Valve spring N 2

40 4030000757 O形圈GB3452.1-31.5*3.55G O-ring Y 2

41 4120005199007 阀盖GDF-32-05 Valve cover N 2

42 4120003809005 转斗阀杆YGDF-32-06b Valve rod Y 1
