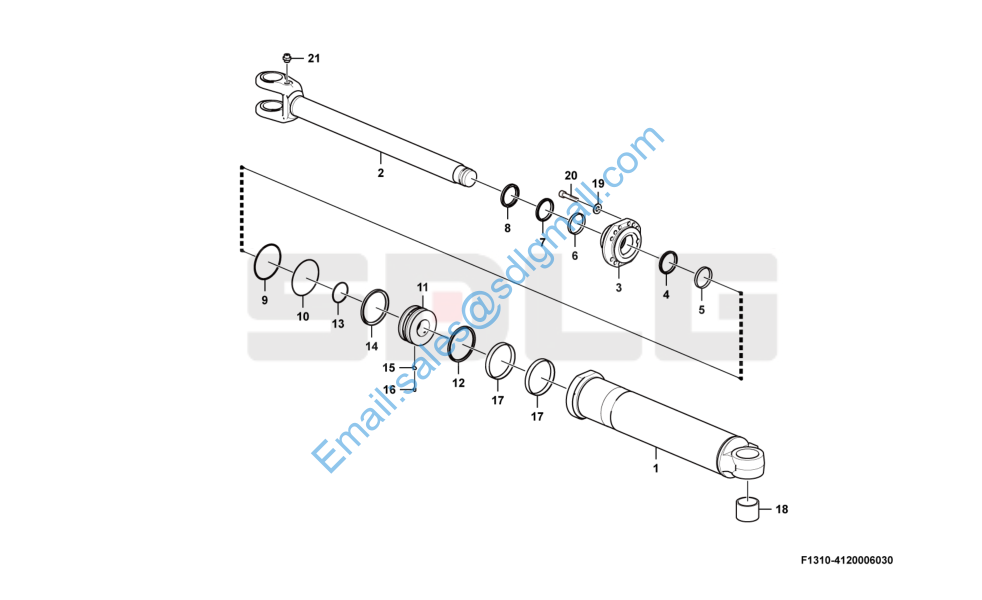

L946 动臂油缸(3713CH) Lifting cylinder assembly F1310-4120006030

1 4120006030012 缸筒总成24A133370 Cylinder body Y 1

2 4120006030002 活塞杆总成24A111980 Piston rod Y 1

3 4120006030003 缸盖24A170650 Cylinder head Y 1

4 4120006030004 密封件包 Sealing ring kit Y 1

5 4120006030004 密封件包 Sealing ring kit Y 1

6 4120006030004 密封件包 Sealing ring kit Y 1

7 4120006030004 密封件包 Sealing ring kit Y 1

8 4120006030004 密封件包 Sealing ring kit Y 1

9 4120006030004 密封件包 Sealing ring kit Y 1

10 4120006030004 密封件包 Sealing ring kit Y 1

11 4120006030011 活塞24A180510 Piston Y 1

12 4120006030004 密封件包 Sealing ring kit Y 1

13 4120006030004 密封件包 Sealing ring kit Y 1

14 4120006030004 密封件包 Sealing ring kit Y 1

15 4090000168 钢球GB308-5-GCr6 Ball Y 1

16 4120006030005 螺钉-内六角圆柱头24T508201 Screw Y 1

17 4120006030004 密封件包 Sealing ring kit Y 2

18 4120006030013 轴套24C034020 Bushing Y 1

19 4120006030007 垫圈-标准型弹簧24T401202 Washer Y 16

20 4120006030008 螺钉-内六角圆柱头24T512455 Screw Y 16

21 4120006030009 固定座24C003030 Housing Y 1
