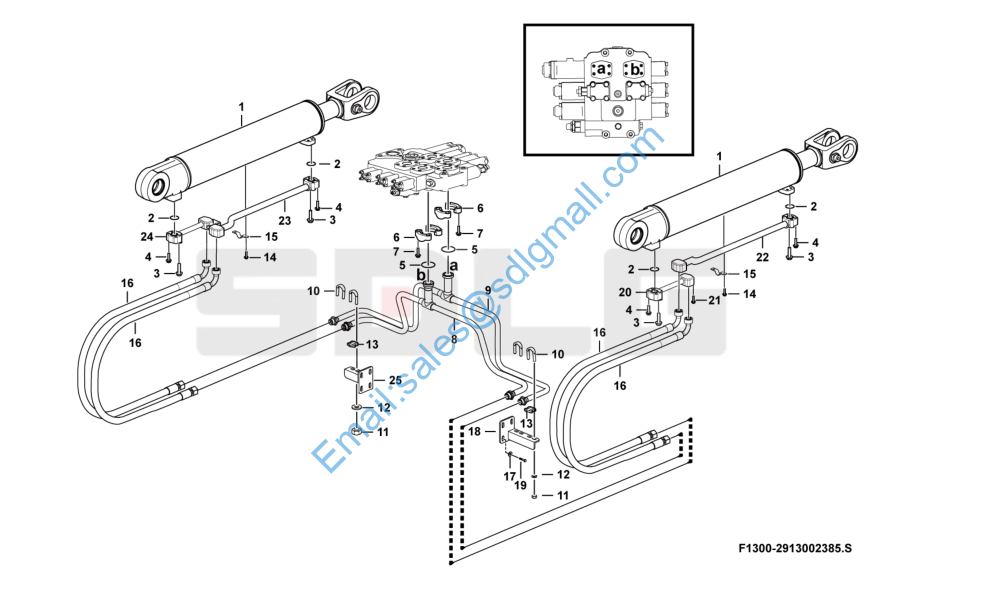

L946 举升缸总成 Lifting cylinder system F1300-2913002385

1 4120006030 动臂油缸HSGF-140*80*779-1234 Boom cylinder Y 2

2 4030000279 O形圈GB3452.1-25.0*3.55G O-ring Y 4

3 4011001288 螺栓GB16674.1-M10*50flZnyc-8.8-480 Screw Y 8

4 4011001381 螺栓GB16674.1-M10*35flZnyc-8.8-480 Screw Y 8

5 4030000029 O形圈GB3452.1-37.5*3.55G O-ring Y 2

6 4041000056 分体法兰LGB117-312550 Flange half Y 2

7 4011001300 螺栓GB16674.1-M10*30flZnyc-8.8-480 Screw Y 8

8 29130023871 动臂联大腔钢管 Pipe Y 1

9 29130023901 动臂联小腔钢管 Pipe Y 1

10 4041001017 U形螺栓LGB159-13040 U-bolt Y 4

11 4013000370 螺母GB6170-M10flZnyc-8-480 Nut Y 8

12 4015000433 垫圈GB97.1-10flZnyc-300HV-480 Washer Y 8

13 4041001018 底板LGB160-3040 Bracket Y 4

14 4011001296 螺栓GB16674.1-M8*20flZnyc-8.8-480 Screw Y 4

15 29130000111 管夹 Clamp Y 2

16 29130018941 动臂缸胶管 Rubber tube Y 4

17 4015000426 垫圈GB96.1-10flZnyc-300HV-480 Washer Y 6

18 29130004091 固定支架A Bracket Y 1

19 4011001268 螺栓GB5783-M10*16flZnyc-8.8-480 Screw Y 6

20 29130018871 左动臂缸大腔钢管 Pipe Y 1

21 4011001238 螺栓GB5783-M10*20flZnyc-8.8-480 Screw Y 2

22 29130018891 左动臂缸小腔钢管 Pipe Y 1

23 29130018921 右动臂缸小腔钢管 Pipe Y 1

24 29130018911 右动臂缸大腔钢管 Pipe Y 1
