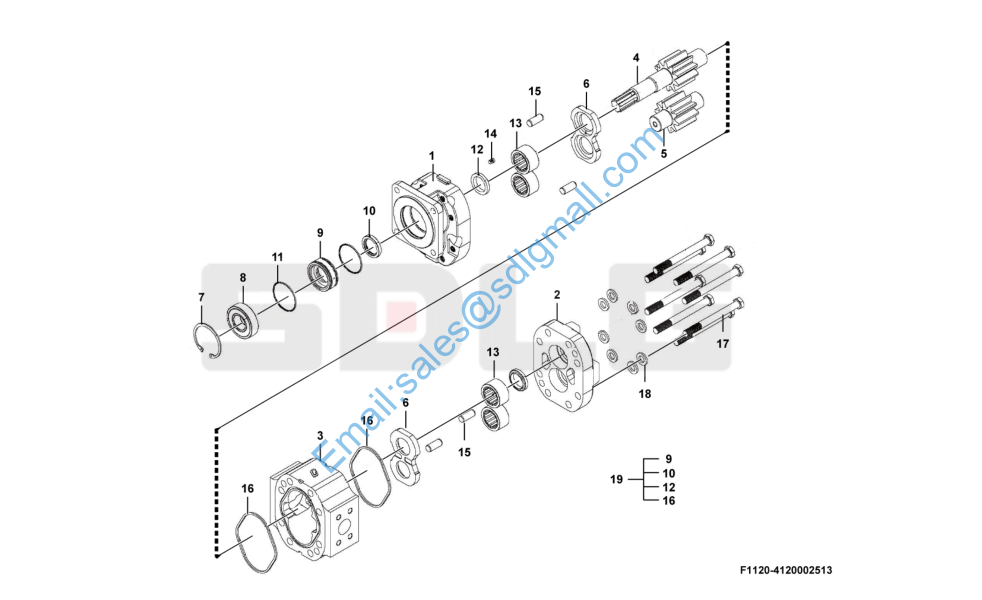

L956 齿轮泵(43803) Gear pump F1120-4120002513

1 4120001715001 挡圈41060100400 Retaining ring Y 1

2 4120001715002 旋转轴唇形密封圈 43020200200 Sealing ring Y 2

3 4120001715004 前盖21050200110 Cover Y 1

4 4120001715003 挡圈41060100300 Retaining ring Y 1

5 4120005081002 环形密封圈44020100700 Sealing ring Y 2

6 4120001715006 滚针轴承 42010100200 Needle bearing Y 4

7 4120001715007 定位套21050900110 Spacer sleeve Y 4

8 4120001715008 耳形挡片21050800110 Retaining ring Y 2

9 4120001715009 耳形密封垫21050700110 Sealing washer Y 2

10 4120001715010 侧板21050600110 Side board Y 2

11 4120002513007 主动齿轮轴HGP3160矩 Drive shaft Y 1

12 4120002513008 从动齿轮轴HGP3160 Shaft Y 1

13 4120002513009 泵体HGP3160 Pump body Y 1

14 4120001715014 后盖21050500110 Cover Y 1

15 4120002513010 螺钉M20x188 01017-12088 Screw Y 4

16 4120001715016 弹簧垫圈41050200700 Spring washer Y 4

17 4014000090 螺钉GB70.1-M12*35EpZn-10.9 Screw N 4

18 4015000026 垫圈GB93-12-65Mn Spring washer Y 4

19 4120002513013 密封件包 Sealing ring kit Y 1
