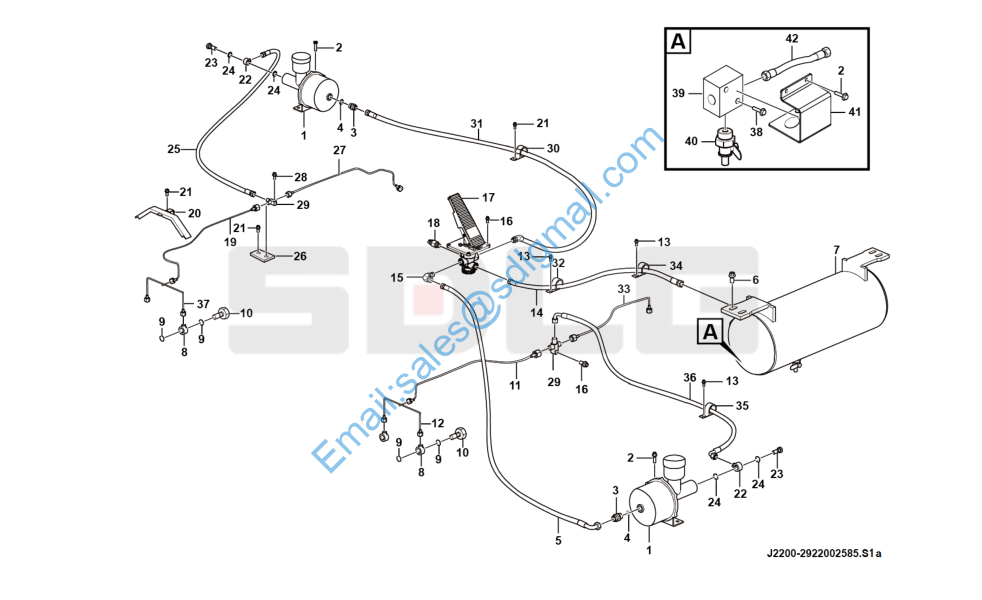

L956 行车制动总成 Travel brake system J2200-2922002585

1 4120006350 加力泵LG22-JLB-A Air cylinder N 2

2 4011001294 螺栓GB16674.1-M10*20flZnyc-8.8-480 Screw Y 8

3 29220017601 直接头 Nipple Y 5

4 29220000811 垫圈 Washer Y 5

5 4041002643 软管LGB173-106340 Hose assembly Y 1

6 4011001337 螺栓GB16674.1-M12*20flZnyc-8.8-480 Screw Y 4

7 29220025861 储气罐 Air tank N 1

8 29220009021 接头块 Block Y 8

9 4030000552 O形圈 O-ring Y 16

10 29220001251 制动器管接头 Nipple Y 8

11 29220021991 后桥左油管 Brake pipe Y 1

12 29220022031 后桥油管 Brake pipe Y 2

13 4011001313 螺栓GB16674.1-M8*12flZnyc-8.8-480 Screw Y 5

14 4041002644 软管LGB173-106280 Hose assembly Y 1

15 29220016531 弯接头总成 Nipple Y 1

16 4011001295 螺栓GB16674.1-M8*25flZnyc-8.8-480 Screw Y 4

17 4120006889 气制动阀HP3514AD-1(LinG)35゜A Brake valve Y 1

18 4120003757 制动灯开关YK209KLA Pressure switch Y 1

19 29220021931 前桥左油管 Brake pipe Y 1

20 29220021891 桥油管护板 Plate Y 2

21 4011001297 螺栓GB16674.1-M8*16flZnyc-8.8-480 Screw Y 6

22 29220001241 加力泵接头块 Nipple Y 2

23 29220001231 加力泵管接头 Bolt Y 2

24 4030000551 O形圈 O-ring Y 4

25 4041002549 软管LGB153-202050 Hose assembly Y 1

26 29220011811 固定板 Anchor plate Y 1

27 29220021951 前桥右油管 Brake pipe Y 1

28 4011001301 螺栓GB16674.1-M8*30flZnyc-8.8-480 Screw Y 2

29 29220009031 三通接头 Three-way nipple Y 2

30 4041002413 管夹LGB169-A25*10 Clamp Y 1

31 4041002832 软管LGB173-106190 Hose assembly Y 1

32 4041002417 管夹LGB169-B20*12.5 Clamp Y 3

33 29220022011 后桥右油管 Brake pipe Y 1

34 4041002412 管夹LGB169-A20*10 Clamp Y 1

35 4041002409 管夹LGB169-A10*10 Clamp Y 1

36 4041001195 软管LGB154-202200 Hose assembly Y 1

37 29220021971 前桥油管 Brake pipe Y 2

38 29220025891 过渡块 Block Y 1

39 4011001279 螺栓GB16674.1-M8*50flZnyc-8.8-480 Screw Y 2

40 4120000066 791手动放水阀LG09-FSF Drain valve Y 1

41 29220025901 护板 Protecting plate Y 1

42 4041002968 软管LGB173-006047 Hose assembly Y 1
